Generators - Classic Line

Includes all GOME generators fed with traditional fuels: satural gas, LPG, diesel. Each customer can choose the generator fed with fuel him prefers.

Heat generator on wheels - MOD "TGS"



Request Information

Send
* denotes mandatory field



Feed

LPG

Diesel

Natural Gas

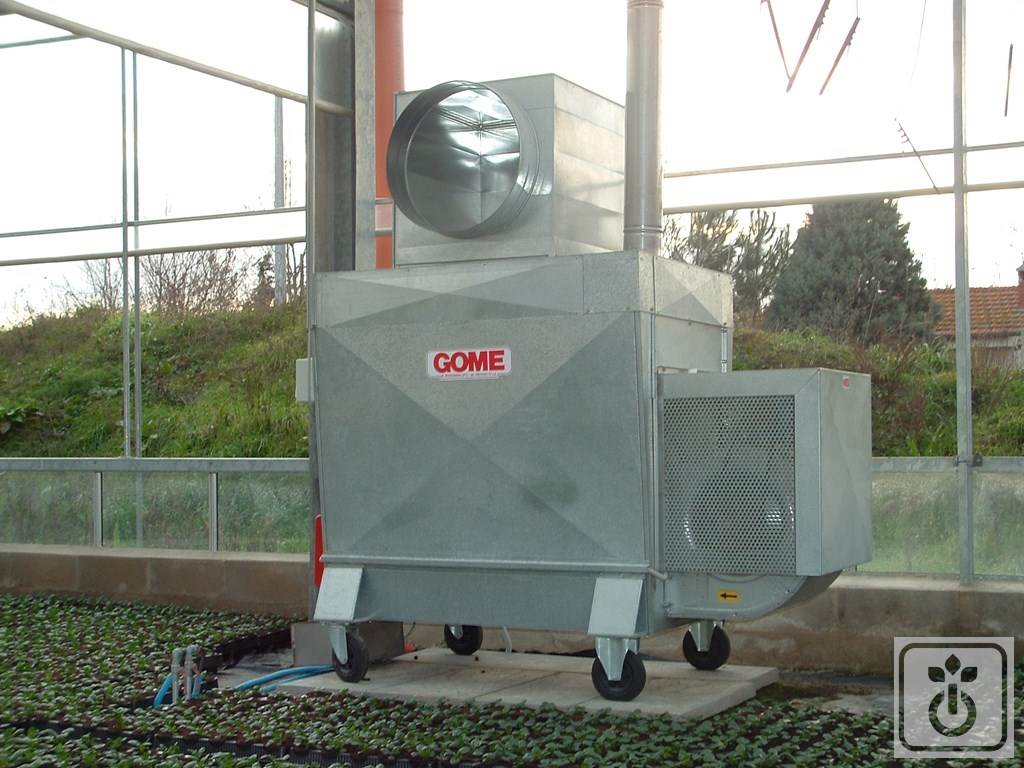

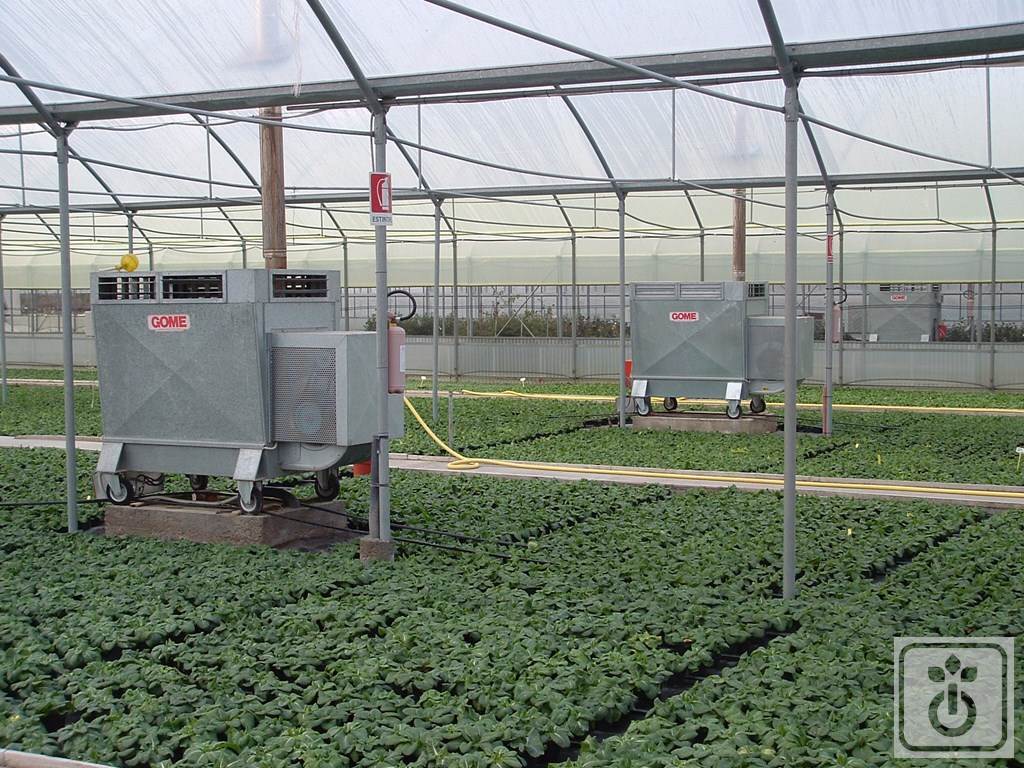

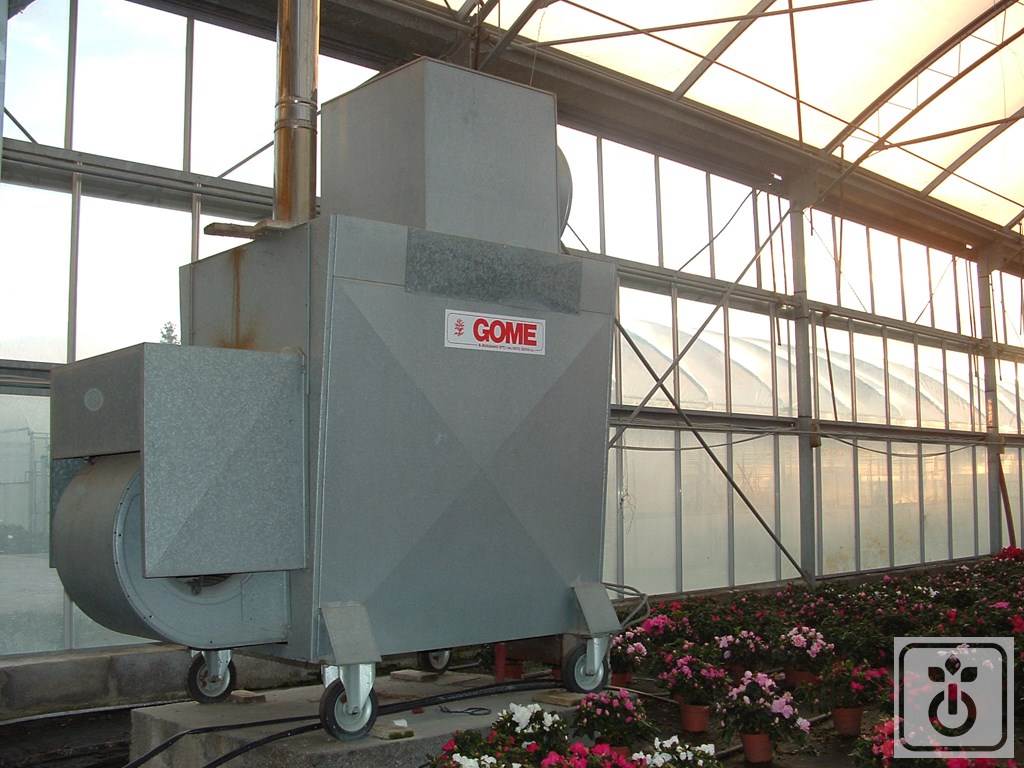

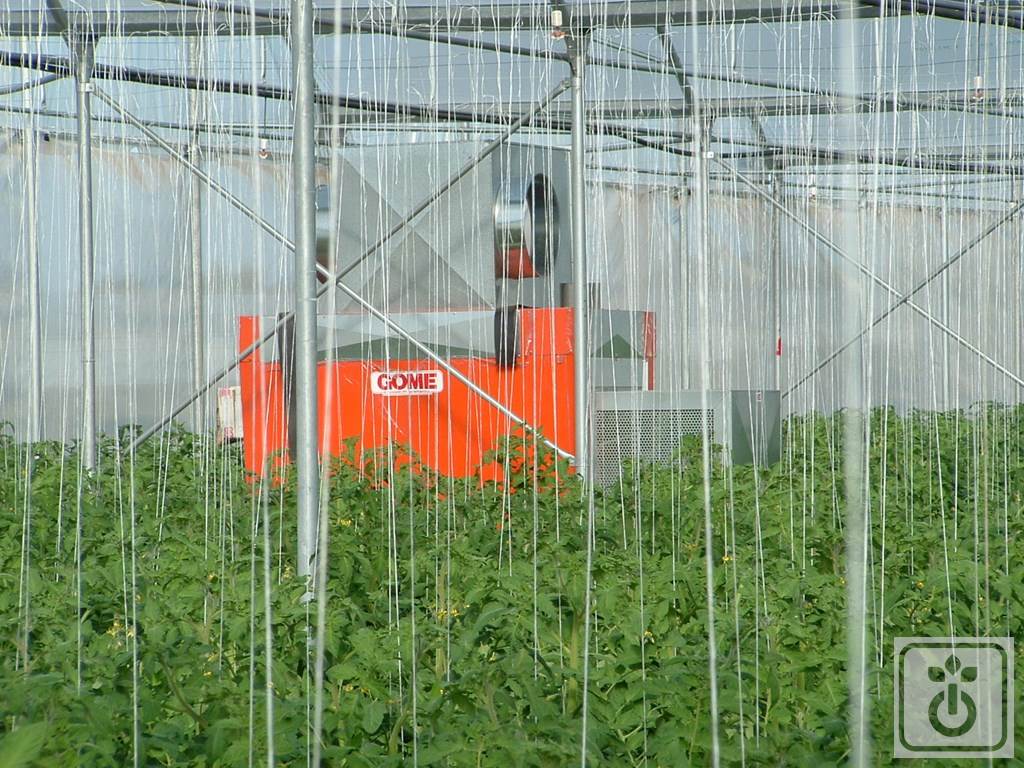

Heat generator on wheels powered fossil fuels: LPG/Natural Gas/Diesel. Available in different powers, it’s ideal for the heating of greenhouses and sheds.


  • Product description
  • Specifications

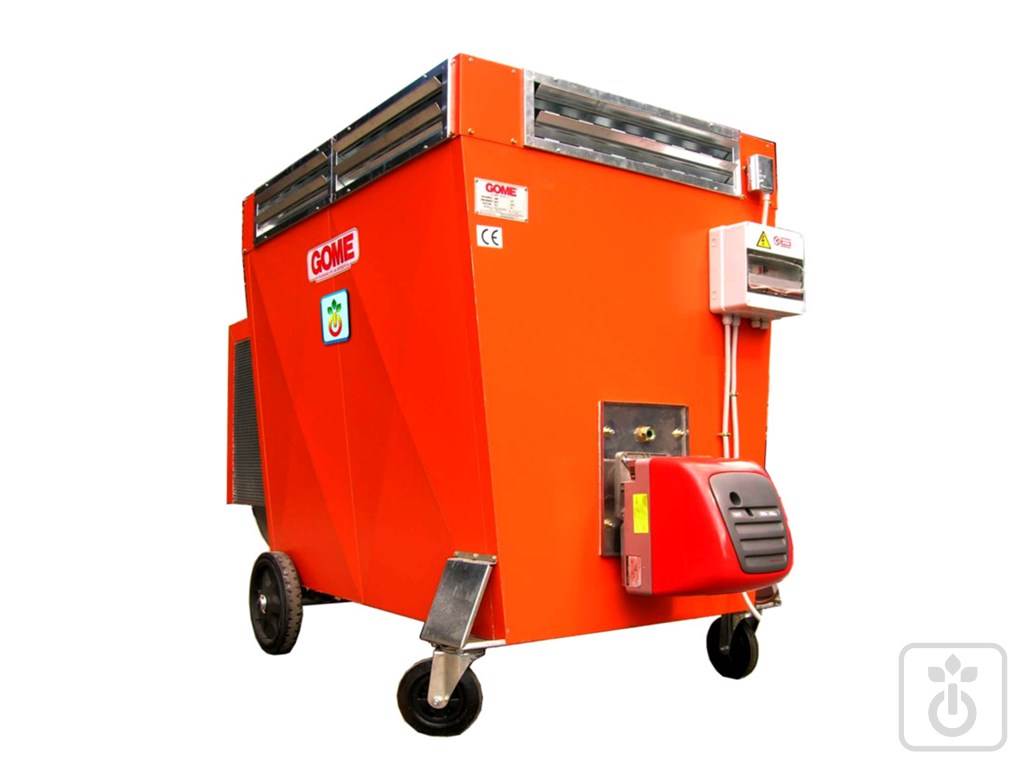

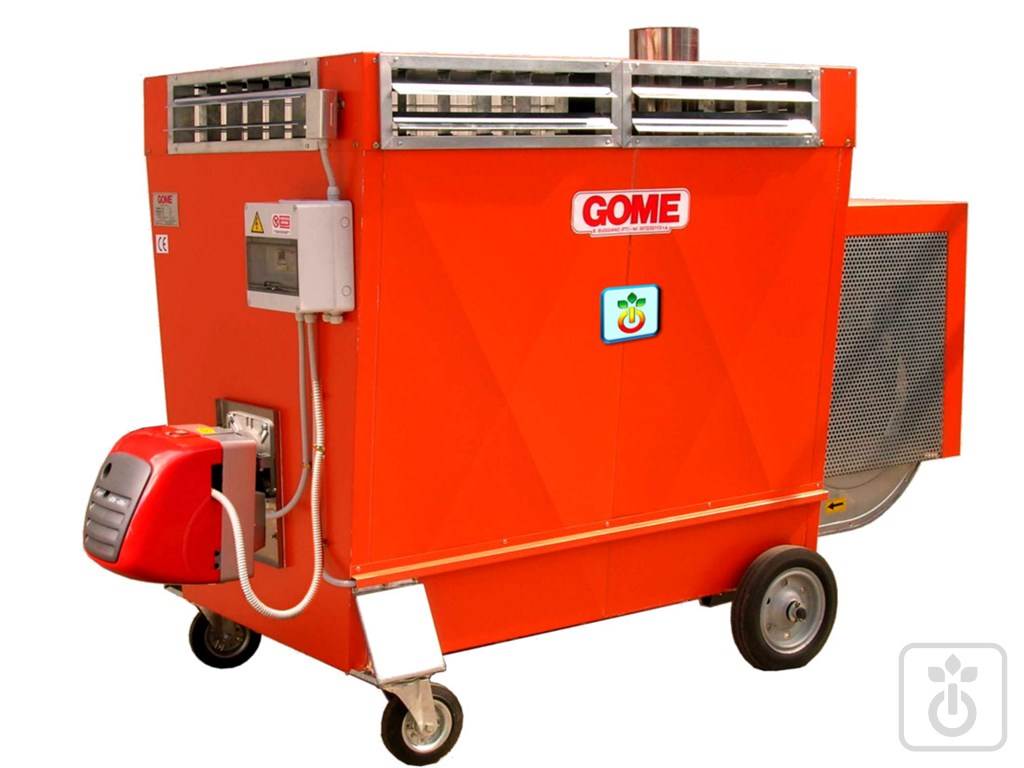

The hot air generator TGS is made on wheels, thanks to special brackets for installation on the ground on pivoting wheels. This type of generator is made in 4 different models for useful power expressed in kilocalories, based on the size of the surface to be heated:

  • TGS 80:  with useful power of 80.000 calories
  • TGS 120: with useful power of 120.000 calories
  • TGS 160: with useful power of 160.000 calories
  • TGS 200: with useful power of 200.000 calories

Hi Tech Resource manifactures also BIOMASS PLANT for HEATING GREENHOUSES. Look at the relevant page!

  • External structure in galvanized pressed plate and printed
  • Combustion chamber in stainless steel, front collector for collection fumes, mass radiant tube section ovoid, rear manifold complete with portholes for inspection and cleaning, all in stainless steel AISI 430
  • Complete perimeter opening for warm air distribution, with rectangular vents adjustable fins for directing the air flow
  • Galvanized centrifugal fan, double inlet, with belt drive trapezoidal complete three-phase asynchronous of electric motor V230/400, with protective casing
  • Electric control phase, degree of protection IP 55 comprising counter, a magnetic circuit breaker for the fan motor, the terminal for connection of the power line, possibility to add the alarm signal in case of failure
  • Bithermostat safety, for starting and stopping the fan
  • Diesel, LPG o natural gas burner fixed on an isolated steel plate, with indicator for the flame control
  • Number two front wheels pivoting and 2 fixed rear wheels



Accessories

Electronic Thermostat

Steel Converse

Safety bithermostat

Flue end

Smoke exhaust pipe

Single air plenum

Double air plenum

Steel Curve


Available also:

  • In galvanized steel
  • With air ducting
