Structures - Greenhouses

GOME greenhouses in the years have been for our customers, synonym of commitment to quality and maximum functionality: today may be the subject of energy conversation to renewable energy sources with high efficiency.

Greenhouse - MOD "N/90"



Request Information

Send
* denotes mandatory field





It’s a modular structure with two semispherical gables fully galvanized. It can withstand accidental loads greater than those of the tunnels.


  • Product description
  • Specifications

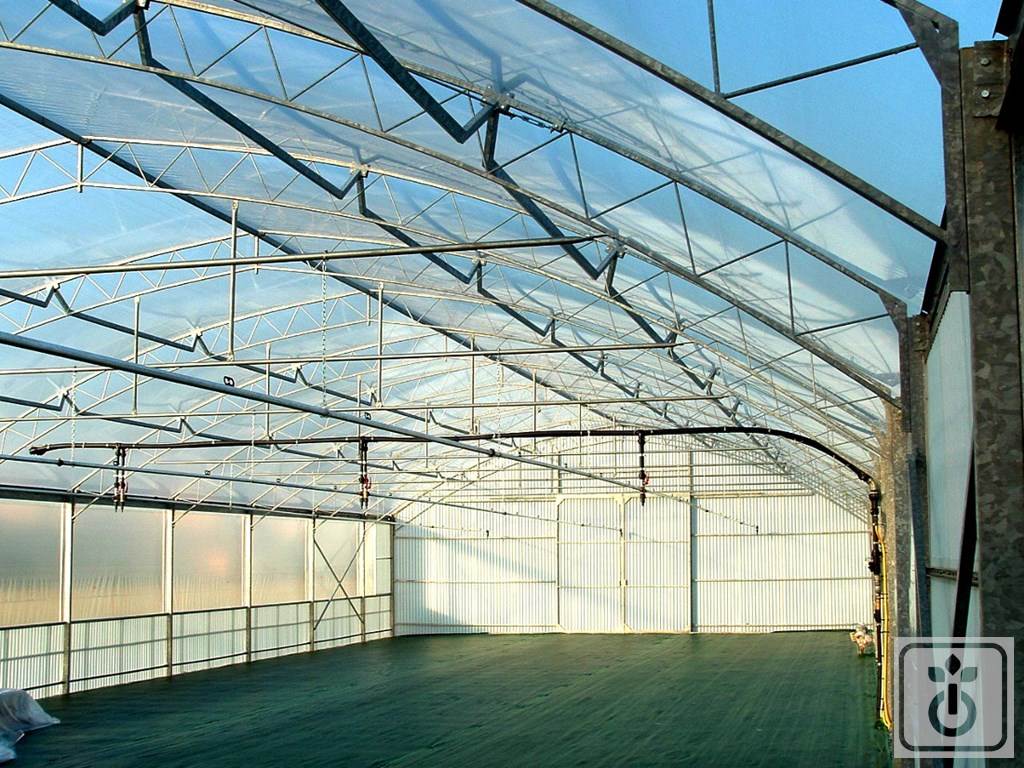

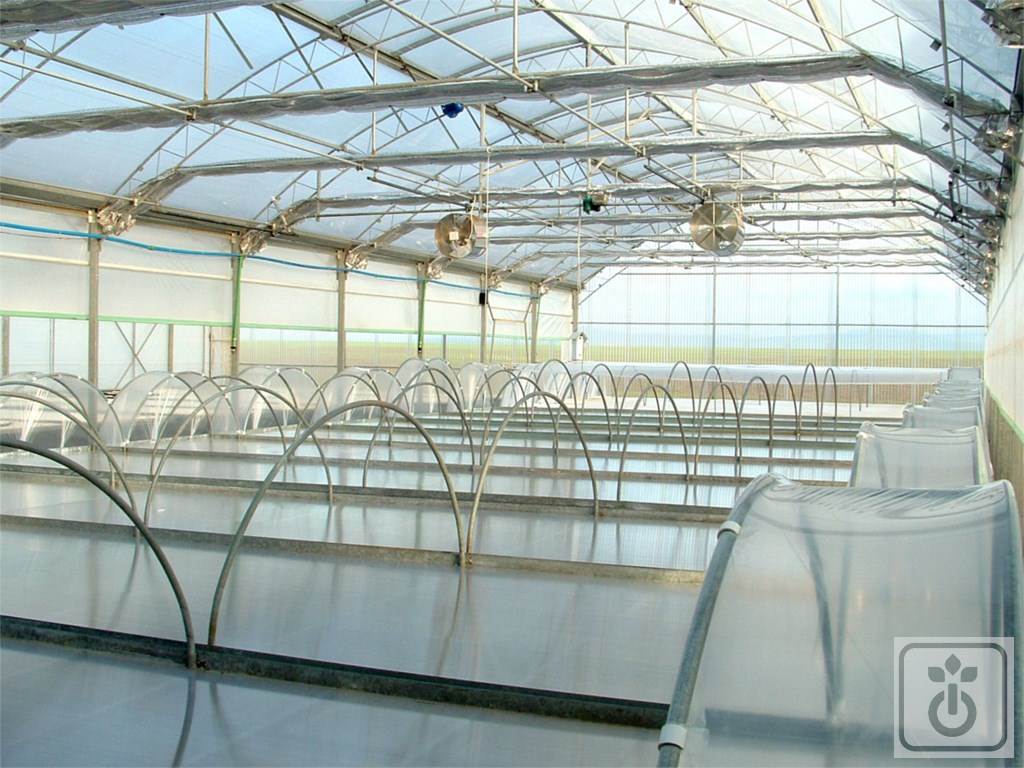

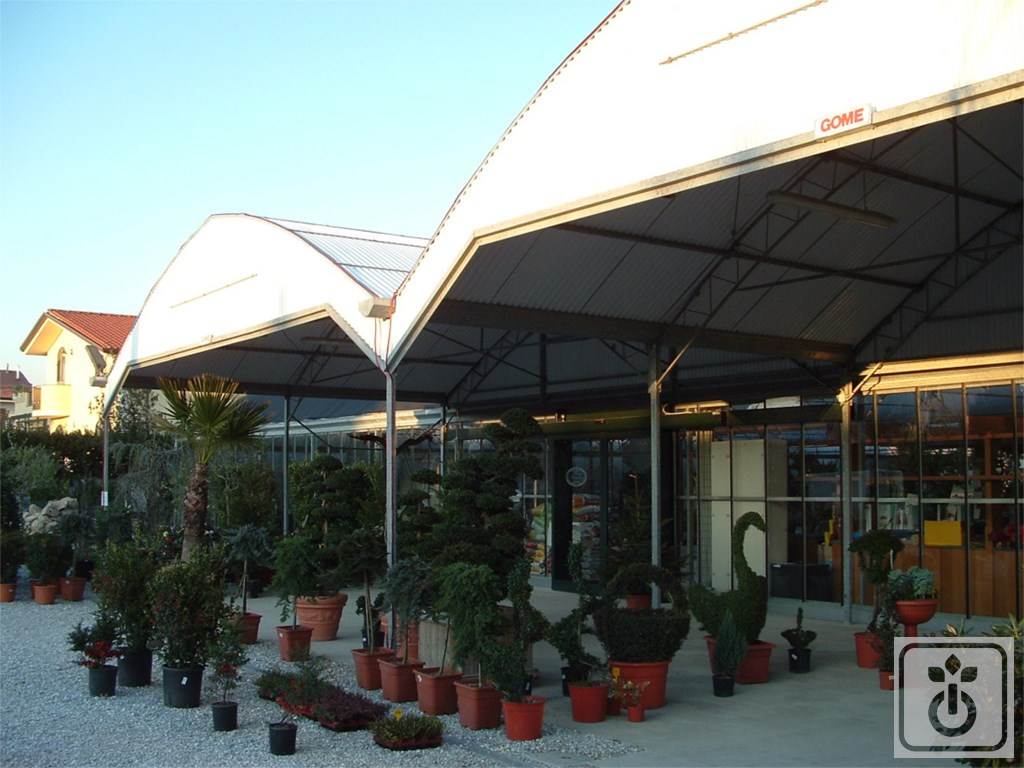

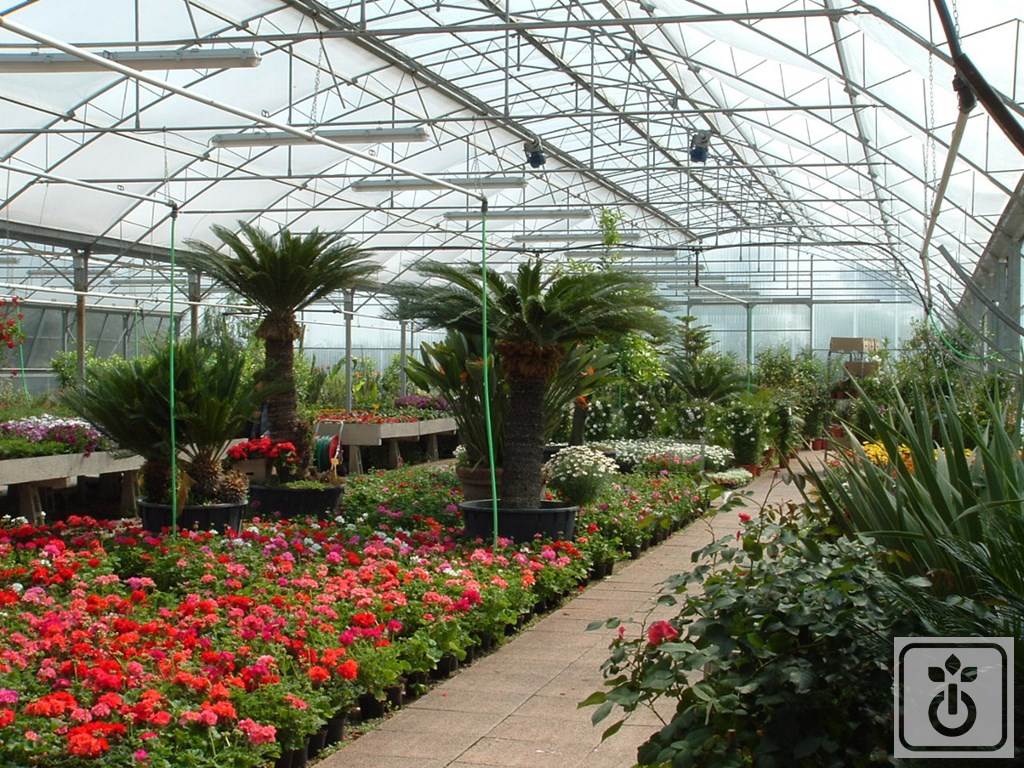

The greenhouse model N/90 is a modular structure with two semispherical gables fully galvanized. The variety of sizes, accessories and types of coverage makes it a multipurpose greenhouse suitable for multiple uses for protected crops: horticultural industry, garden center and  potting, parking and delivery of plants locals.

The greenhouse’s structural components are calculated and verified in such a way to withstand accidental loads greater than those of the tunnels.





Types of coverage

  • Plastic film

The film is stretched easily through special tend-tarp tubes properly positioned in the roof channels

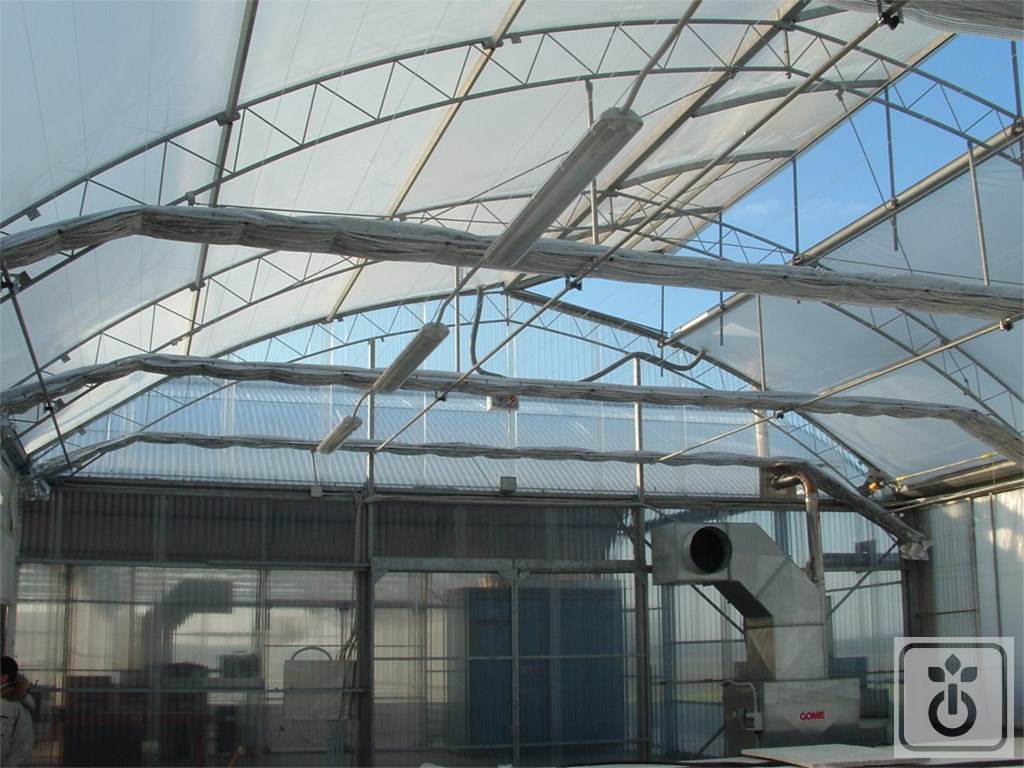

  • Double plastic film

Through the blowing of air between the two tarp by means of an electric blower, is generated the tension of the film itself and simultaneously it produces an effective insulation between the exterior and the interior of the greenhouse

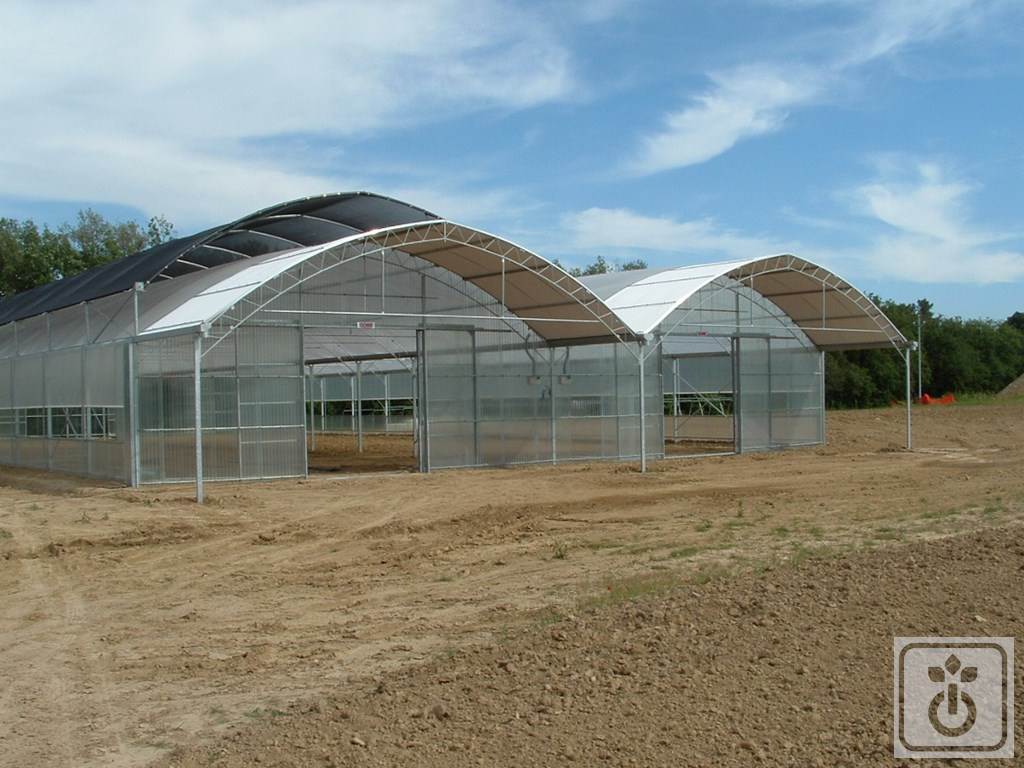

  • Shadow-net

The shadow-net in polyethylene (BLACK, GREEN and WHITE), with various degrees of shading, is secured with tend-tarp tubes properly positioned in the roof channels

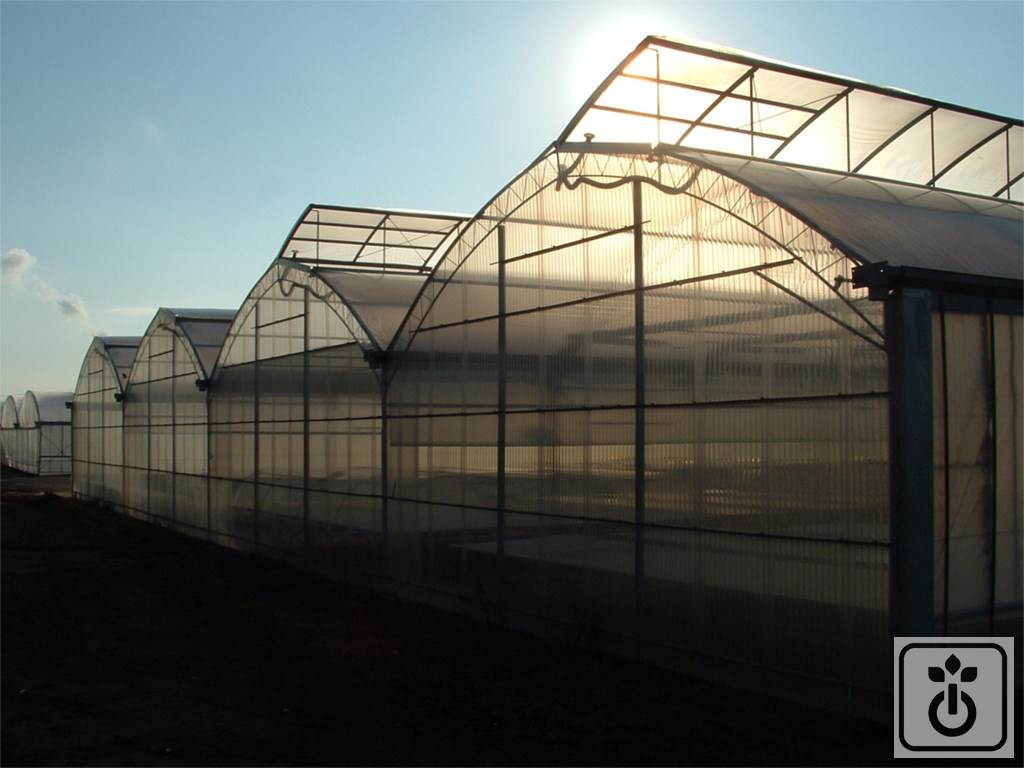

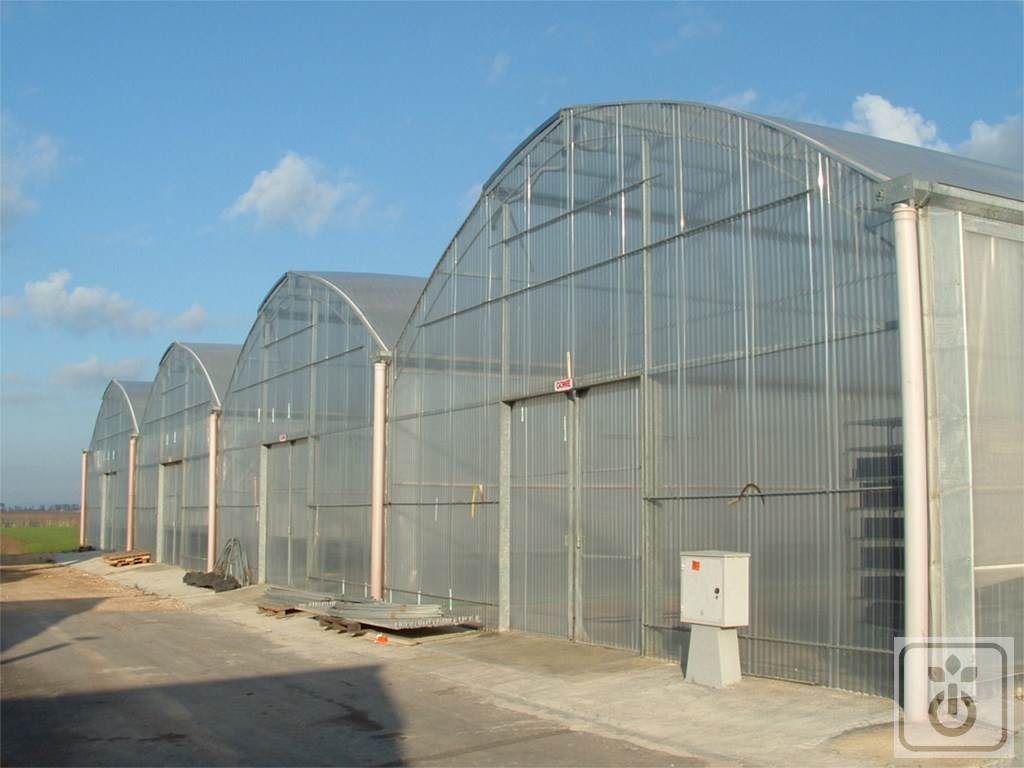

  • Corrugated plastic

Strenght and wear resistence are the main features of this coverage accompained by special anchoring systems and air adn water isolation seals


Accessories

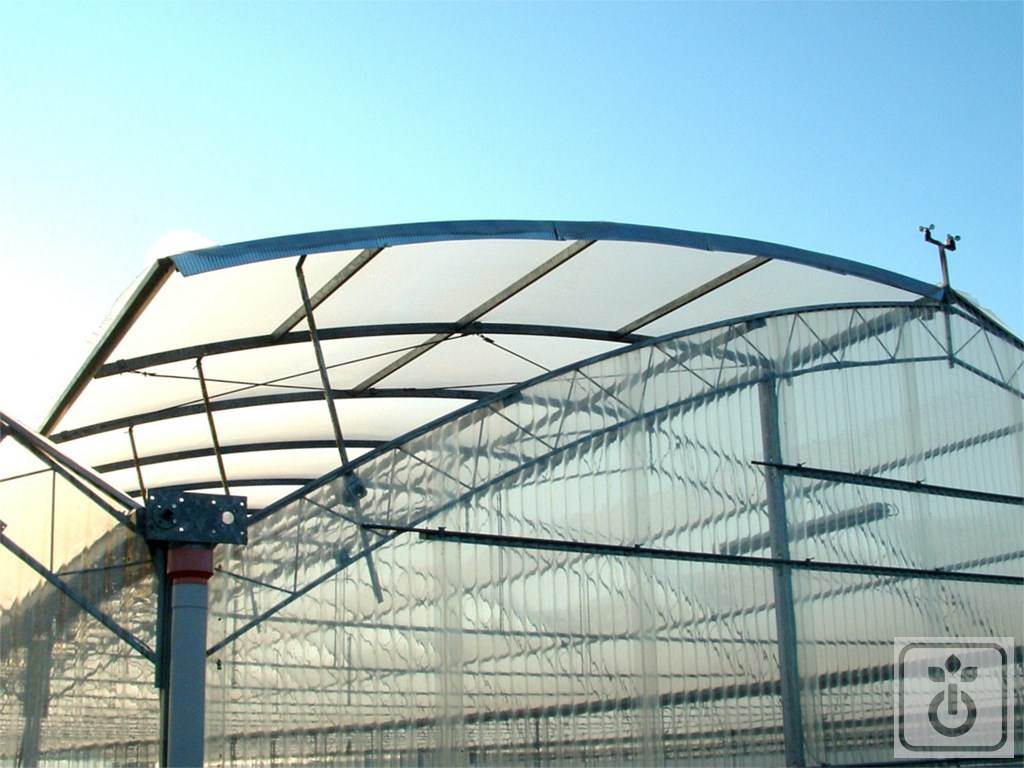

  • Continuous doors model “Seagull wing”

Allow ventilation and the air exchange into the greenhouse

  • Continuous doors with 1 cage (about 2 mt.)

Arranged for the plugging with polyethylene plastic film or double plastic film inflated

  • Continuous doors with 1 or 2 cages

Arranged for the plugging with corrugated plastic

  • Side openings bottom/top

Type of side or headboard  areation with winding of the plastic film  from the bottom to the top with the possibility of automation with electric motor. On demand it’s possible to create double openings from the bottom to the top in indipendent functioning

  • Side openings top/bottom

Particularly suitable for the areation in the upper part of the side panel, in order to avoid harmful flows for specific types of crops. Everything is automated by electric motor

  • Connections between the arches

Anticondensation and lowed type (on demand)

  • Side panels and interior divisions

Entirely infilled of corrugated plastic

  • Central Pillars

Can have a variable inter-axis from 6 mt. to 9 mt. By the use of lintels

  • Plugging of headboards

Predisposition of the structure to the plastic film or to the corrugated plastic including sliding doors with one or two cages

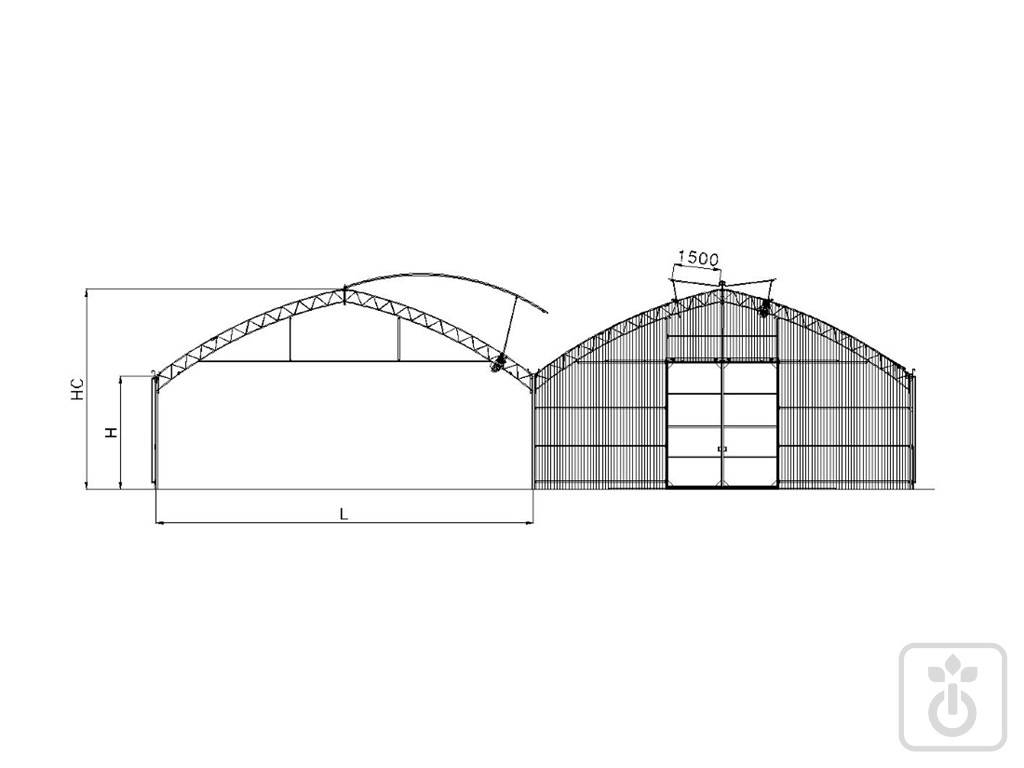

  L (mt)  H palo (mt)  H colmo (mt)  P (mt)
N/90 mt 8
8,00  2,30/2,70/3,00/3,50/4,00 H+1,80  1,50/3,00
N/90 mt 9 9,00  2,30/2,70/3,00/3,50/4,00  H+2,00  1,50/3,00
N/90 mt 10  10,00  2,30/2,70/3,00/3,50/4,00  H+2,20  1,50/3,00
N/90 mt 11  11,00  2,30/2,70/3,00/3,50/4,00  H+2,30  1,50/3,00
N/90 mt 12  12,00  2,30/2,70/3,00/3,50/4,00  H+2,40  1,50/3,00
