Structures - Greenhouses

GOME greenhouses in the years have been for our customers, synonym of commitment to quality and maximum functionality: today may be the subject of energy conversation to renewable energy sources with high efficiency.

Tunnel - MOD "TAG/60/B"



Request Information

Send
* denotes mandatory field



TAG



This tunnel is an arched structure completely galvanized, wich combines good mechanical resistance to atmospheric agents with the advantage of low costs.


  • Product description
  • Specifications

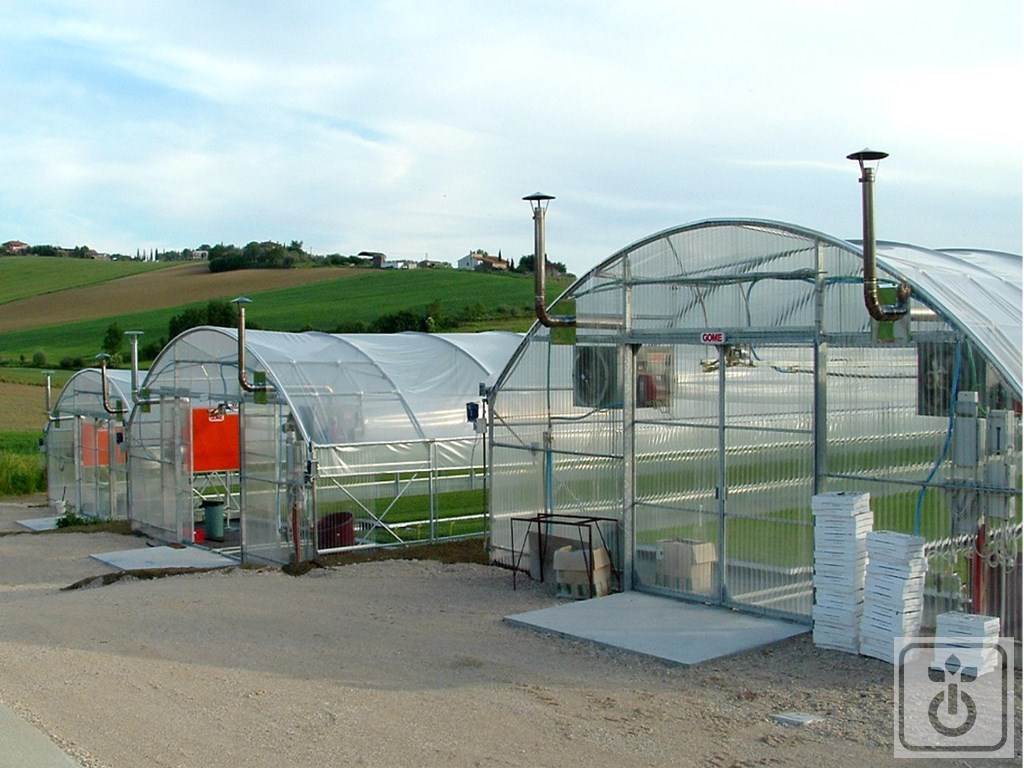

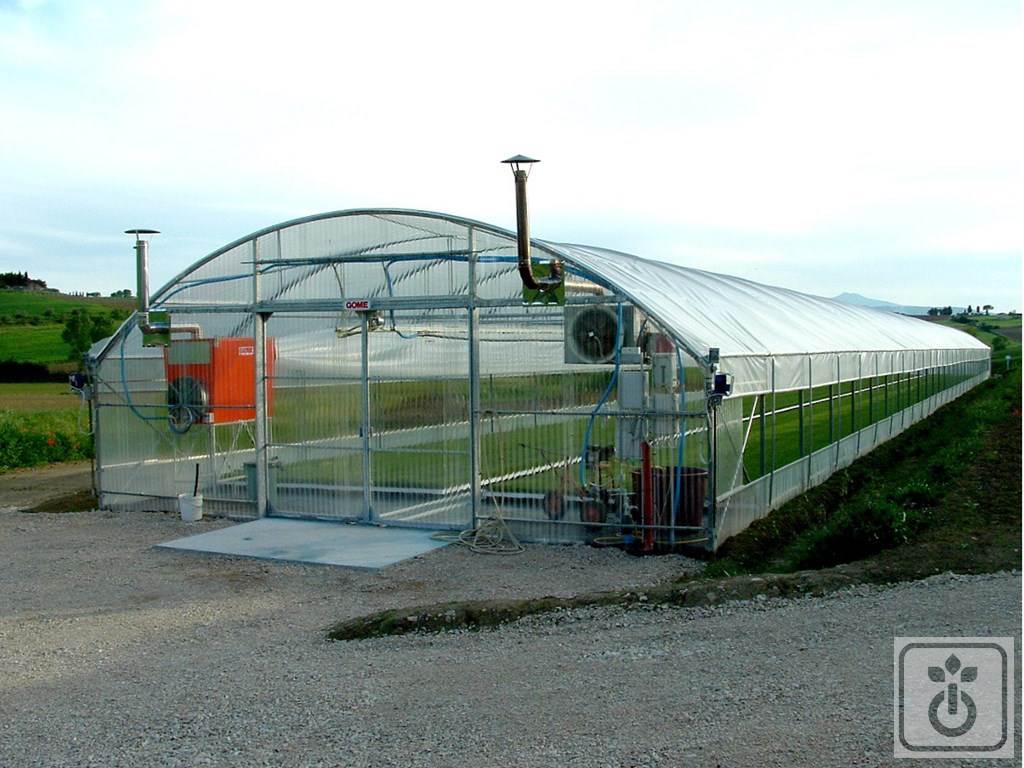

The TUNNEL TAG/60/B is an arched structure completely galvanized, wich combines good mechanical resistance to atmospheric agents with the advantage of low costs.

The variety of sizes and accessories allows its use for different types of crops (horticulture and floriculture, nursery industry, shade plants, etc.).

Types of coverage

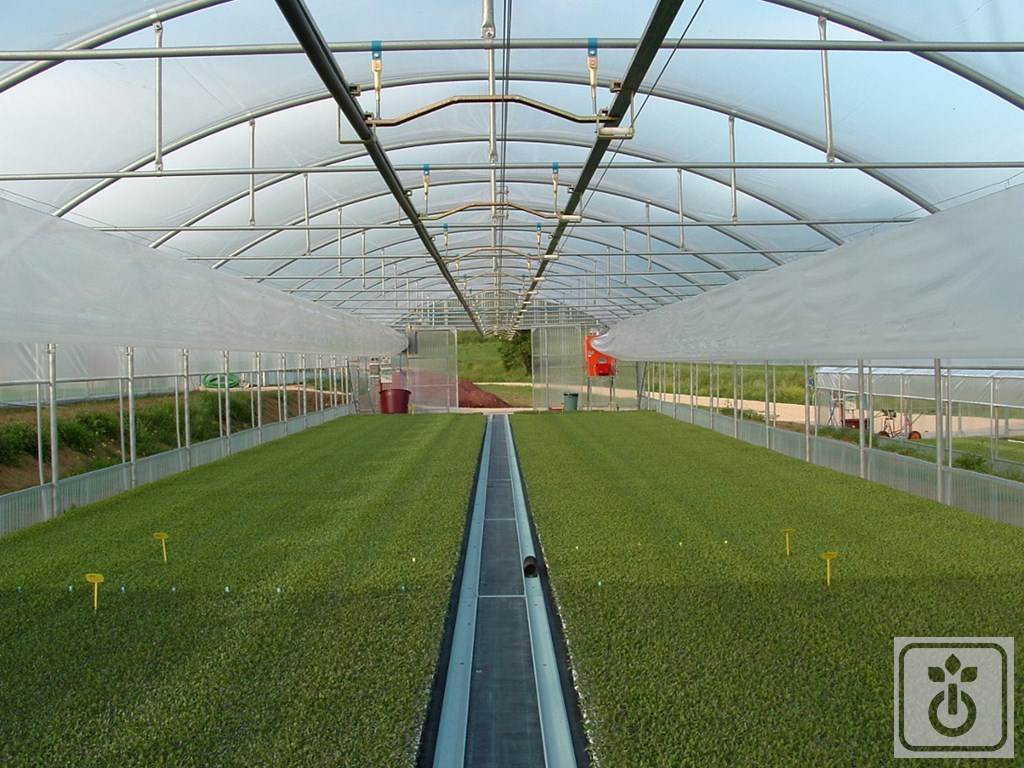

  • Plastic film

The film is stretched easily through special tend-tarp tubes properly positioned in the roof channels

  • PVC tarps

Through the use of tarps suitably designed to cover the barns we’re obtained various solutions of colors and type of anchorage to the structure

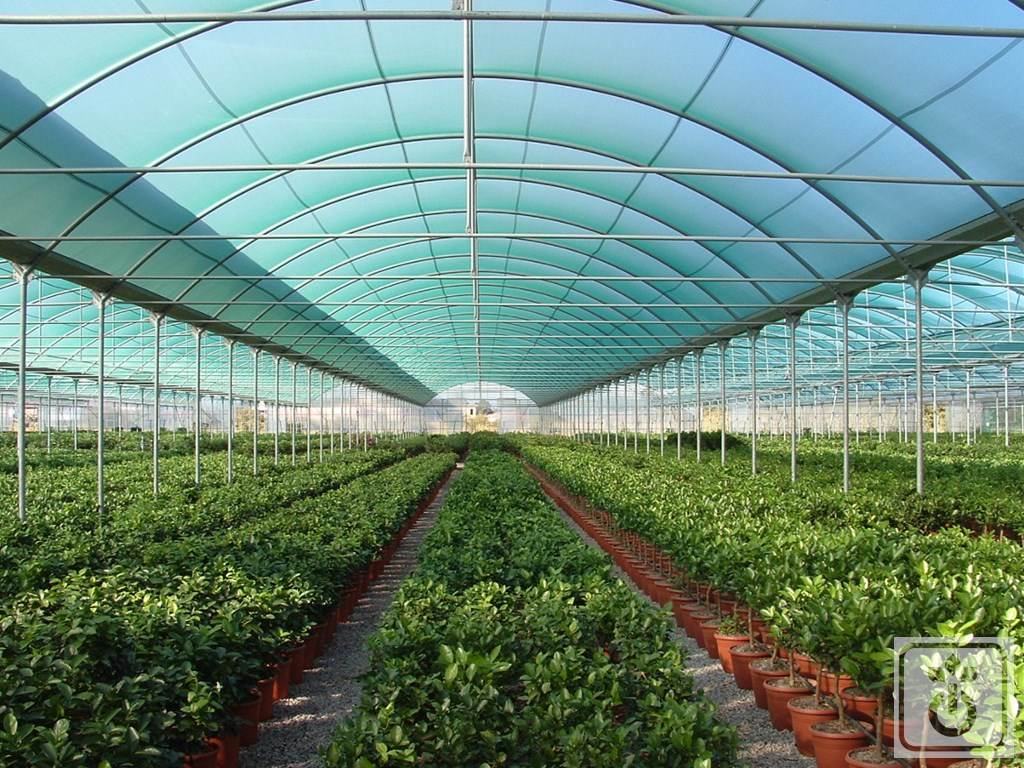

  • Shadow-net

The shadow-net in polyethylene (BLACK, GREEN and WHITE), with various degrees of shading, is secured with tend-tarp tubes properly positioned in the roof channels

  •  Shadow-net and plastic film

With wider canals and double tend-tarp lines it’s possible to fix independently plastic film and shadow-net on the same structure







Accessories

  • Water collection channels

The site and central channel are cold-bent and then hot dip galvanized

  • Plugging of headboards

Predisposition of the structure to the plastic film or to the corrugated plastic including sliding doors with one or two cages

  • Baseboard in corrugated plastic

At any opening it’s possible to place the anti-aphid net properly fixed

  • Side openings bottom/top

Type of side or headboard  areation with winding of the plastic film  from the bottom to the top with the possibility of automation with electric motor. On demand it’s possible to create double openings from the bottom to the top in indipendent functioning

  •  Side openings top/bottom

Particularly suitable for the areation in the upper part of the side panel, in order to avoid harmful flows for specific types of crops

  •  Airing

“Gull wing” flap doors allow ventilation and air exchange in the greenhouse



  Ø arco (mm)  L (mt)  H palo (mt)  H colmo (mt)  P (mt)
TAG/60/B mt 7   60,00 7,00 2,30/2,70/3,00 3,70/4,10/4,40  1,50/2,00/2,50
TAG/60/B mt 8  60,00  8,00  2,30/2,70/3,00  3,90/4,30/4,60  1,50/2,00/2,50
TAG/60/B mt 8,5  60,00  8,50  2,30/2,70/3,00 4,10/4,50/4,80 1,50/2,00/2,50
TAG/60/B mt 9  60,00  9,00  2,30/2,70/3,00  4,20/4,60/4,90  1,50/2,00/2,50
