GOME dryers for tobacco can be equipped inside them with containers or with frames.


  • Product description
  • Specifications

Dryers brand GOME for tobacco curing can be equipped or with containers (with pins, combs or custom) or with frames

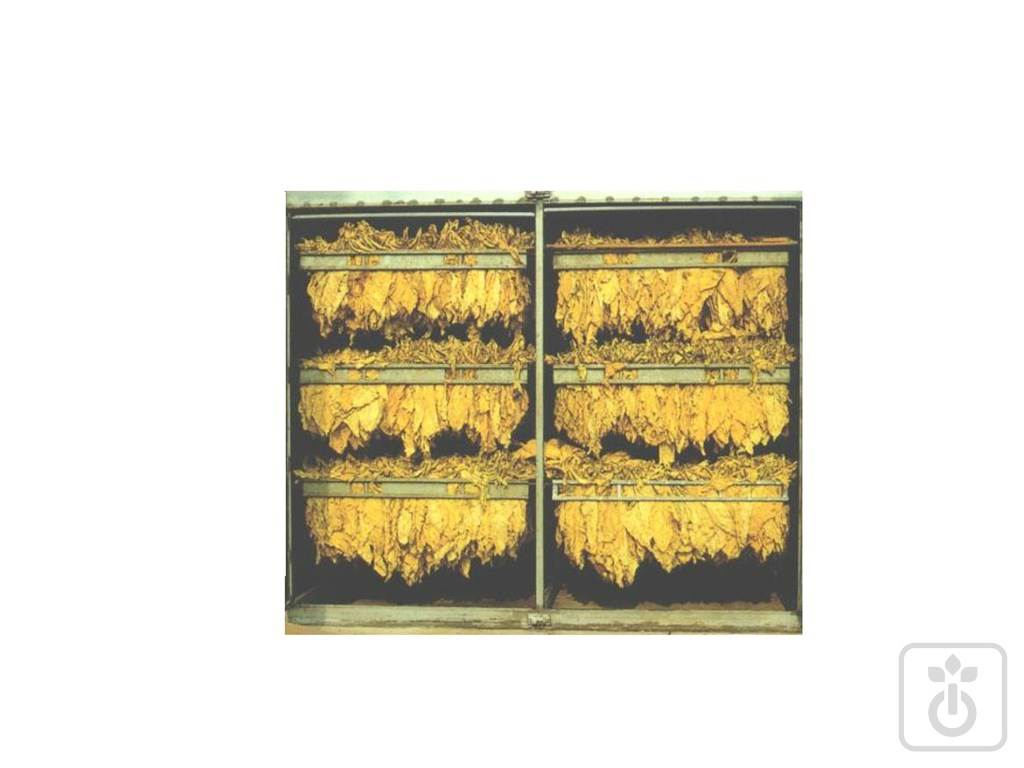

The functionality of frames is that they allow to let it breathe the air more evenly between the leaves of tobacco which, attached to these pins, are able to remove more regularly the quantity of water they contain.
Hi Tech Resource produces frames in different size depending on the needs of drying of each single customer and according to the quantity to be dried. It’s also possible create custom frames.




Also looks all the machinery for the CAR OF TOBACCO.

ME



Specifiche tecniche

Modello

Telaino GOME Hi Tech Resource

Dimensioni

1,455x0,411x0,125

Capacità di tabacco

circa 40 kg

Caratteristiche

N° 80 spilli

Finitura

Zincatura a caldo

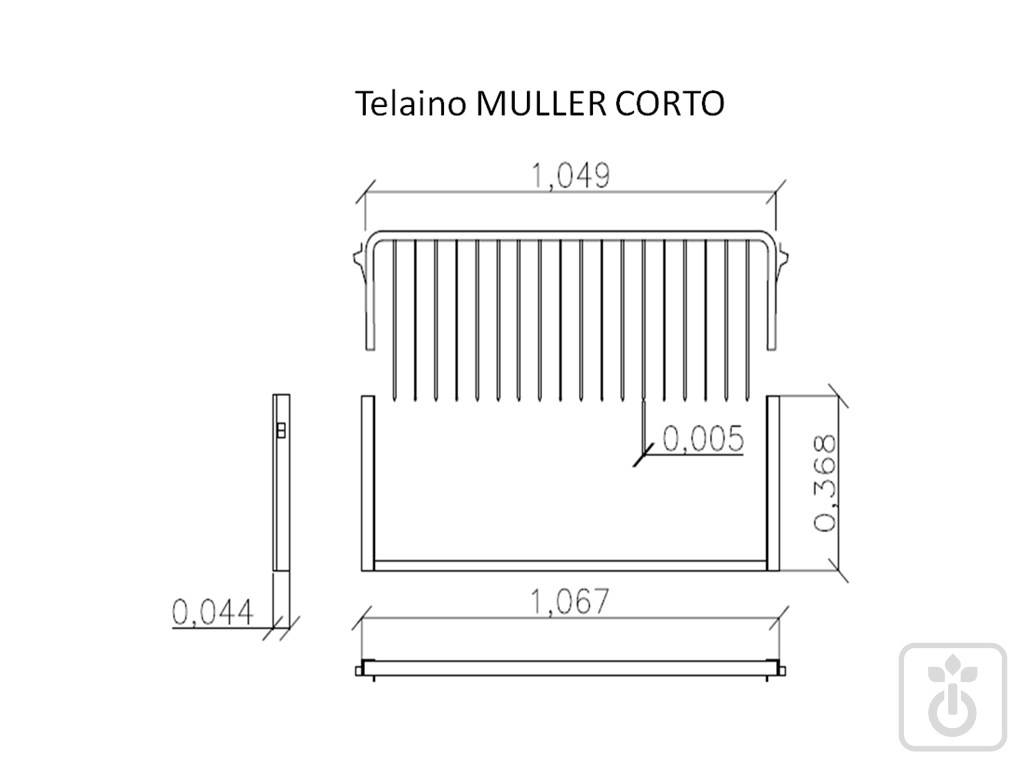

Telaino Muller corto

Specifiche tecniche

Modello

Telaino Muller corto

Dimensioni

1,067x0,37x0,044

Capacità di tabacco

circa 35 kg

Caratteristiche

Molla di fermo in acciaio temprato

Finitura

Zincatura a caldo







Telaino Muller lungo




Specifiche tecniche

Modello

Telaino Muller lungo

Dimensioni

1,067x0,37x0,055

Capacità di tabacco

circa 45 kg

Caratteristiche

Molla di fermo in acciaio temprato

Finitura

Zincatura a caldo

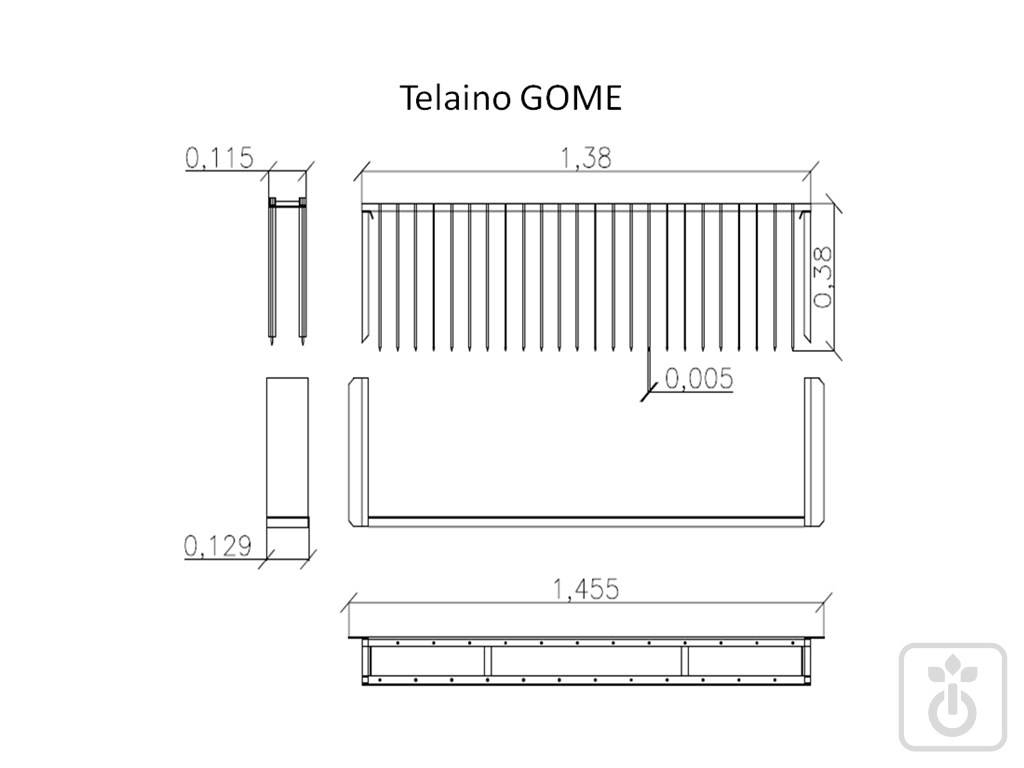

GOME frames

Technical specifications

  Modello GOME
Model GOME
Dimensioni (mt)
Dimensions
 1,455x0,411x0,125
Capacità (kg)
Capacity
Circa 40 kg
About 40 kg
Caratteristiche
Features
N° 80 spilli
N° 80 pins
Finitura
Finishing
Zincatura a caldo
Hot-dip galvanized


MULLER short frames

Technical specifications



Specifiche tecniche

Modello

Telaino GOME Hi Tech Resource

Dimensioni

1,455x0,411x0,125

Capacità di tabacco

circa 40 kg

Caratteristiche

N° 80 spilli

Finitura

Zincatura a caldo





Telaino Muller corto

Specifiche tecniche

Modello

Telaino Muller corto

Dimensioni

1,067x0,37x0,044

Capacità di tabacco

circa 35 kg

Caratteristiche

Molla di fermo in acciaio temprato

Finitura

Zincatura a caldo







Telaino Muller lungo




Specifiche tecniche

Modello

Telaino Muller lungo

Dimensioni

1,067x0,37x0,055

Capacità di tabacco

circa 45 kg

Caratteristiche

Molla di fermo in acciaio temprato

Finitura

Zincatura a caldo





  Modello Muller Corto
Model Short Muller
Dimensioni (mt)
Dimensions
 1,067x0,37x0,044
Capacità (kg)
Capacity
Circa 35 kg
About  35 kg
Caratteristiche
Features
Molla di fermo in acciaio temprato
Retainer spring in hardened steel
Finitura
Finishing
Zincatura a caldo
Hot-dip galvanized


MULLER long frames

Technical specifications

  Modello Muller Lungo
Model Long Muller
Dimensioni (mt)
Dimensions
1,067x0,37x0,055
Capacità (kg)
Capacity
Circa 45 kg
About 45 kg
Caratteristiche
Features
Molla di fermo in acciaio temprato
Retainer spring in hardened steel
Finitura
Finishing
Zincatura a caldo
Hot-dip galvanizing










Hi Tech Resource manufactures also customized containers for tobacco
