Dryers - Tobacco - Classic Line

Includes all GOME dryers fed with traditional fuels: satural gas, LPG, diesel. Each customer can choose the burner fed with fuel him prefers.

Dryer for tobacco - MOD "ETN TABACCO"



Request Information




Send
* denotes mandatory field



Feed

LPG

Diesel

Natural Gas

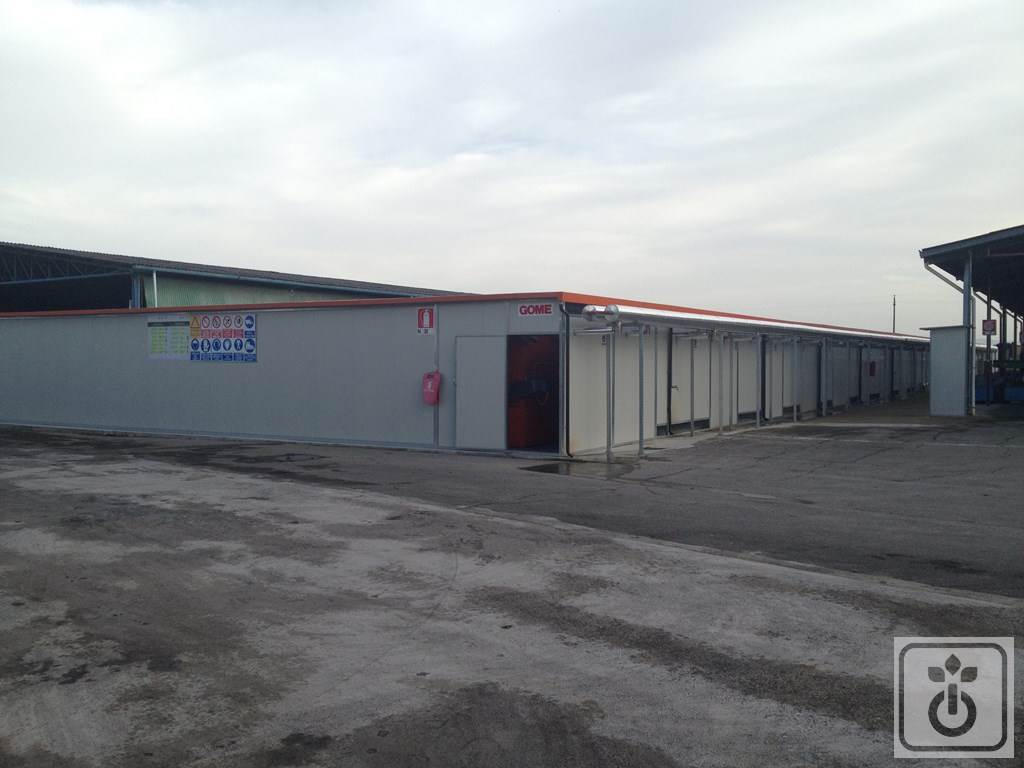

The dryer ETN TABACCO by traditional fuel is of multiple type, useful for those who have to dry large quantities of tobacco.


  • Product description
  • Specifications

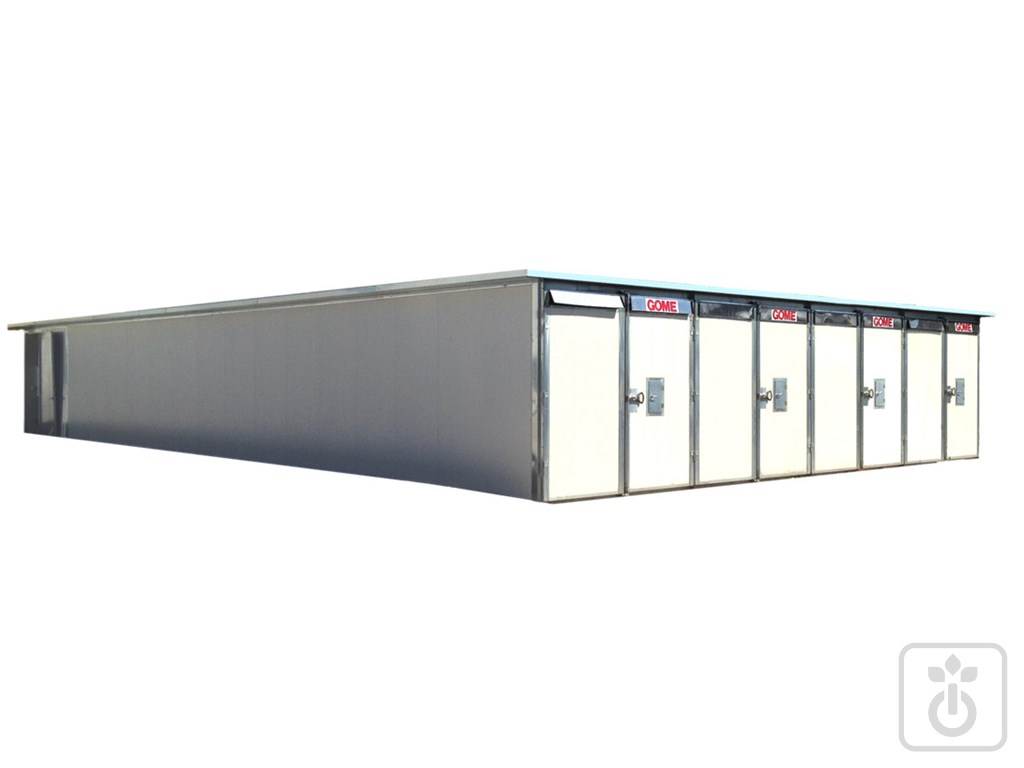

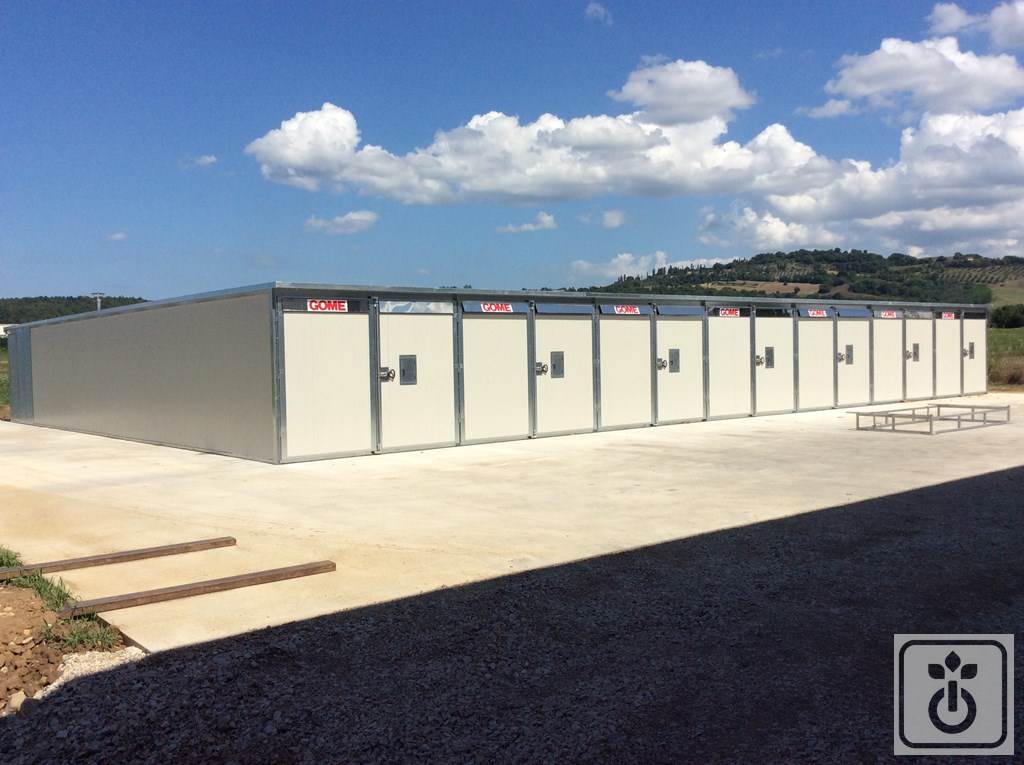

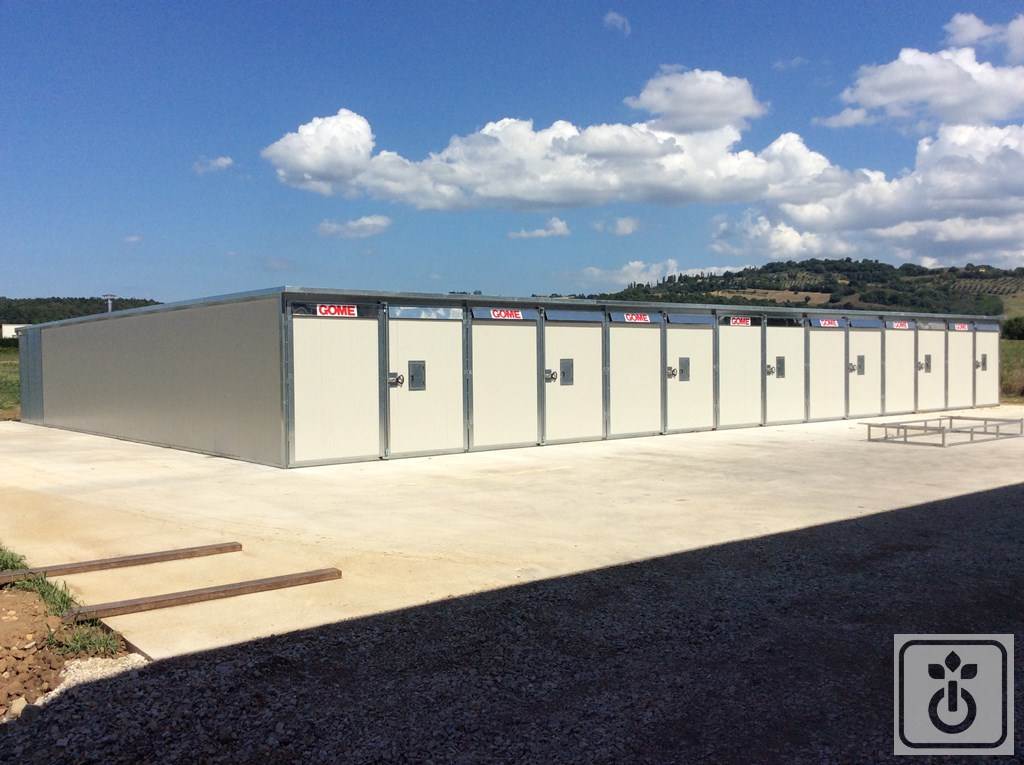

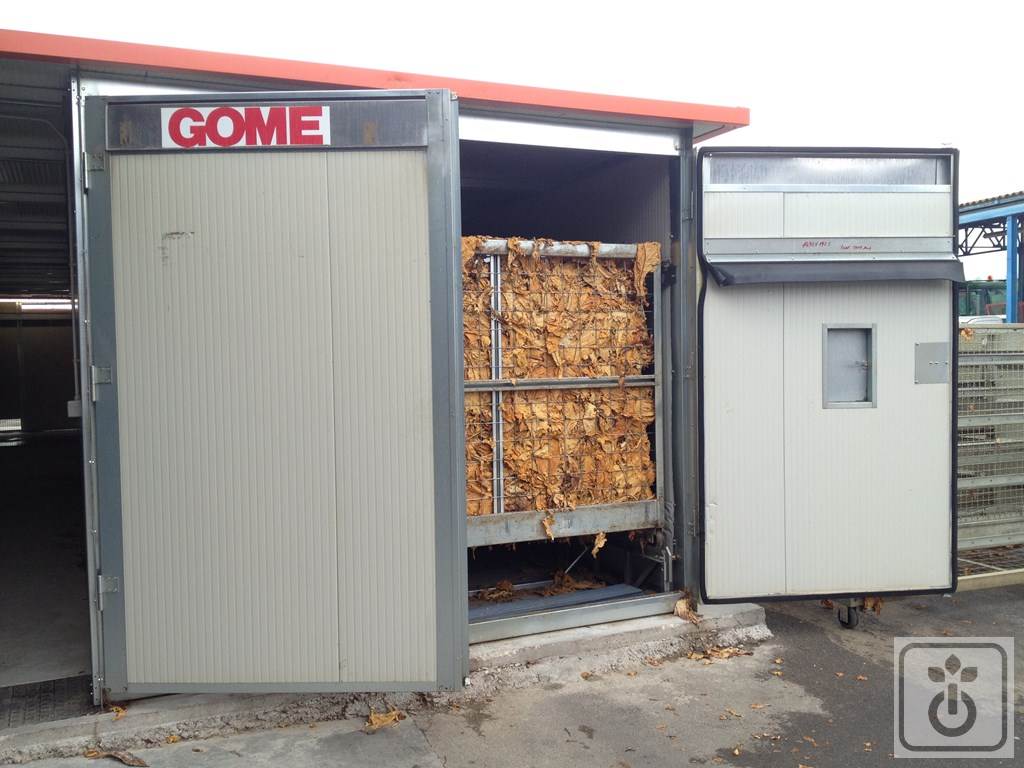

The dryer ETN TABACCO is a dryer at multiple modules powered traditional fuels: LPG/Natural Gas/Diesel. It’s an ideal instrument for those who have to dry large quantities tobacco.

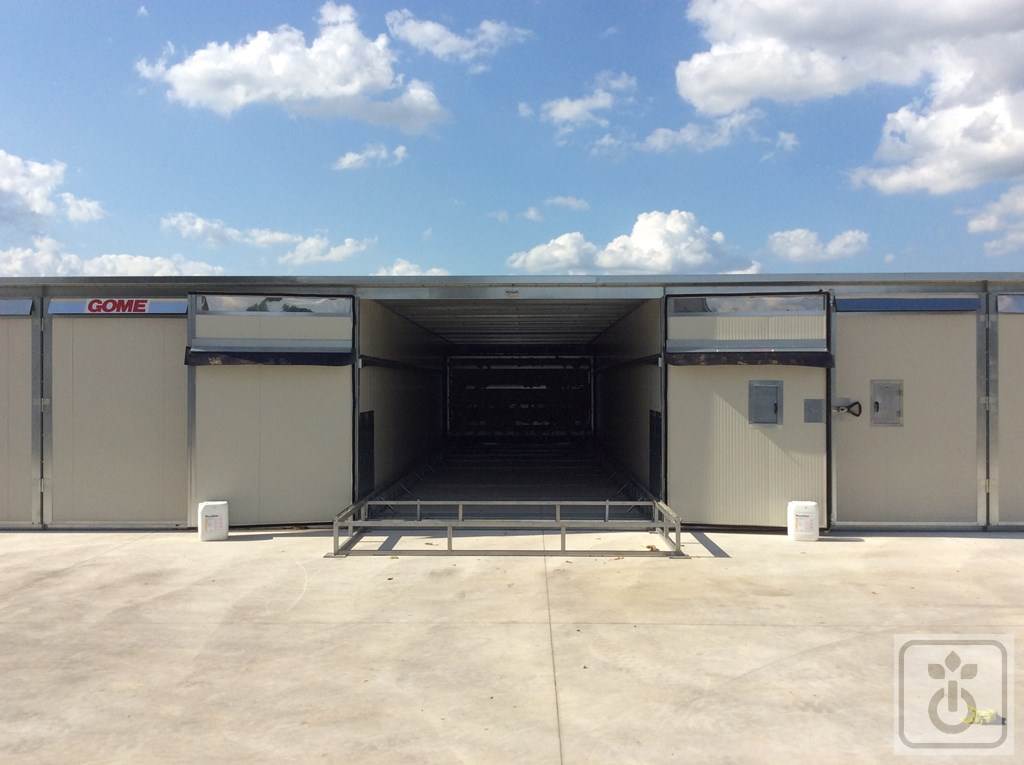

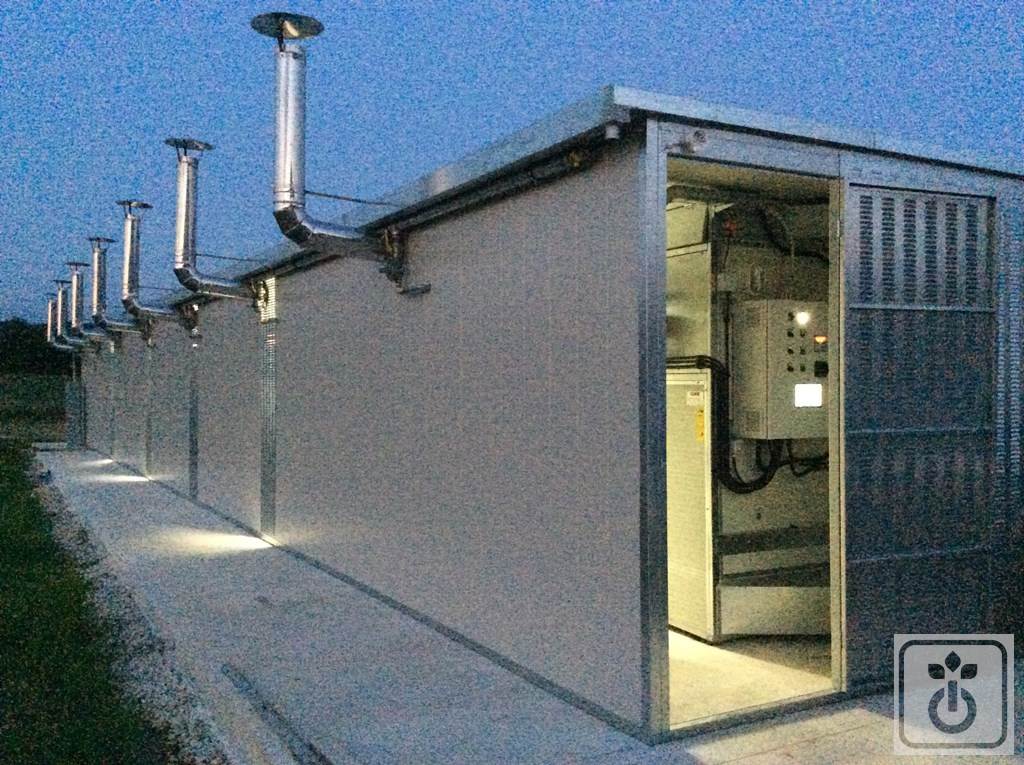

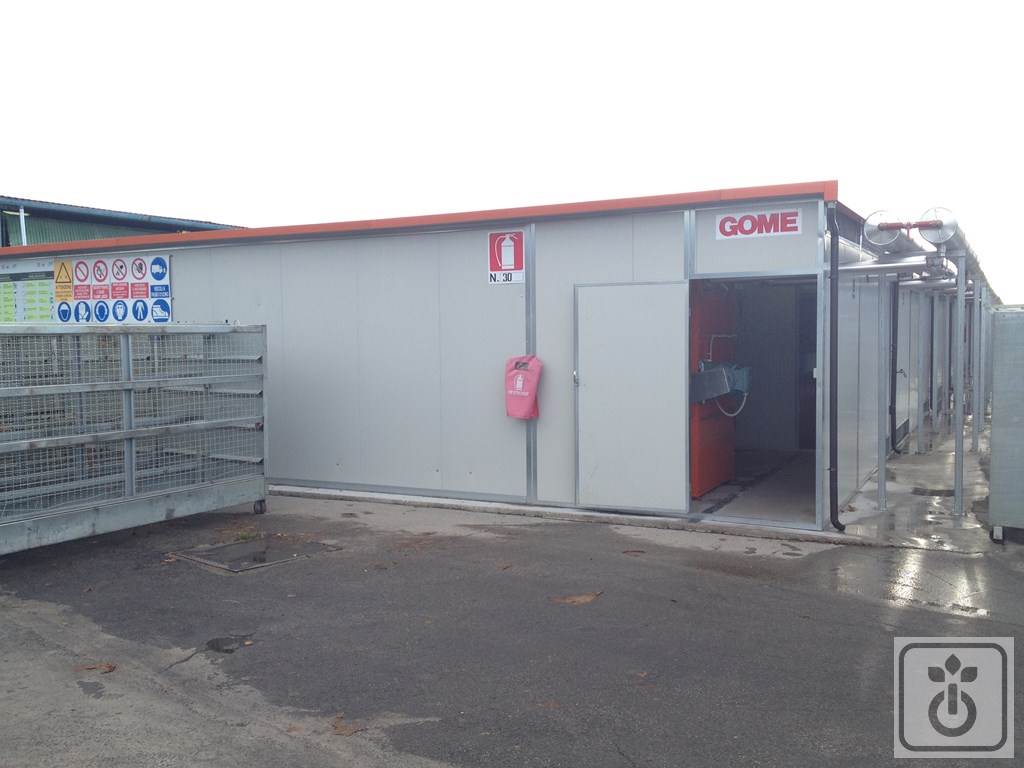

It’s equipped with a door to the corridor of generators with one grilled shutter to allow areation.

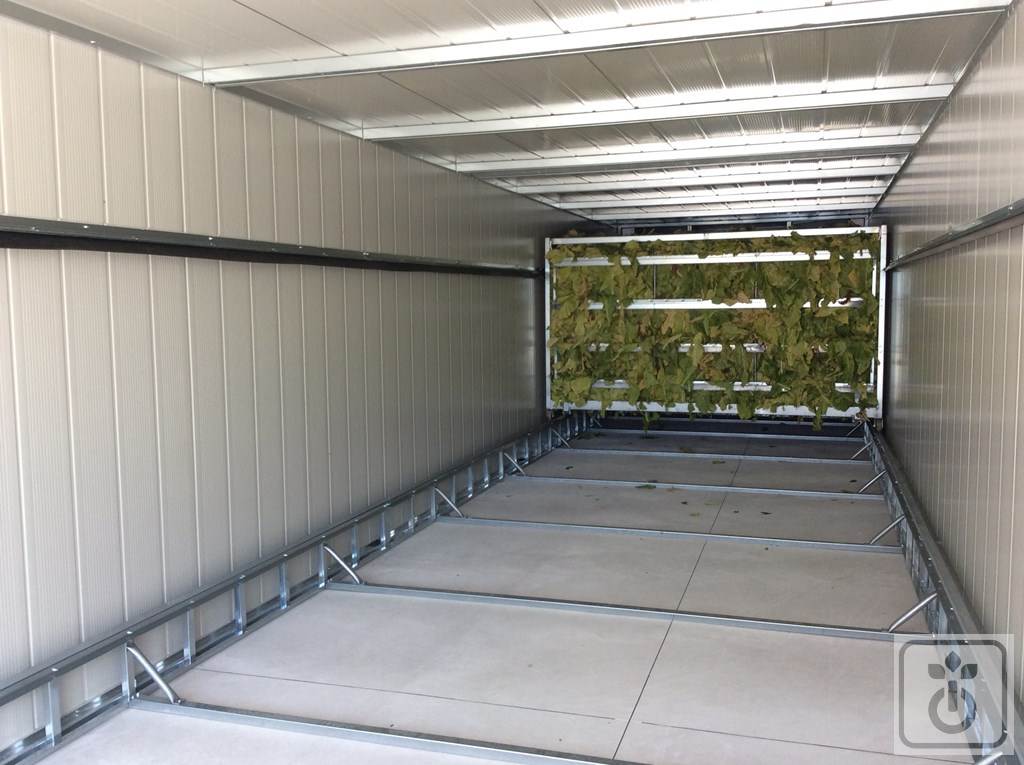

It can be accomplished with input of warm air into the cell from the bottom to the top or with the flow reversal bottom-top/top-bottom.

Each dryer wich make up the group can be accomplished in two different size models: Model G  and Model B:

  • Model G: width 3.14 m;
  • Model B: width 3.49 m.

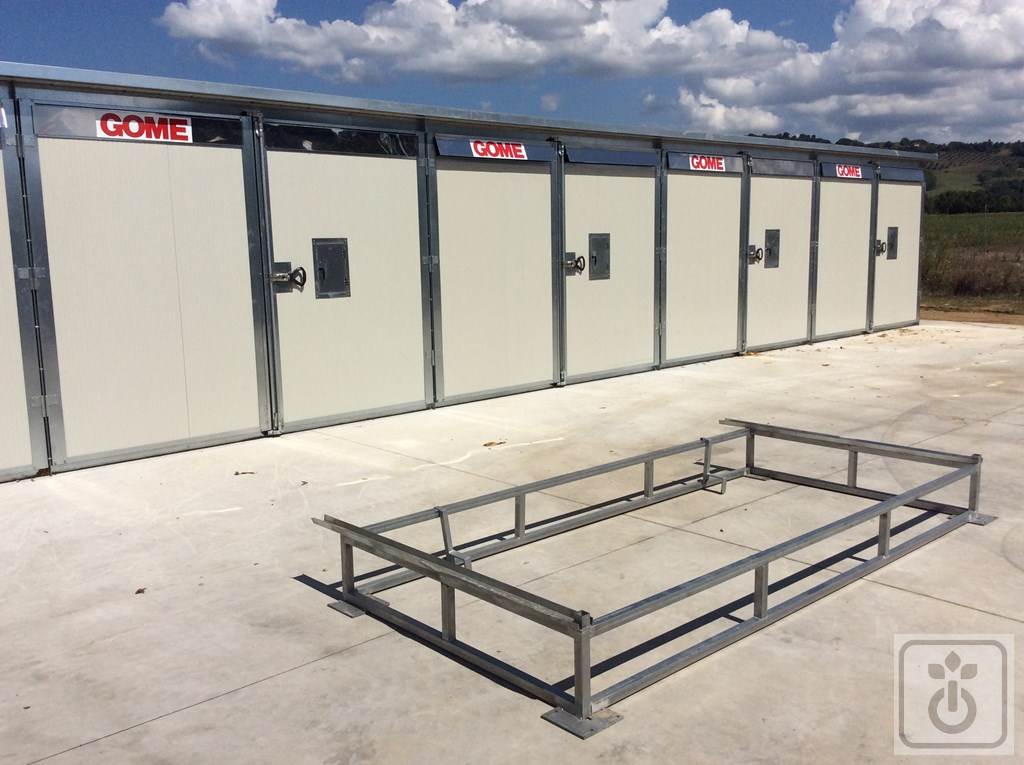

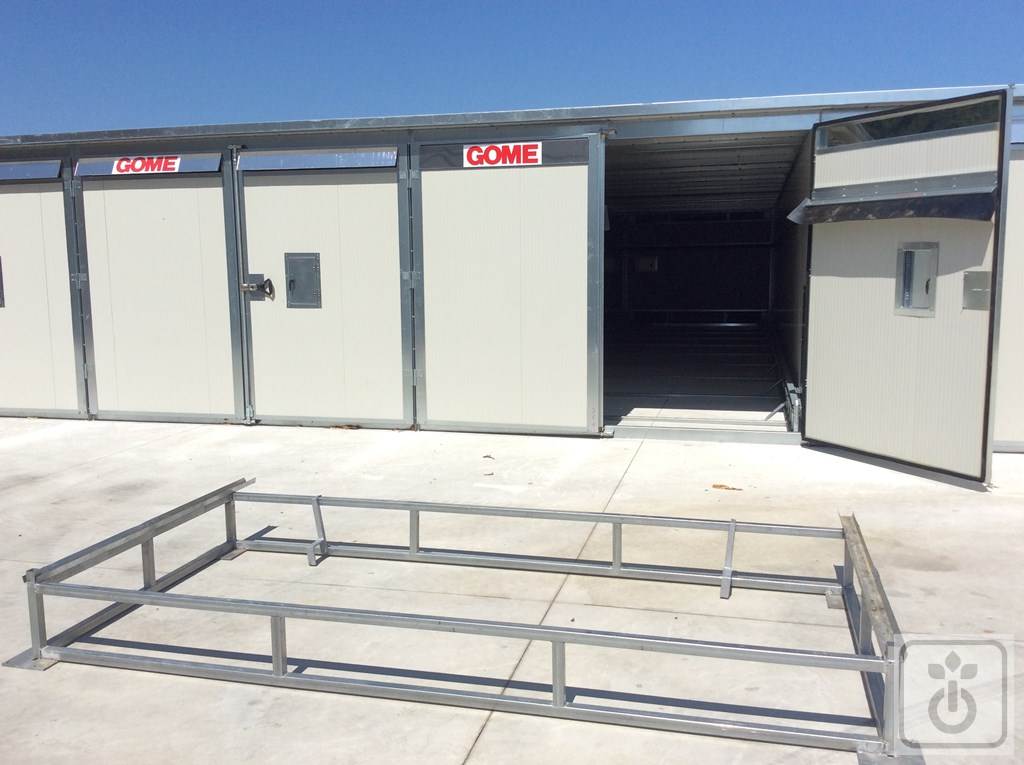

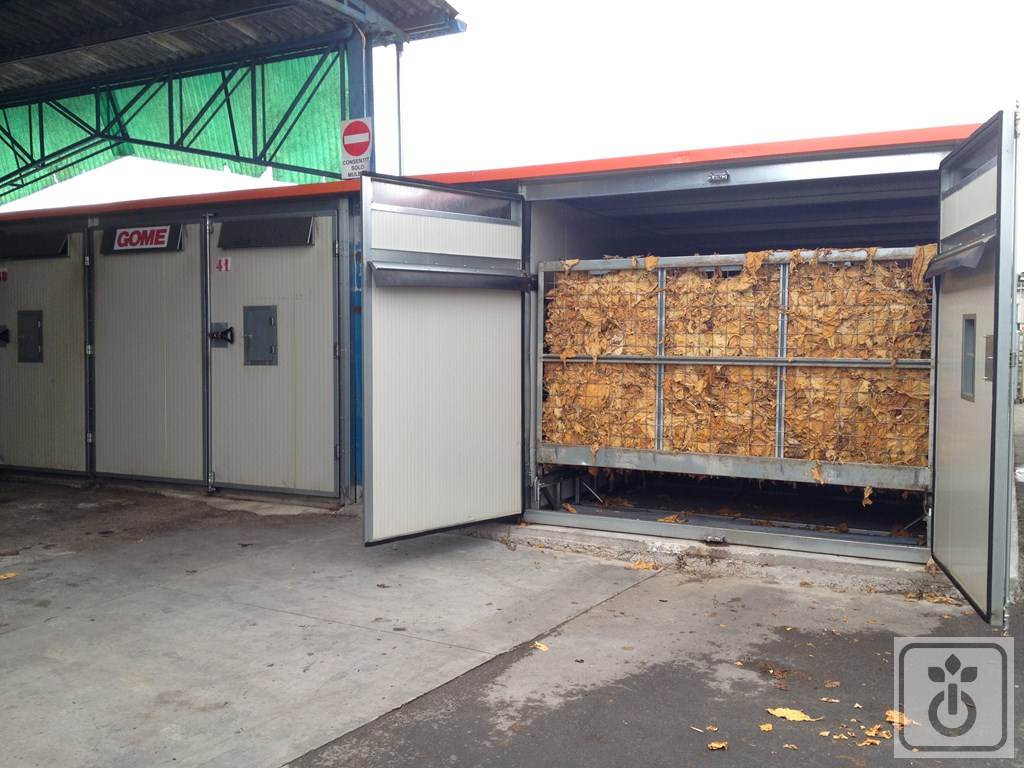

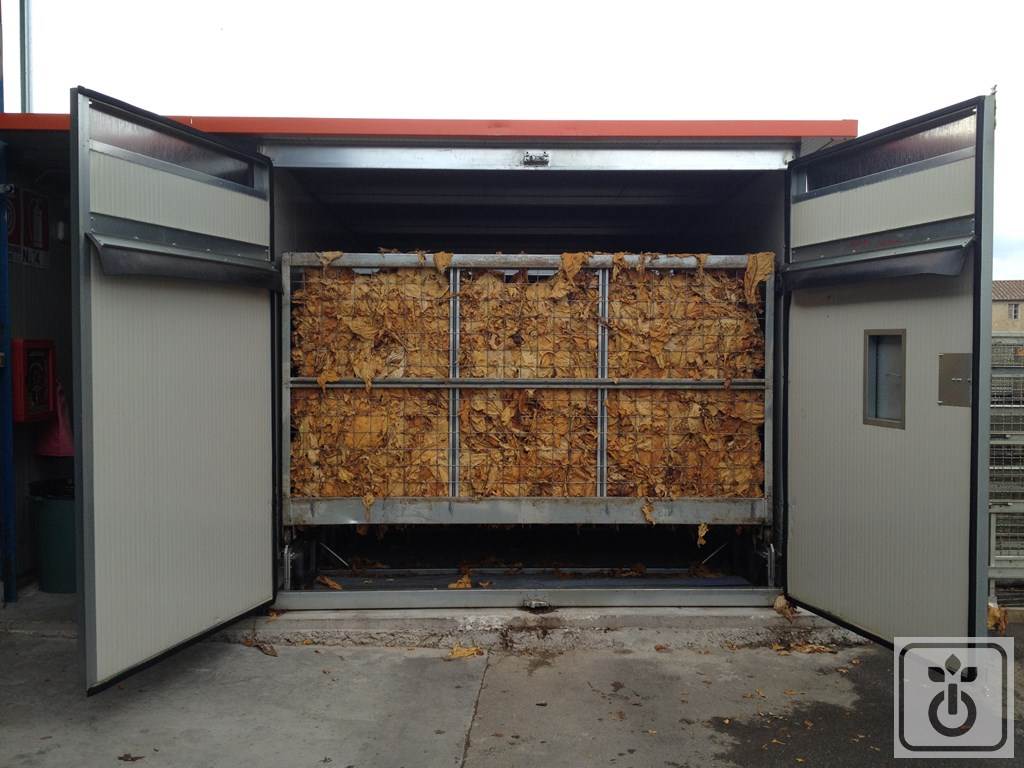

For both model, in addition, you can choose to equip them with containers (with pins, combs or custom), or with frames (GOME, Court Muller, Long Muller).



The range of GOME dryers for tobacco curing is directed for all tobacco farmers who feel the need to reduce their costs and labor time, increase the quality of their dry tobacco, improve the color, the texture and the flavor.

GOME dryers are synonymous of quality and durability: only the best materials, respect for EU Directives concerning Consumer Protection, Sanitation of the Equipment, the technical requirements of production, allow concrete benefits to who buy a GOME dryer.

Our dryers are been designed for the drying of green tobacco but we are able to realize custom dryers on demand.



Look at the CONTAINERS and the FRAMES specially manifactured for the TOBACCO CURING.

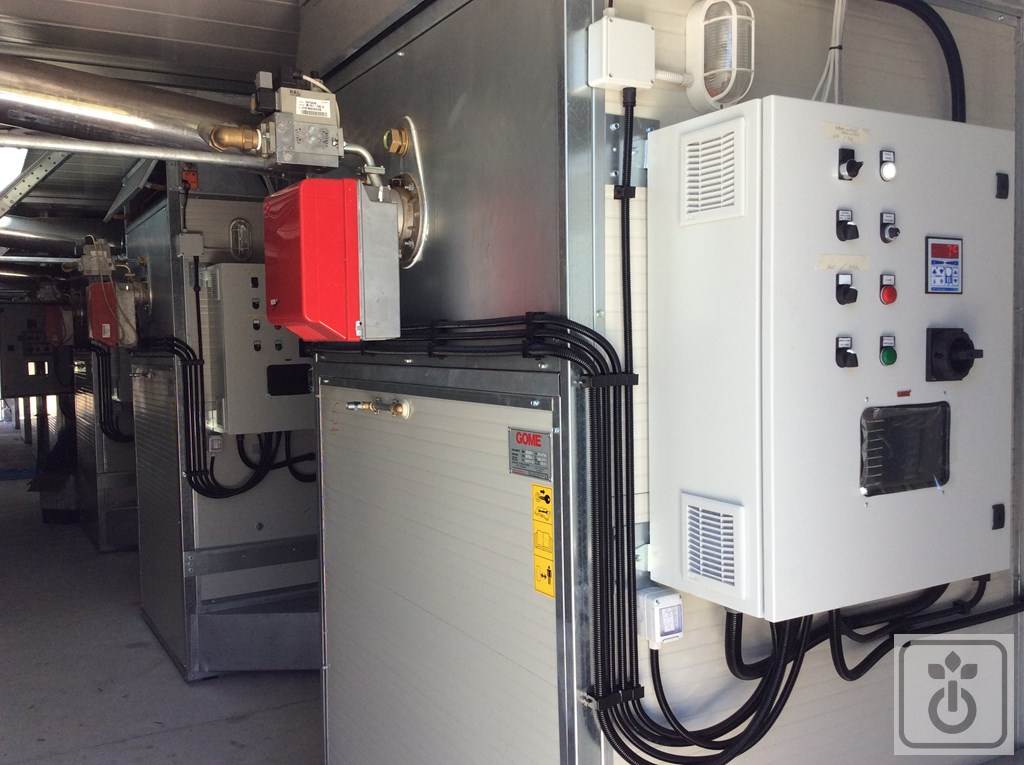

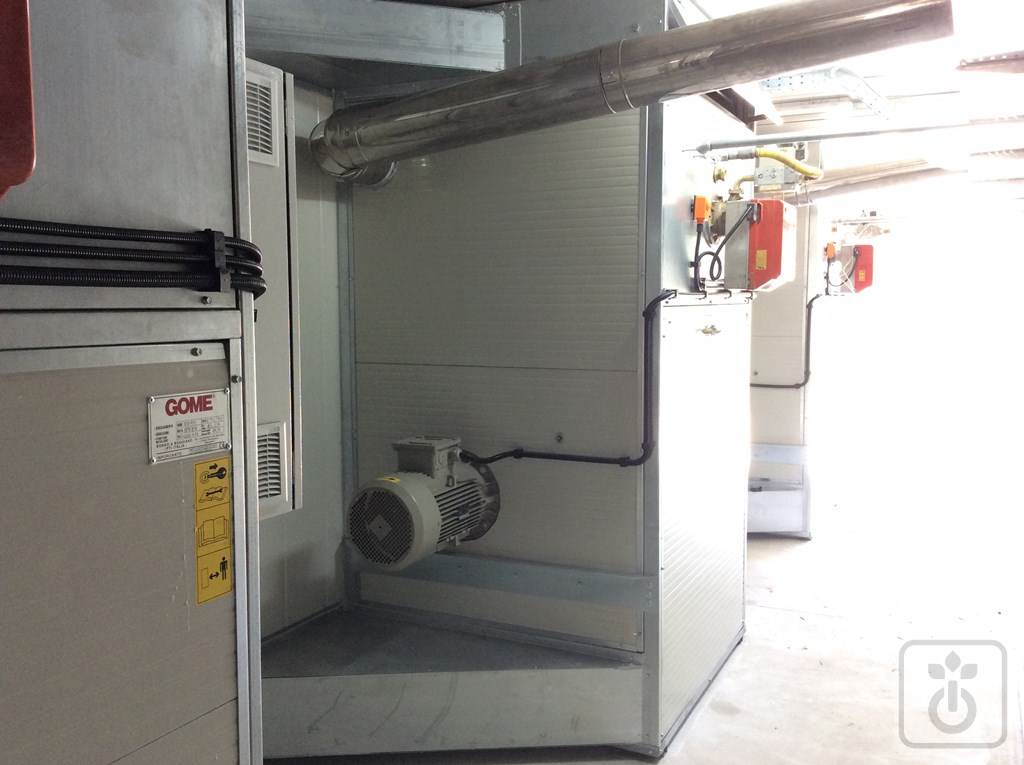

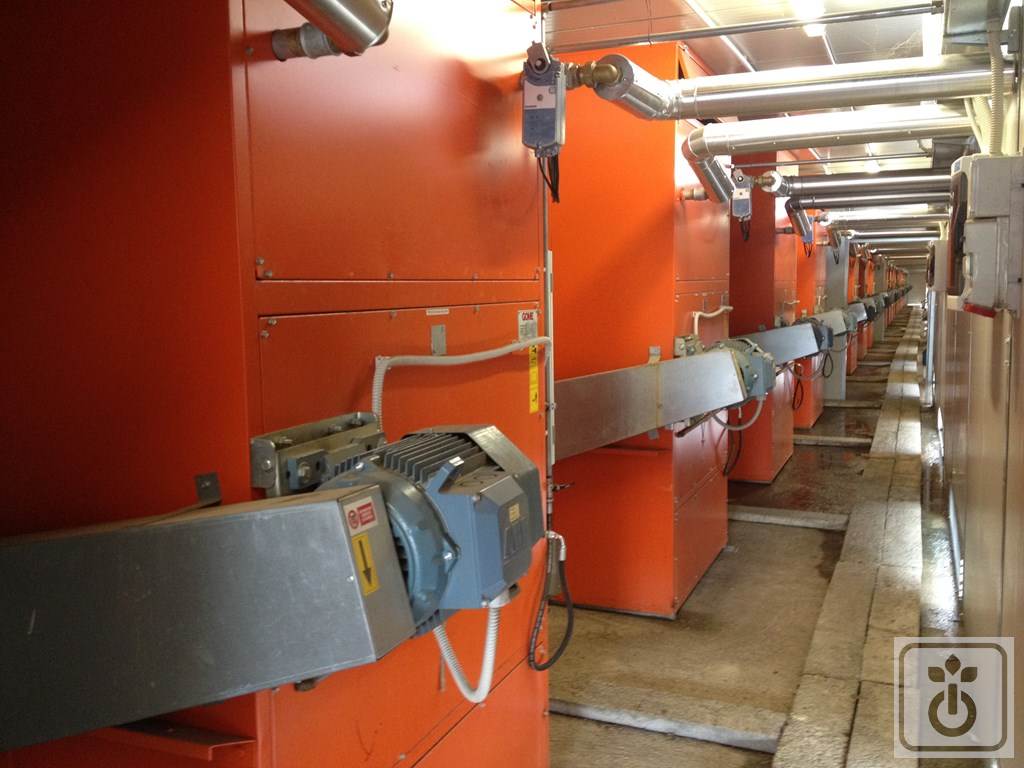

  • Hot air generator with high efficiency exchanger
  • Natural Gas, LPG or Diesel burner by primary national company with electronic flame control
  • 2 or 4 gravitional valves for the moisture expulsion

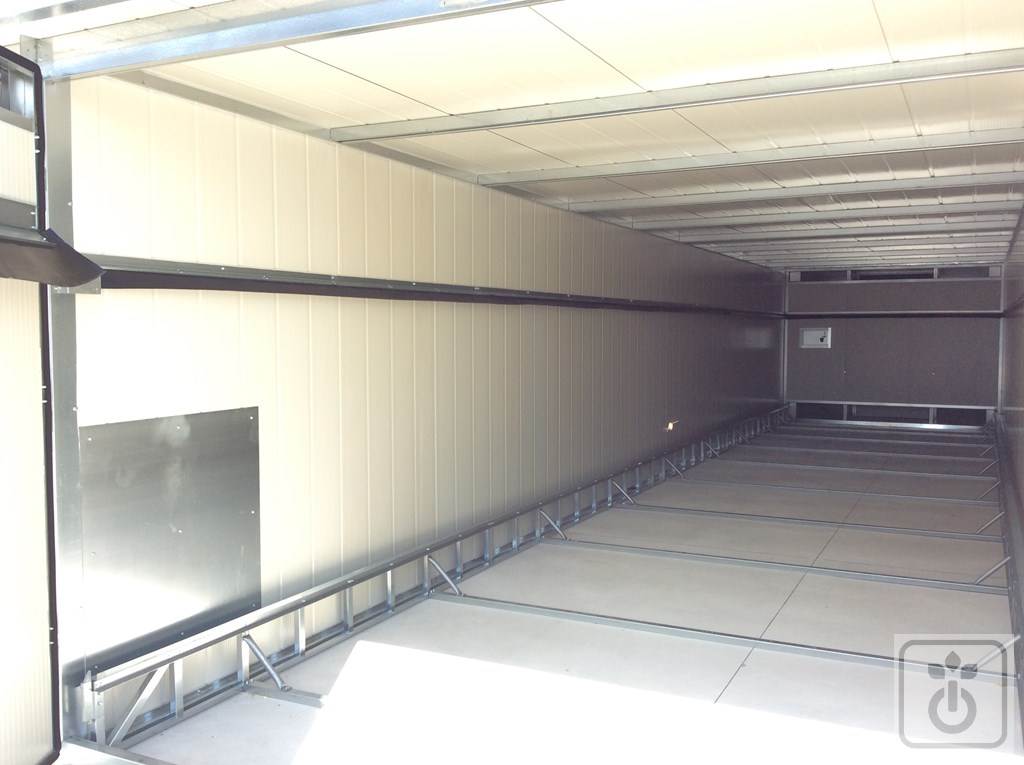

  • Bearing structure made of profiles of Sendzimir galvanized sheet
  • Galvanized thermo-walls and prepainted on the entire perimeter (50 mm thick)
  • Channel of rainwater drainage in galvanized sheet

The dryer ETN TABACCO is available in “mounting kit” and is easy to assemble with the instruction manual that comes attached.

Hi Tech Resource manifactures also big PLANTS FOR DRYING TOBACCO fed by WOOD BIOMASS. Look at the relevant page!

Accessories

Tobacco Containers

Tobacco Frames

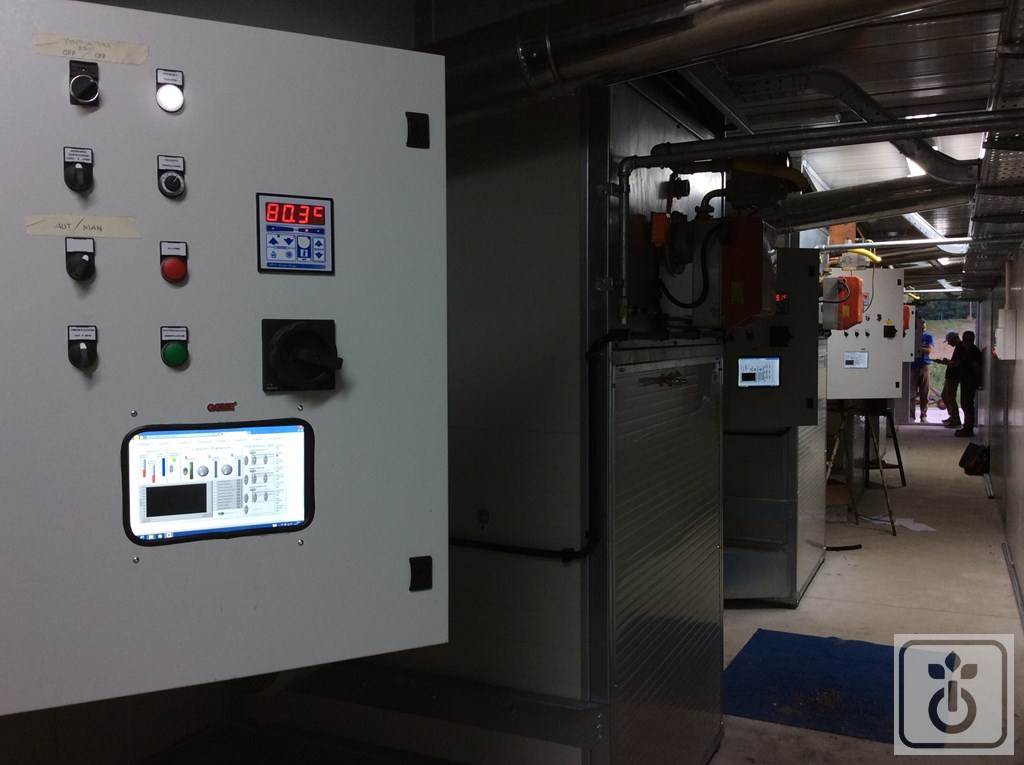

Electronic Thermostat

Safety bithermostat

Smoke exhaust pipe

Steel Curve


Hi Tech Resource realizes customized dryers for the tobacco curing.
