Accessories

Containers for tobacco dryers



Request Information




Send
* denotes mandatory field



TAG

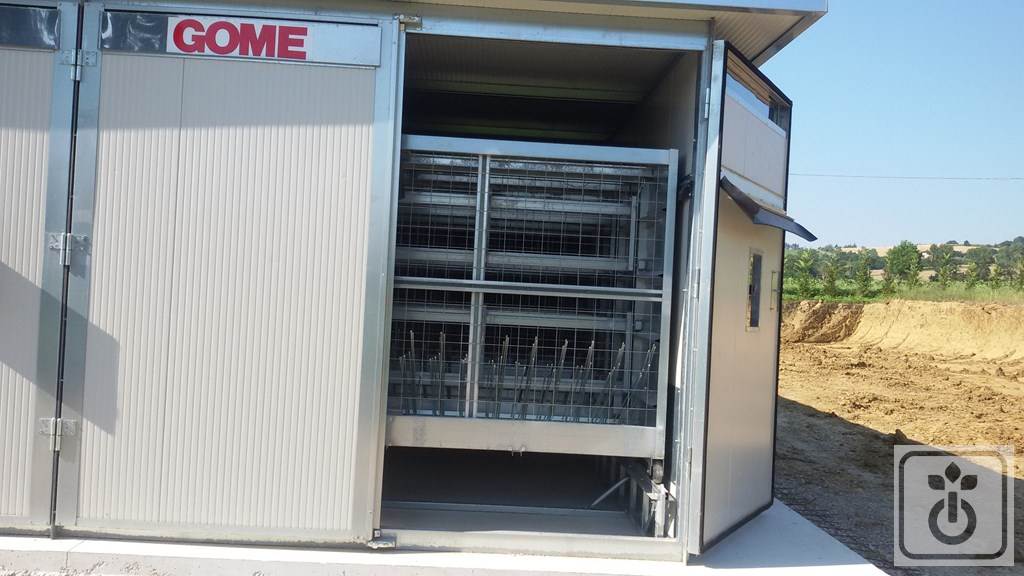

Dryers for tobacco GOME can be equipped with containers with pins and with combs.


  • Product description
  • Specifications

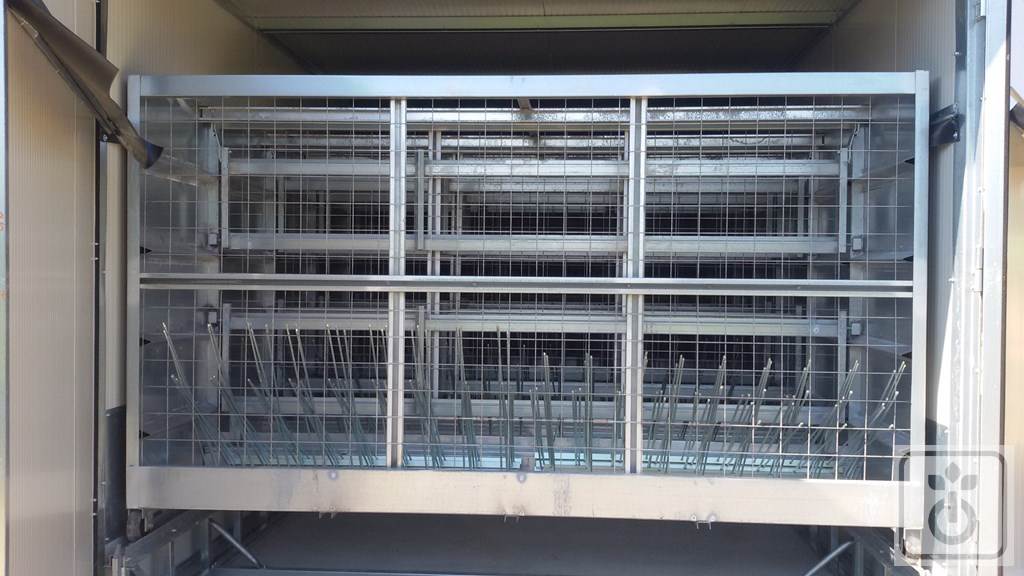

Tobacco dryers brand GOME may be accompanied, within them, the provided containers with pins or containers with combs, ideal to support TOBACCO in them avoiding compaction.



Each container is available in two variants depending on the width of the dryers in which is to be inserted:

  • Model B: width 3.28 m
  • Model G: width 2.94 m

Hi Tech Resource also offers the possibility to create custom containers for all needs and suitable for all types of products to be dried.



These types of containers are suitable on the following DRYER FOR TOBACCO:

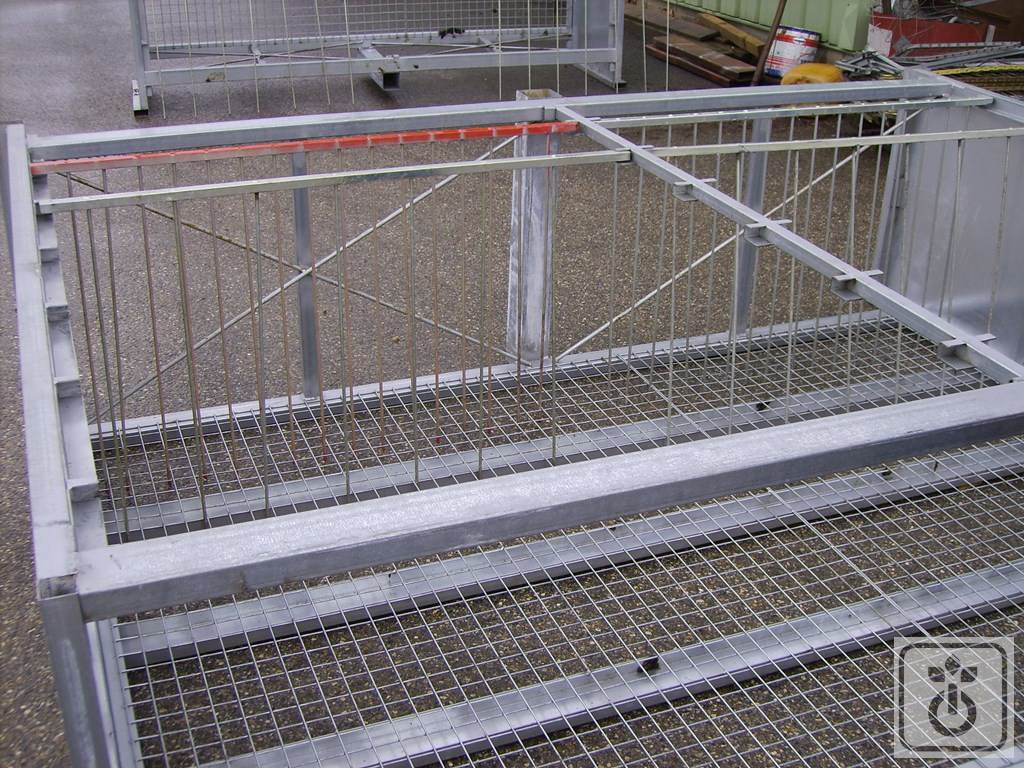

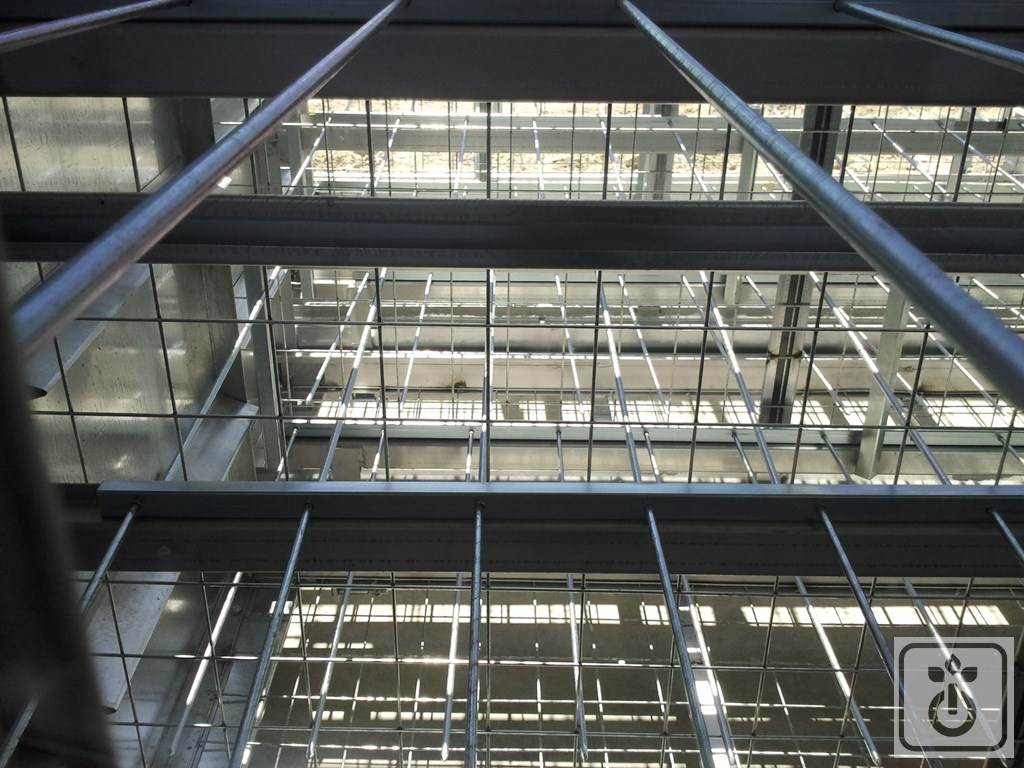

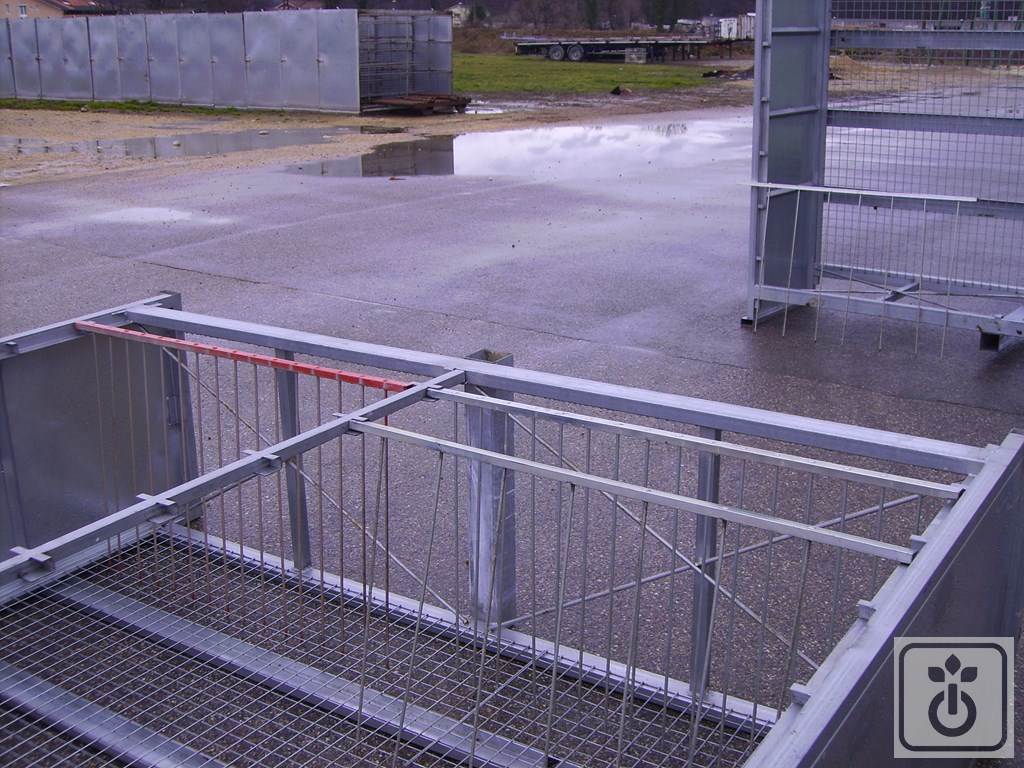

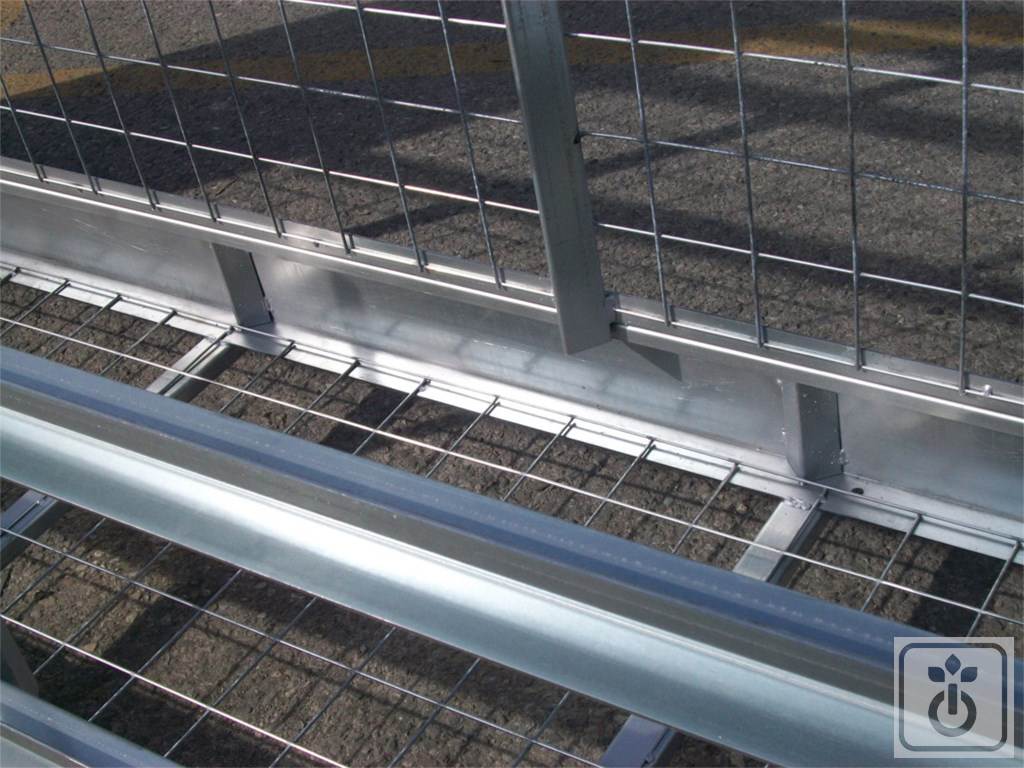

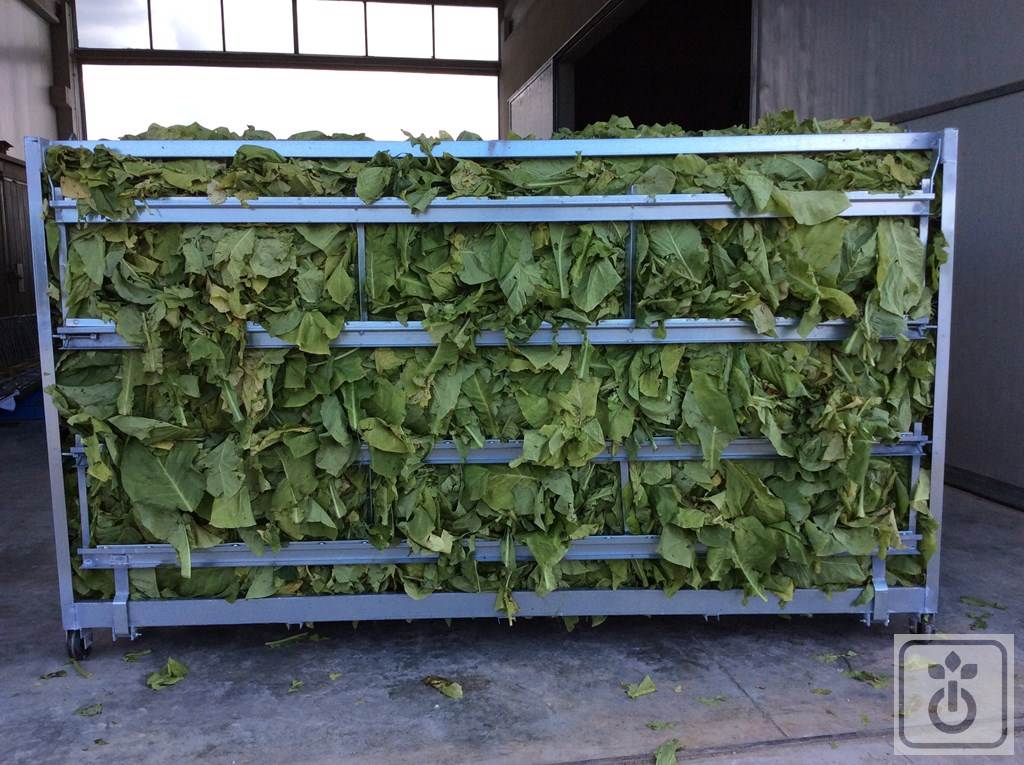

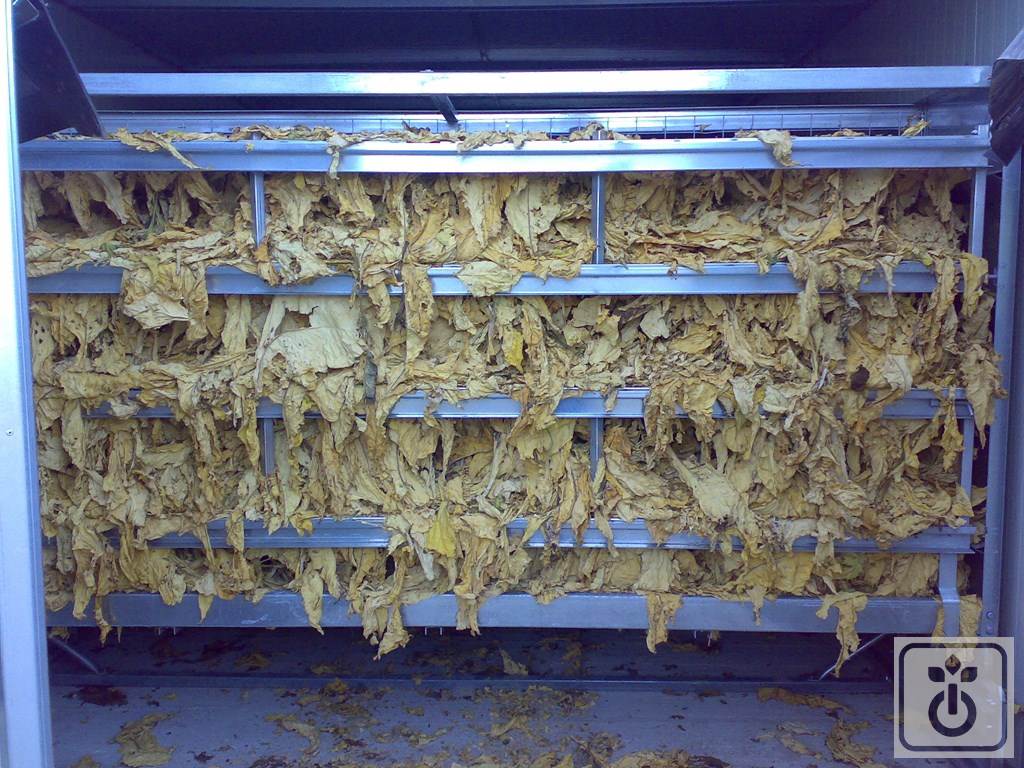

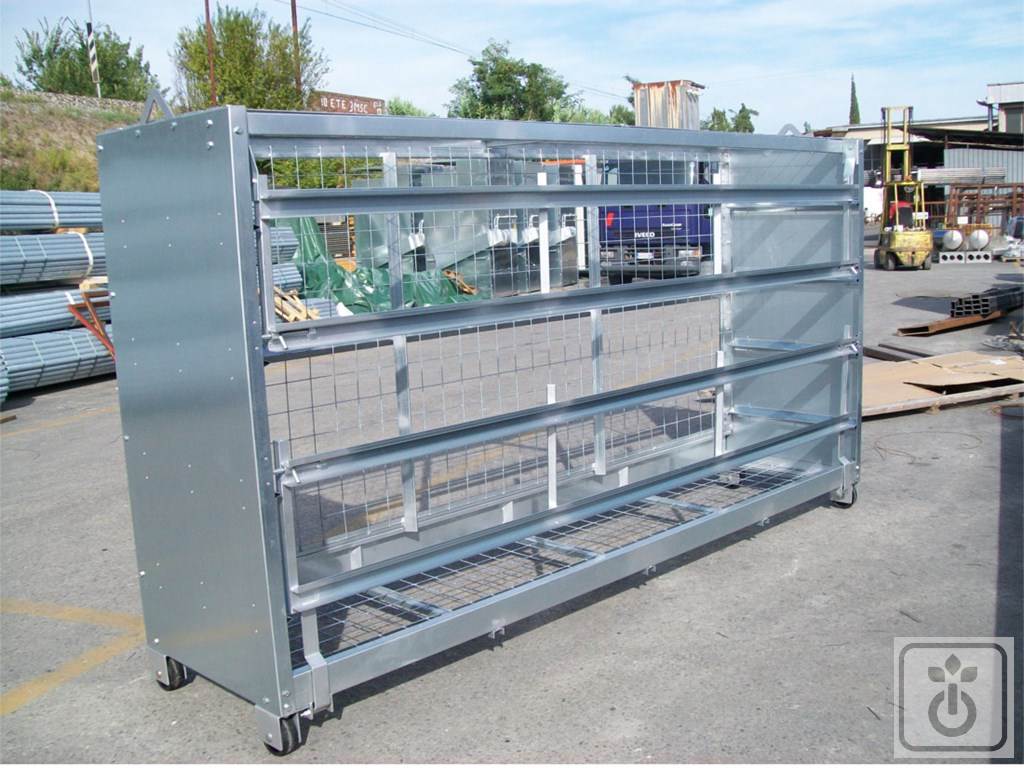

Container with pins

The container with pins is ideal for the placement of massive quantities of tobacco. The number of single internal pins varies depending on whether you choose the model B or the model G and are 80 in the first case and 72 in the second.

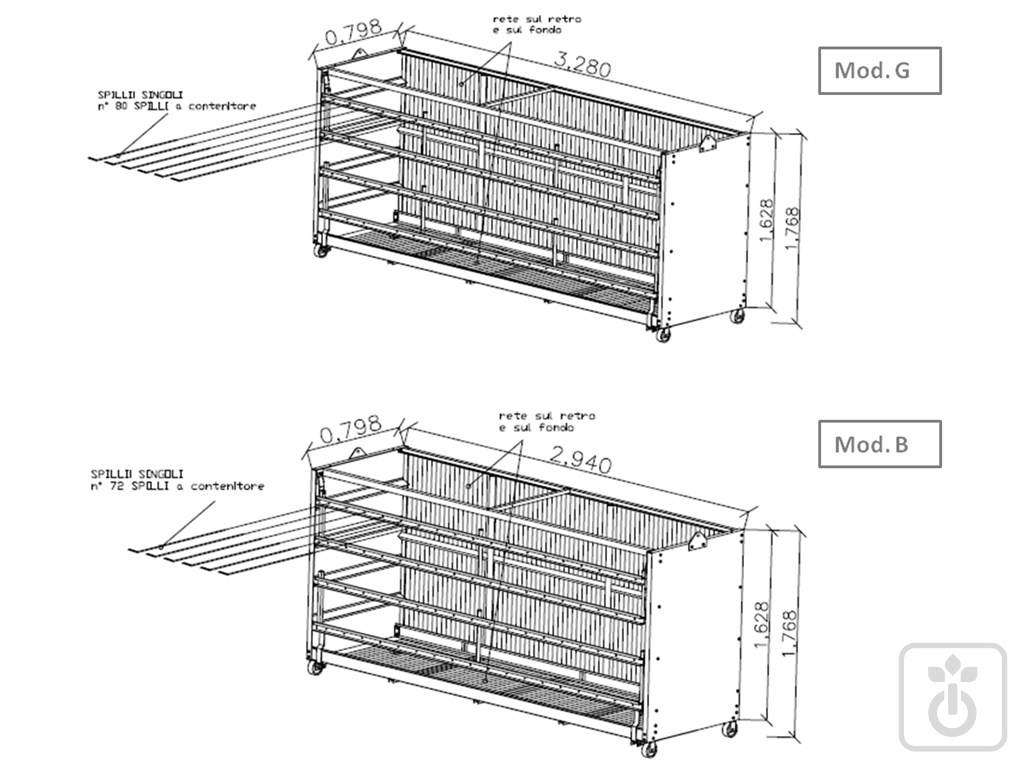

Technical specifications

  Modello G a spilli
Model G with pins
Modello B a spilli
Model B with pins
Dimensioni (mt)
Dimensions
 2,94x0,798x1,768 (h compreso ruote)
2,94x0,798x1,768 (h including wheels)
3,28x0,798x1,768 (h compreso ruote)
3,28x0,798x1,768 (h including wheels)
Capacità (kg)
Capacity
600/620 kg di tabacco verde
600/620 kg of green tobacco
660/680 kg di tabacco verde
660/680 kg of green tobacco
Caratteristiche
Features
N° 72 spilli
N° 72 pins
N° 80 spilli
N° 80 pins
Finitura
Finishing
Lamiera zincata
Galvanized sheet metal
Lamiera zincata
Galvanized sheet metal
Optional
Optional
Rete sul tetto, fondo apribile
Grid on the roof, opening bottom
Rete sul tetto, fondo apribile
Grid on the roof, opening bottom

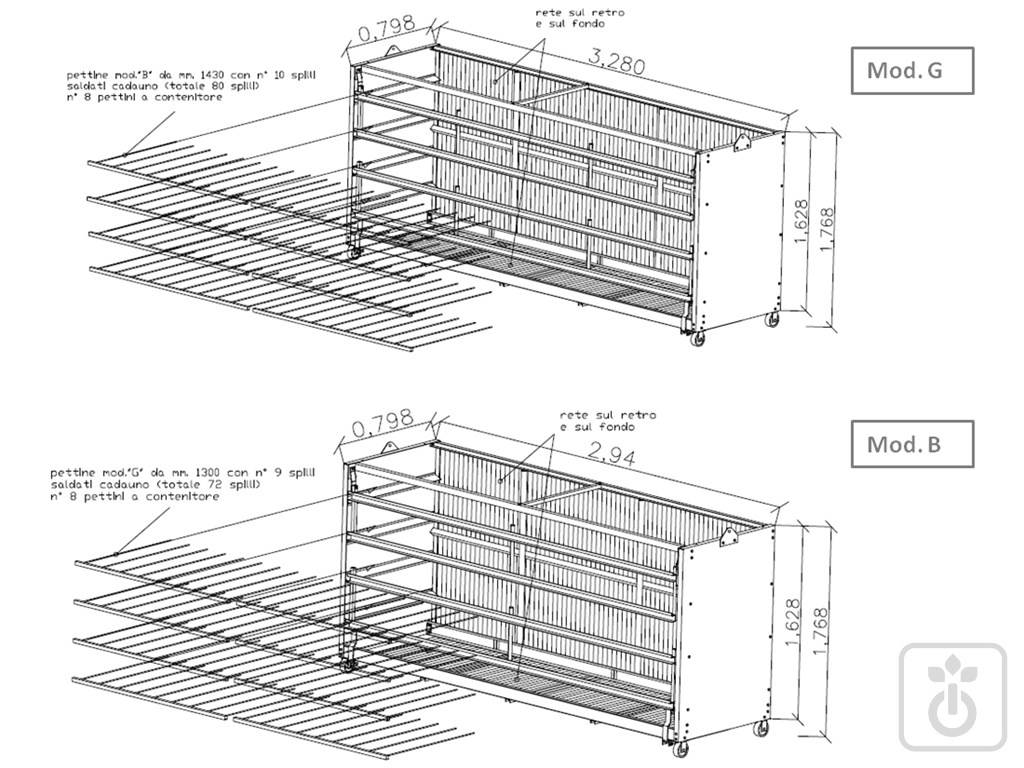

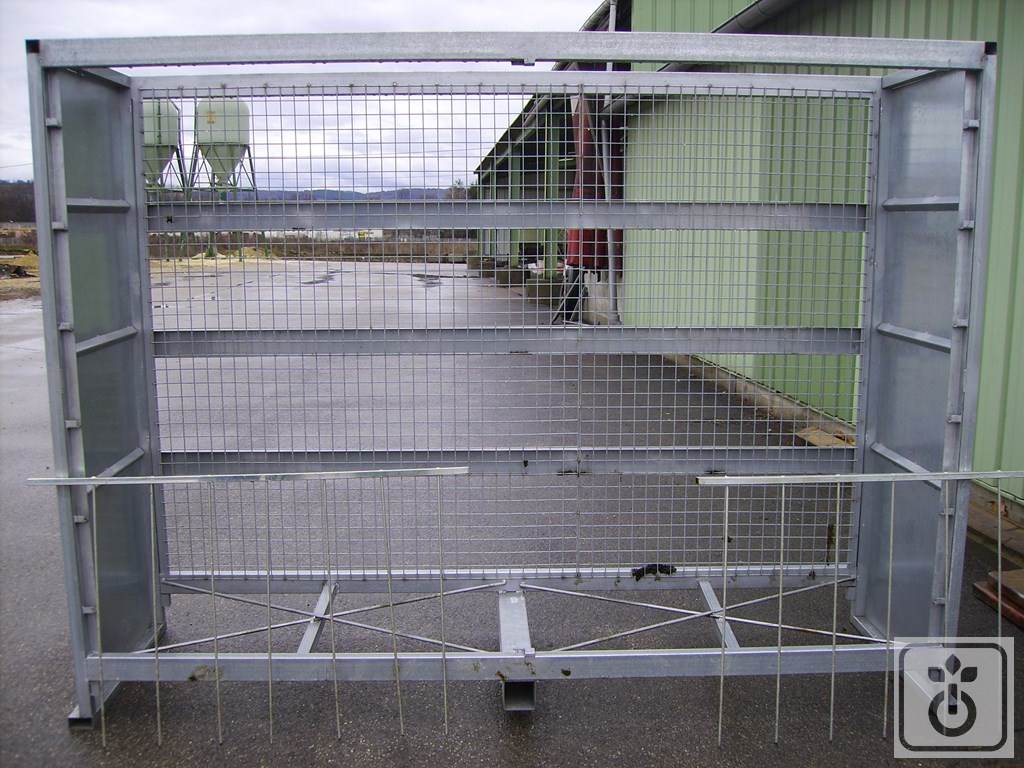

Containers with combs

The container with combs is ideal for the placement of massive quantities of tobacco. The number of internal single combs varies according on you choose the model B or the model G and are 8 combs from 10 pins each in the first case and 8 combs from 10 pins each in the second.



Technical specifications

  Modello G a pettini
Model G with combs
Modello B a pettini
Model B with combs
Dimensioni (mt)
Dimensions
2,94x0,791x1,768 (h compreso ruote)
2,94x0,798x1,768 (h including wheels)
3,28x0,798x1,768 (h compreso ruote)
3,28x0,798x1,768 (h including wheels)
Capacità (kg)
Capacity
600/620 kg di tabacco verde
600/620 kg of green tobacco
 660/680 kg di tabacco verde
660/680 kg of green tobacco
Caratteristiche
Features
N° 8 pettini mod. "G" da n° 9 spilli cad.
N° 8 combs mod. "G" by 9 pins each
N° 8 pettini mod. "G" da n° 10 spilli cad.
N° 8 combs mod. "G" by 10 pins each
Finitura
Finishing
Lamiera zincata
Galvanized sheet metal
Lamiera zincata
Galvanized sheet metal
Optional
Optional
Rete sul tetto, fondo apribile
Grid on the roof, opening bottom
Rete sul tetto, fondo apribile
Grid on the roof, opening bottom



Hi Tech Resource manifactures customized containers on demande
