Dryers - Herbs - Bio Line

Includes all GOME dryers fueled wood biomass: wood chips, pellet, shells, hazelnuts shells. Each customer can choose the burner fed with fuel him prefers.

Dryer for officinal herbs - MOD "STN BIO ERBE"



Request Information

Send
* denotes mandatory field



Feed

Wood Chips

Pellet

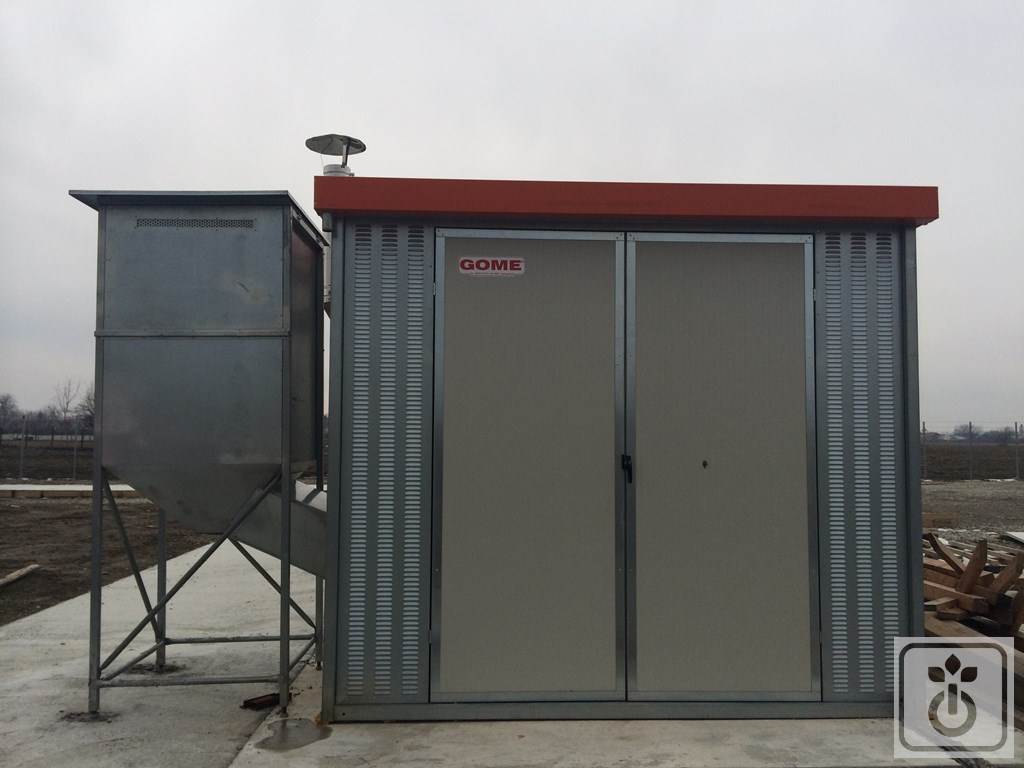

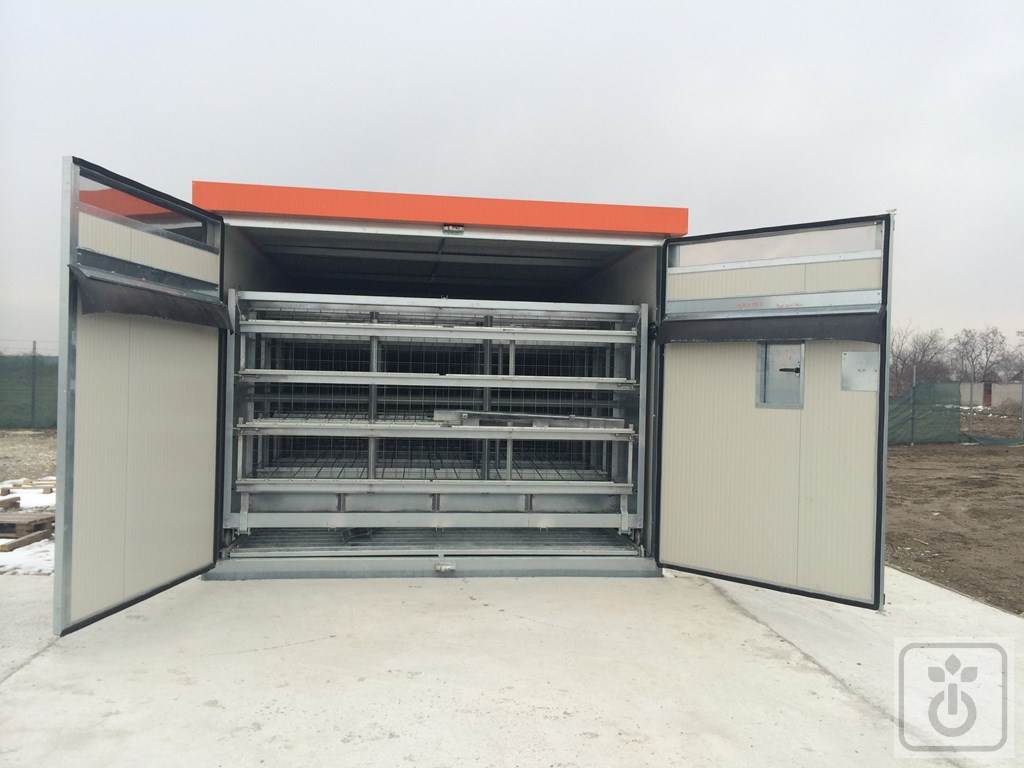

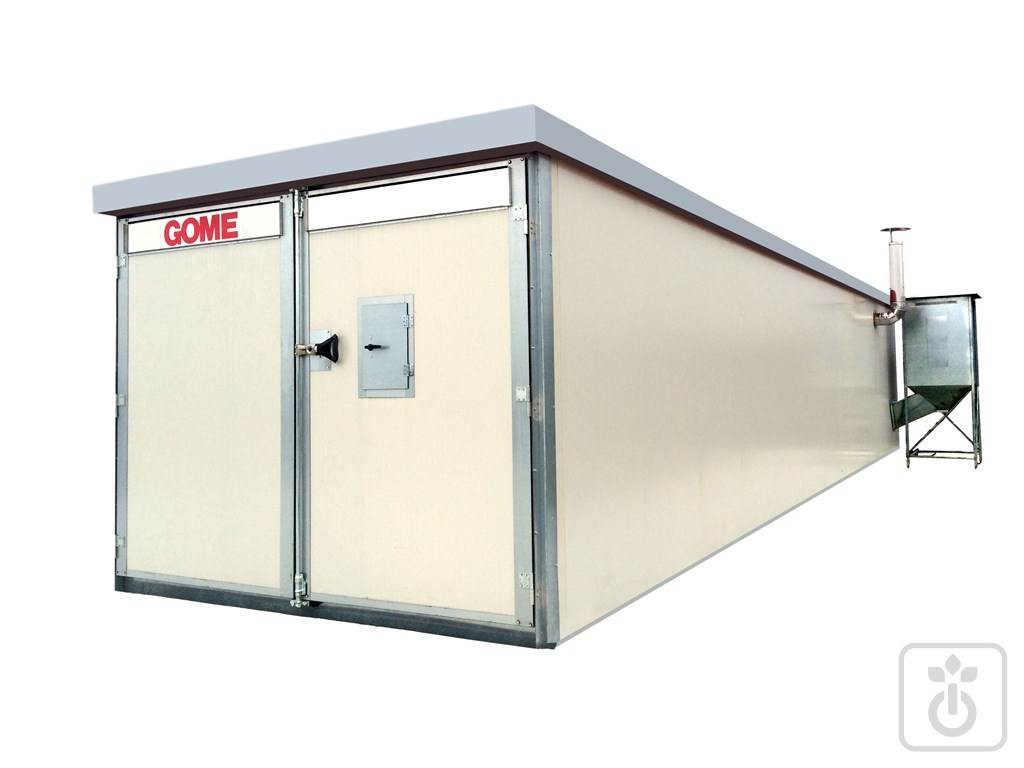

The dryer for officinal herbs STN BIO ERBE is powered woody biomass and it’s carachterized by functioning with input of warm air into the cell from the bottom to the top.


  • Product description
  • Specifications

The dryer STN BIO ERBE  is powered woody biomass (pellet, woody chips, shells, hazelnuts) and it’s carachterized by functioning with input of warm air into the cell from the bottom to the top.

The dryer can be realize in two models of different dimensions:

  • Model G: width 3.14 m;
  • Model B: width 3.49 m.

 The range of GOME dryers for plants and herbs is aimed to all agricultural companies that have the need to reduce its costs and labor time, increase the quality of their products, improve the preservation in time, the freshness and maintain unchanged the organoleptic properties and medicines.

GOME dryers are synonymous of quality and durability: only the best materials, respect for EU Directives concerning Consumer Protection, Sanitation of the Equipment, the technical requirements of production, allow concrete benefits to who buy a GOME dryer.

Our dryer have been designed for drying:

  • Officinal herbs
  • Medical herbs
  • Aromatic herbs
  • Infusion plants
  • Flowers

but we are able to realize dryers personalized on demand.



See also the CONTAINERS for HERBS DRYERS





  •  Hot air generator with high efficiency exchanger
  • Wood chips,pelle,shells or hazelnuts burner of our producstion with electronic flame control
  • 4 gravitional valves for the moisture expulsion
  • Bearing structure made of profiles of Sendzimir galvanized sheet
  • Galvanized thermo-walls and prepainted on the entire perimeter (50 mm thick)
  • Channel of rainwater drainage in galvanized sheet

The dryer STN BIO ERBE  is available in “mounting kit” and is easy to assemble with the instruction manual that comes attached.




Accessories

Herbs and Agro containers

Safety bithermostat

Pellet container

Screw

Reduce for screw

Electric motor

Oregon Pipe

Cart for pellet burner


IDEAL FOR:

    • Officinal herbs
    • Medical herbs
    • Aromatic herbs
    • Infusion plants
    • Flowers
