Accessories

Containers for dryers of herbs and agri-foods



Request Information

Send
* denotes mandatory field



TAG



Containers with trays and pins specifically designed for drying herbs, fruit and vegetables.


  • Product description
  • Specifications

Dryers brand GOME may be accompanied, within them, the provided containers with trays and containers with pins, ideal for drying of officinal herbs, herbs, fruit, vegetables, legumes and cereals. Each container is available in two variants depending on the width of the dryer in wich must be inserted:

  • Model B: width 3.28 m
  • Model G: width 2.94 m

Hi Tech Resource also offers the possibility to create custom containers for all needs and suitable for all types of products to be dried.

The containers can be incorporated into all models of DRYING for HERBS and AGRO FOOD:

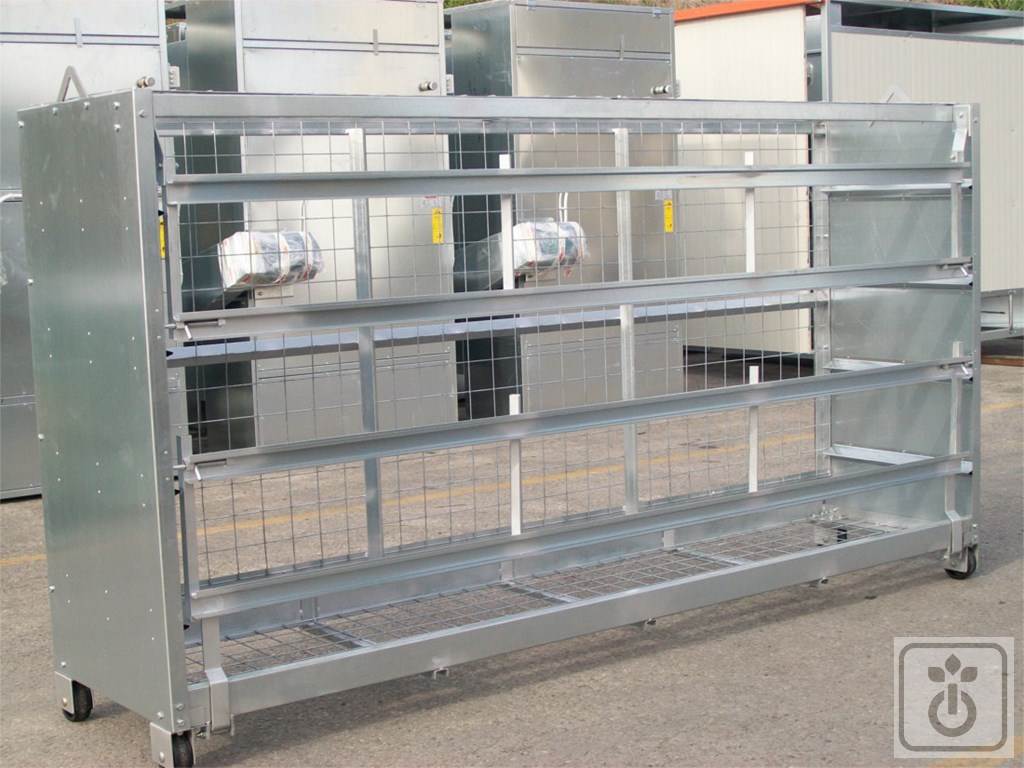

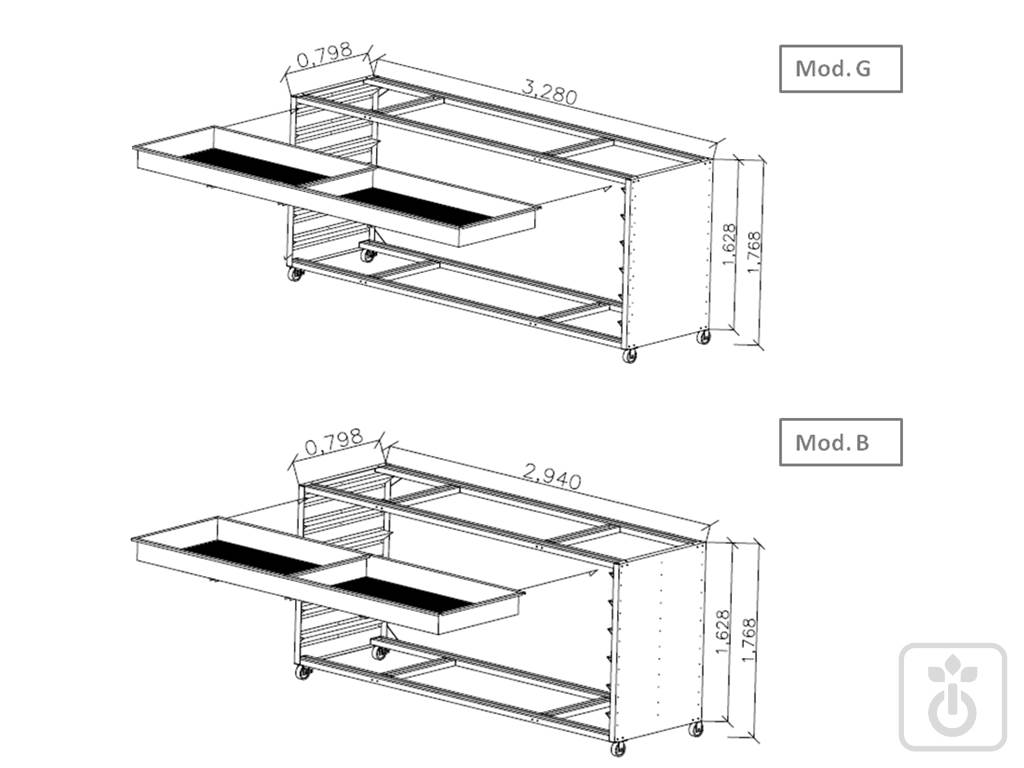

Container with trays

The container with trays is ideal for placement in plan for officinal herbs, herbs, fruit, vegetable and legumes. Each container contains 6/8 trays and you can choose whether to have it with the closed-end fund or with the bottom opening, according to your needs drying.




Technical specifications

  Modello G a vassoi
Model G with trays
Modello B a vassoi
Model B with trays
Dimensioni (mt)
Dimensions
 2,94x0,798x1,768 (h compreso ruote)
2,94x0,79x1,768 (h including wheels)
 3,28x0,798x1,768 (h compreso ruote)
3,28x0,798x1,768 (h including wheels)
Capacità (kg)
Capacity
 Variabile in funzione del prodotto
Variable depending on the product
 Variabile in funzione del prodotto
Variable depending on the product
Finitura
Finishing
 Lamiera zincata - acciaio inox
Galvanized sheet metal - stainless steel
 Lamiera zincata - acciaio inox
Galvanized sheet metal - stainless steel
Caratteristiche
Features
 N° 6/8 vassoi da 2,82x0,796x0,20
N° 6/8 trays of 2,82x0,796x0,20
 N° 6/8 vassoi da 3,16x0,796x0,20
N° 6/8 trays of 3,16x0,796x0,20
Optional
Optional
 Rete sul tetto, fondo apribile
Grid on the roof, opening bottom
 Rete sul tetto, fondo apribile
Grid on the roof, opening bottom

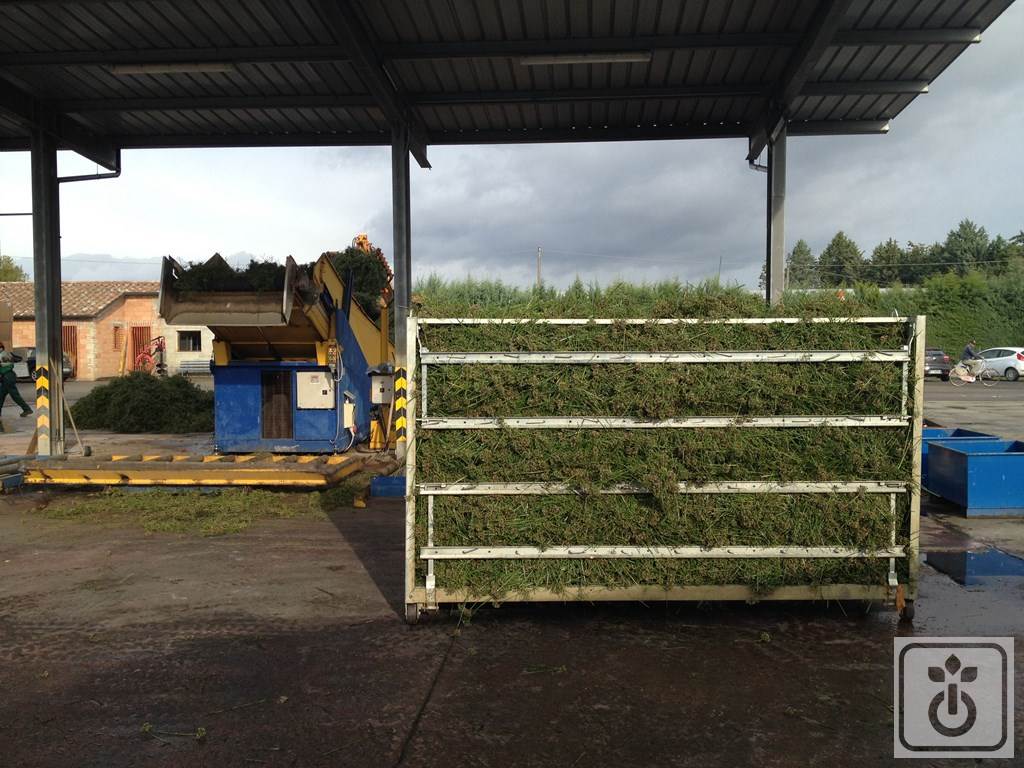

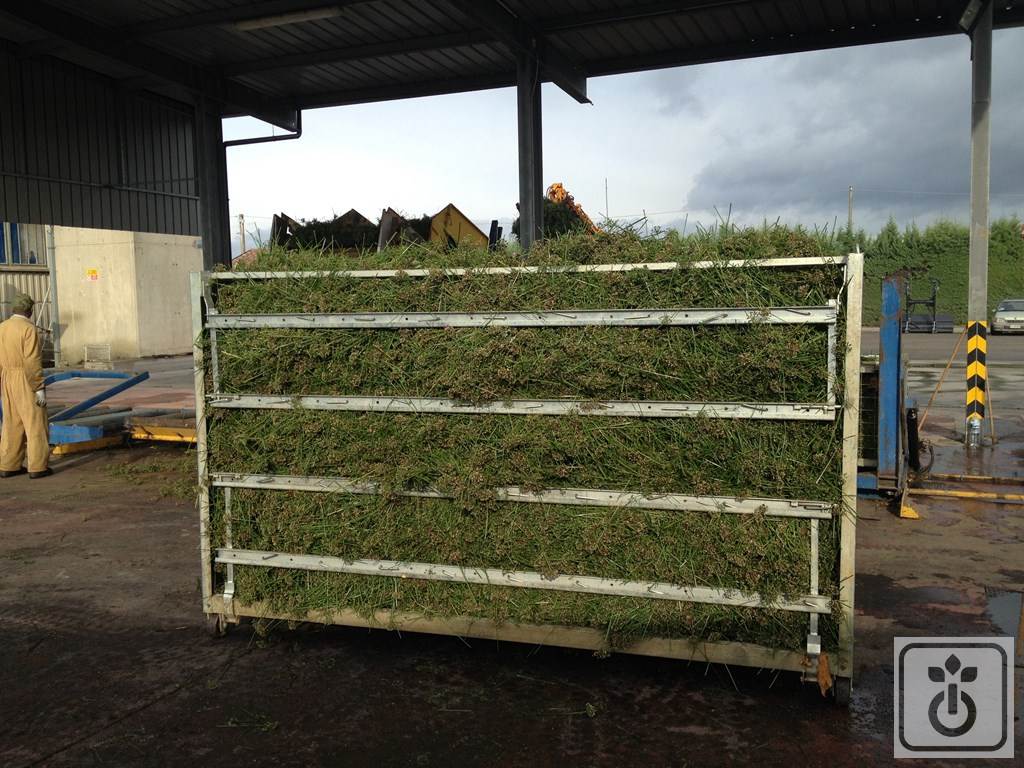

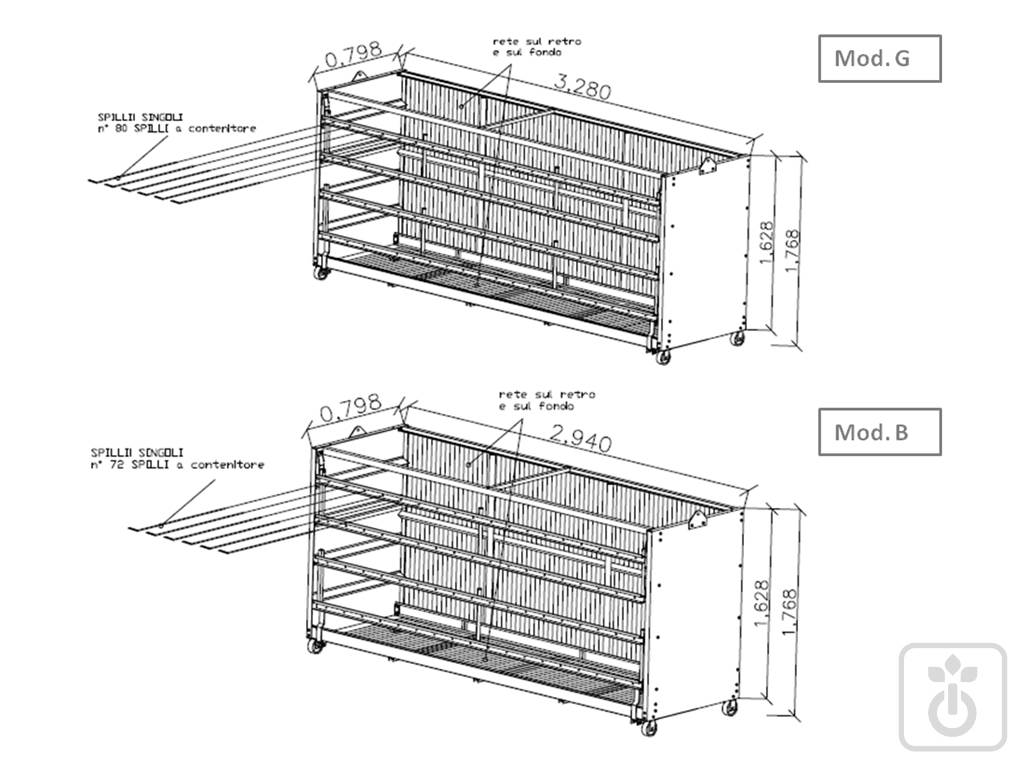

Container with pins

The container with pins is ideal for collocation in vertical of massive amounts of aromatic herbs, flowers, herbs and vegetables. The number of single internal pins varies depending on whether you choose the model B or the model G and are 80 in the first case and 72 in the second.





Technical specifications

  Modello G a spilli
Model G with pins
Modello B a spilli
Model B with pins
Dimensioni (mt)
Dimensions
2,94x0,79x1,768 (h compreso ruote)
2,94x0,798x1,768 (h including wheels)
 3,28x0,798x1,768 (h compreso ruote)
3,28x0,798x1,768 (h including wheels)
Capacità (kg)
Capacity
Variabile in funzione del prodotto (100/680 kg)
Variable depending on the product (100/680 kg)
Variabile in funzione del prodotto (100/680 kg)
Variable depending on the product (100/680 kg)
Finitura
Finishing
Lamiera zincata
Galvanized sheet metal
 Lamiera zincata
Galvanized sheet metal
Caratteristiche
Features
N° 72 spilli
N° 72 pins
N° 80 spilli
N° 80 pins
Optional
Optional
Rete sul tetto, fondo apribile
Grid on the roof, opening bottom
Rete sul tetto, fondo apribile
Grid on the roof, opening bottom




Hi Tech Resource manifactures customized containers for all needs
