Dryers - Special - Bio Line

Includes all GOME industrial dryers fueled wood biomass: wood chips, pellet, shells, hazelnuts shells. Each customer can choose the burner fed with fuel him prefers.

Biomass dryer for leather uppers - MOD "ETT BIO SPECIAL"



Request Information




Send
* denotes mandatory field



Feed

Wood Chips

Chippings

Pellet

Shells

Olive Pomace



Special industrial belt dryer for the drying of leather uppers.


  • Product description
  • Specifications

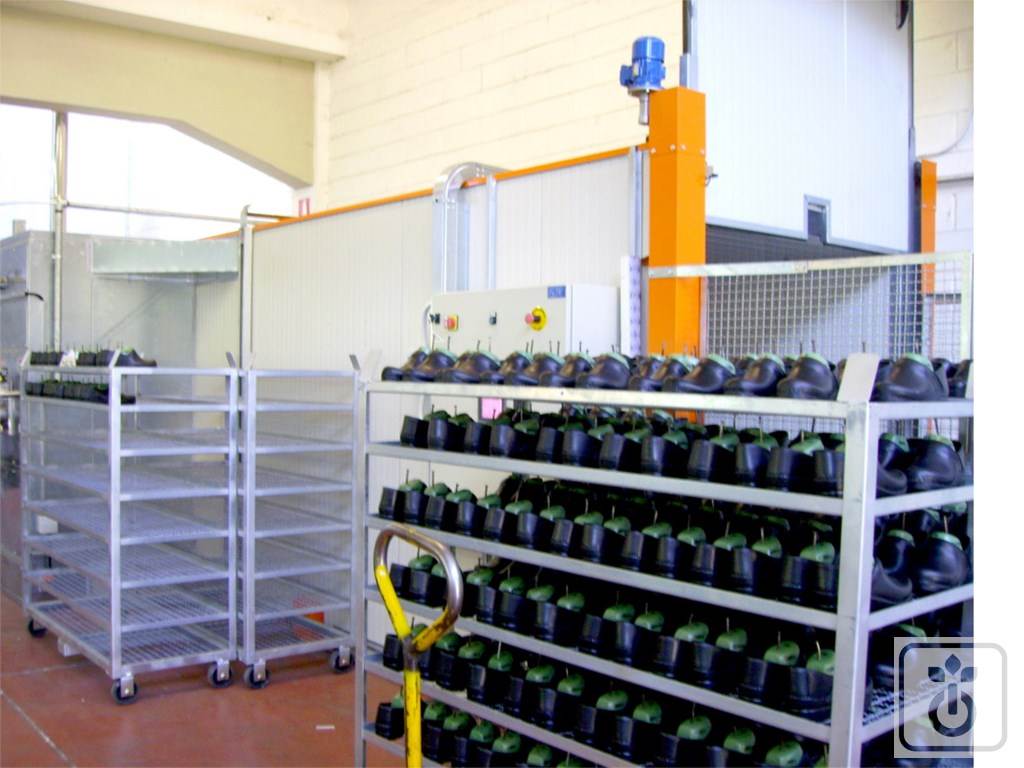

The dryer ETT BIO SPECIAL is an advanced system of drying with automatic feed on a conveyor belt with trolleys, specifically made for the positioning of the leather uppers. Through this process you get a leather that keeps all its elasticity and softness. It’s powered by wood biomass.

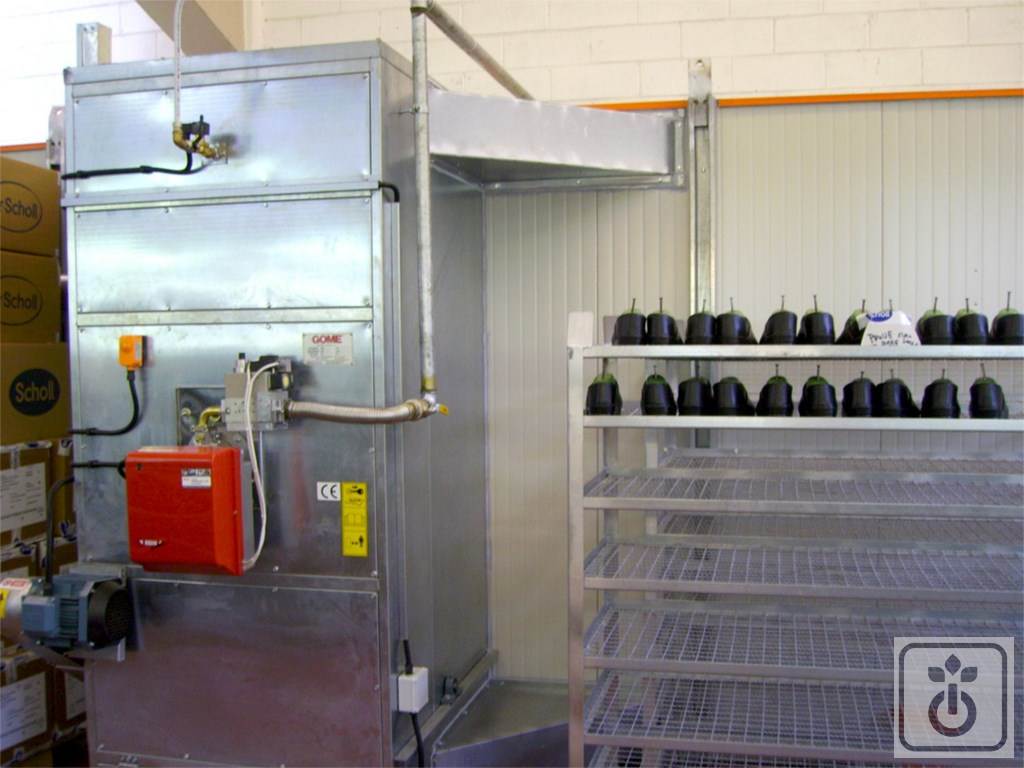

The dryer ETT Special has a drying chamber made of prepainted thermo-walls from the outside and inside. It’s constituted by a thermical room of heat generation with:

  • Hot air generator
  • Combustion chamber in special stainless steel with high efficiency
  • Centrifugal fan
  • Three phase motor kW 3,0
  • Burner operating pellet chips, wood chips, shells, hazelnuts of our production with electrical control of the flame
  • Chimney kit in stainless steel
  • Electric control panel for the automatic processing functional delta T °C
  • Installations of humidification complete of special nozze in stainless steel and solenoid shutoff valve of water, automatically controller by the electronic controller of humidity
  • Plenum of discharge hot air made of Sendzimir bent sheet metal
  • Plenum of recovery of hot air complete of outdoor air openings made of Sendzimir bent sheet metal

The drying chamber is, instead, entirely built in thermo-walls and it’s constituted by:

  • Supporting structure of high build designed for moving the dryer, complete with coupling flanges and central supports, with special coating inside and with high insulation
  • Slide rails for loading of containers

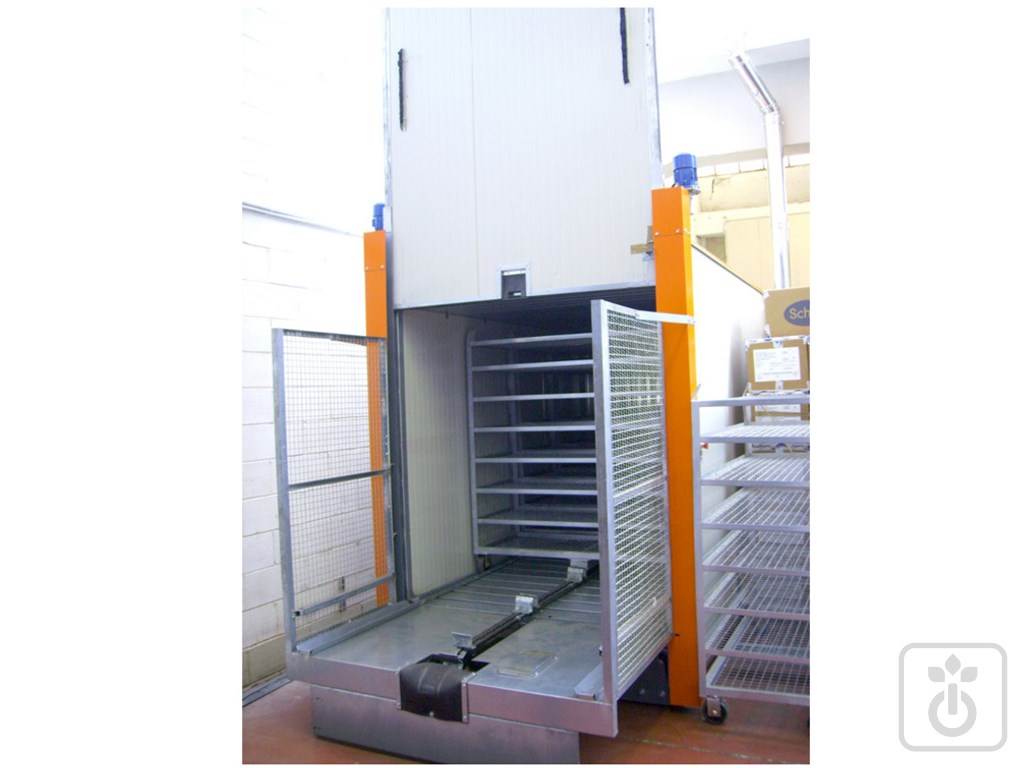

  • Two doors each with two insulated hinged with automatic opening for the access to the cell from the part of loading and from the output part of containers.
  • Geared motor for automatic movement and advancement of containers through pinions and chain

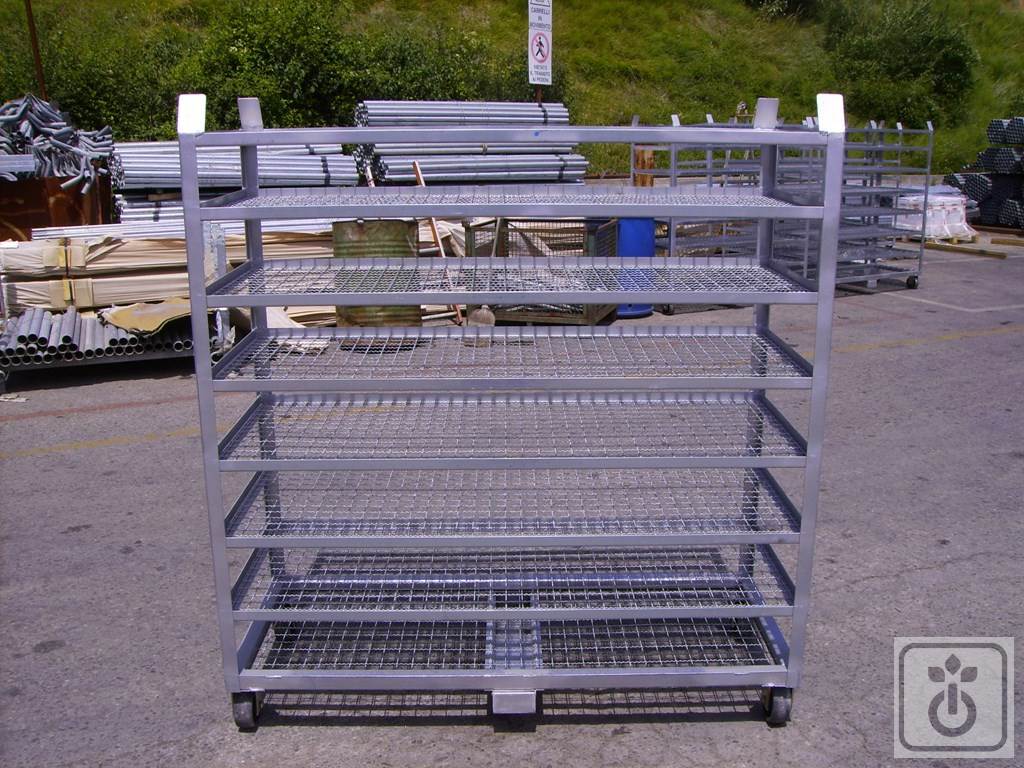

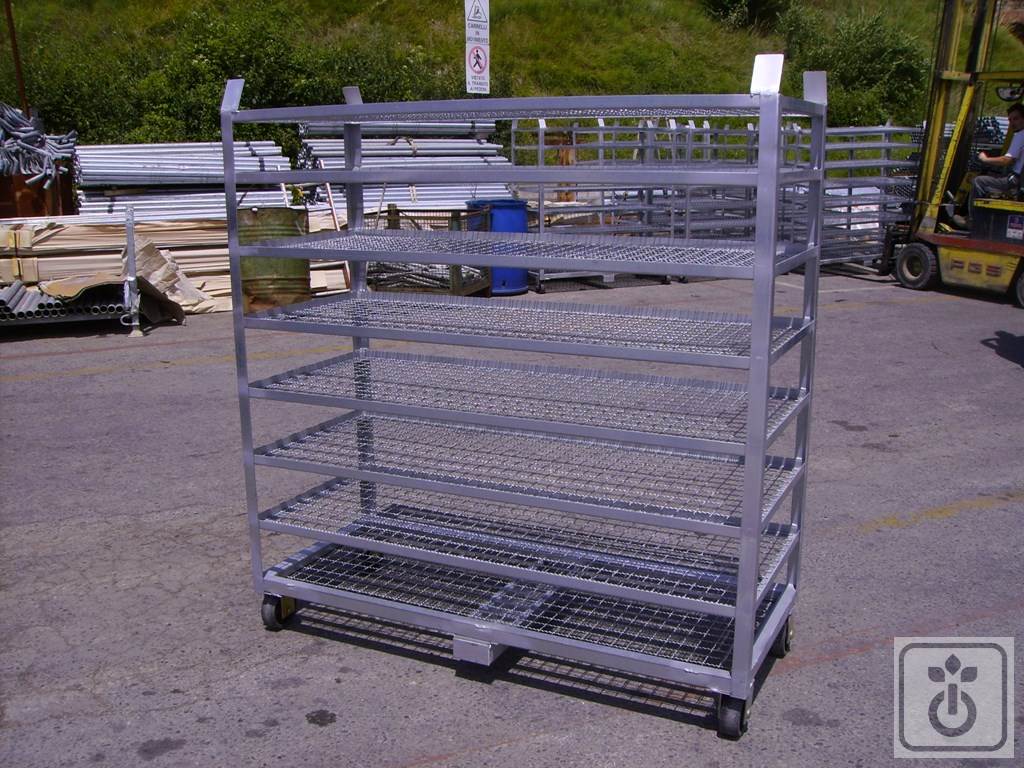

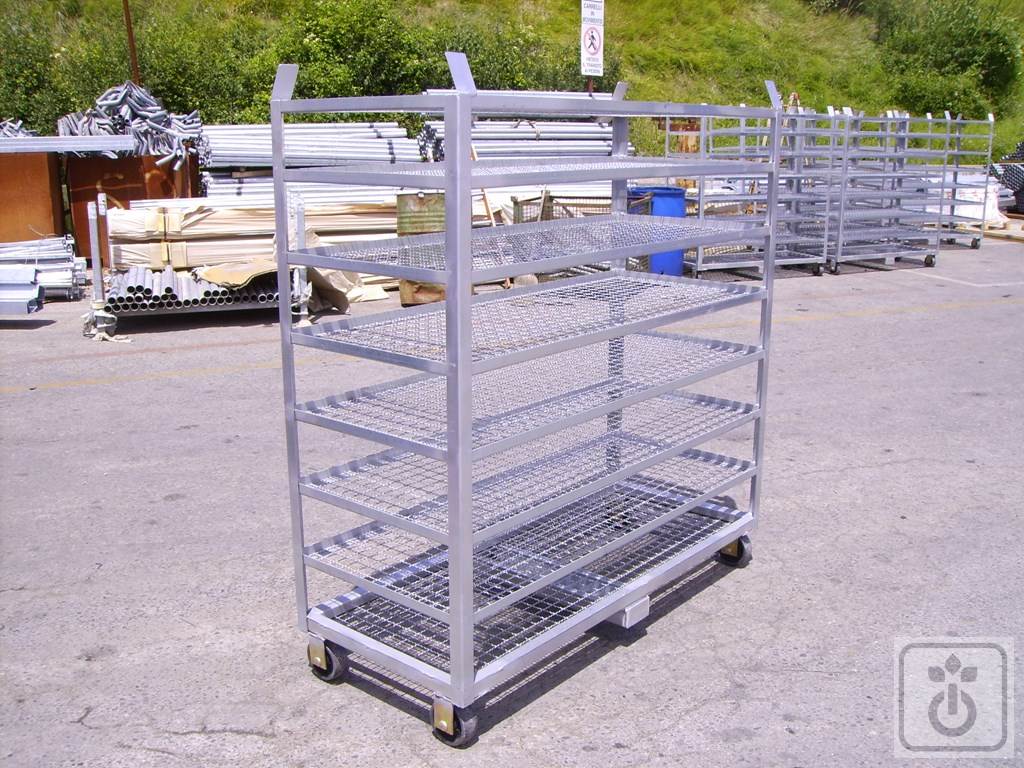

  • Fourteen wheeled containers for loading uppers made of Sendzimir galvanized sheet, equipped with 8 loading platforms with corrugated wire network.



Accessories

Electronic Thermostat

Safety bithermostat
