Dryers - Tobacco - Classic Line

Includes all GOME dryers fed with traditional fuels: satural gas, LPG, diesel. Each customer can choose the burner fed with fuel him prefers.

Dryer for tobacco - MOD "STN TABACCO"



Request Information

Send
* denotes mandatory field



Feed

LPG

Diesel

Natural Gas



The dryer for tobacco STN TABACCO is powered conventional fuels and is carachterized by functioning with input of warm air into the cell from the bottom to the top.


  • Product description
  • Specifications

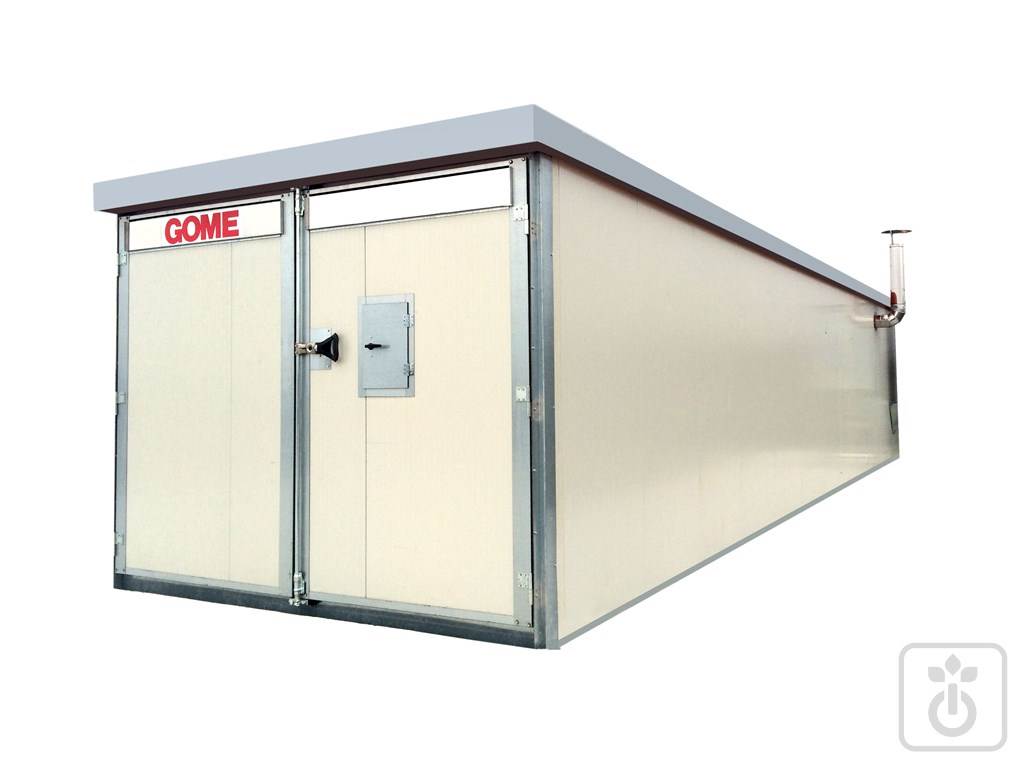

The dryer STN TABACCO is characterized by functioning with input hot air in the cell from bottom to the top. It’s powered traditional fuels and the user can choose between: LPG/Natural Gas/Diesel. It’s available in two different dimensions:

  • Model G: width 3.14
  • Model B: width 3.49 m.

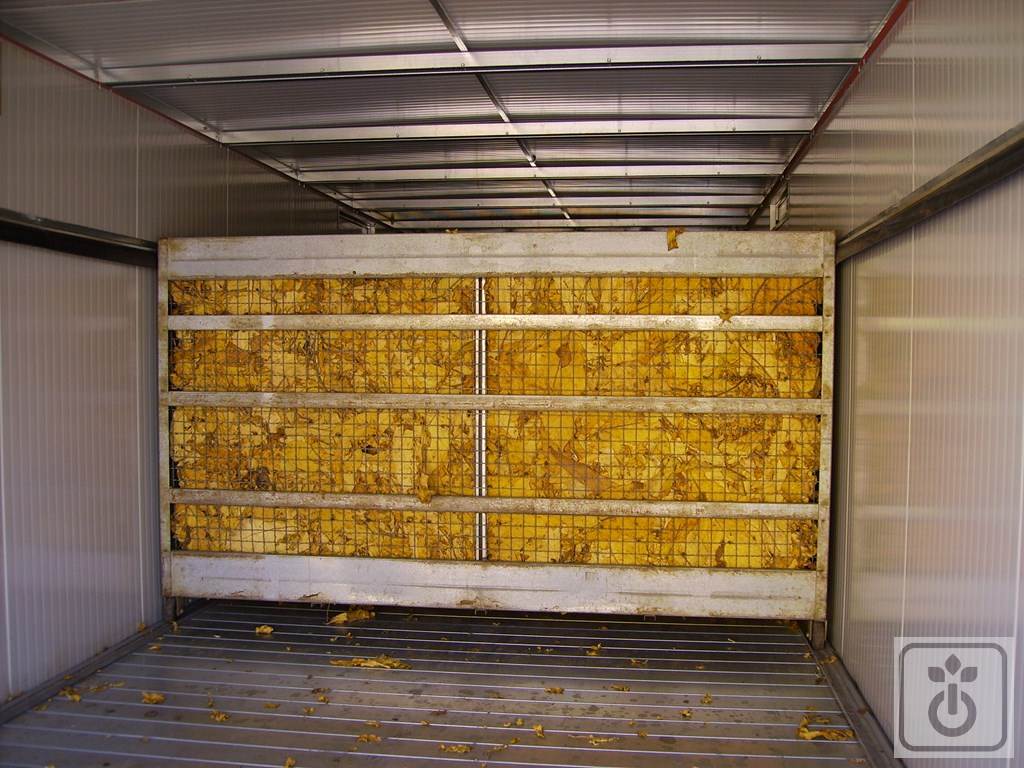

 For both model, in addition, you can choose to equip them with containers (with pins, combs or custom), or with frames (GOME, Court Muller, Long Muller).



The range of GOME dryers for tobacco curing is directed for all tobacco farmers who feel the need to reduce their costs and labor time, increase the quality of their dry tobacco, improve the color, the texture and the flavor.

GOME dryers are synonymous of quality and durability: only the best materials, respect for EU Directives concerning Consumer Protection, Sanitation of the Equipment, the technical requirements of production, allow concrete benefits to who buy a GOME dryer.

Our dryers are been designed for the drying of green tobacco but we are able to realize custom dryers on demand.



Look at the CONTAINERS and FRAMES specially realized for the TOBACCO CURING.

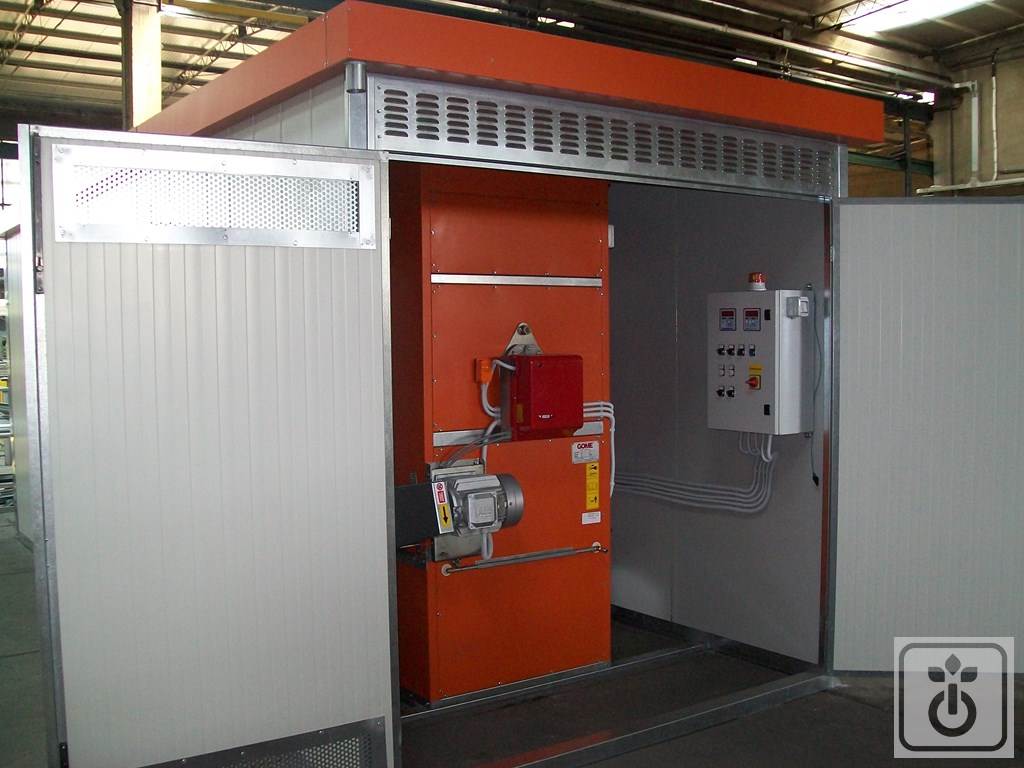

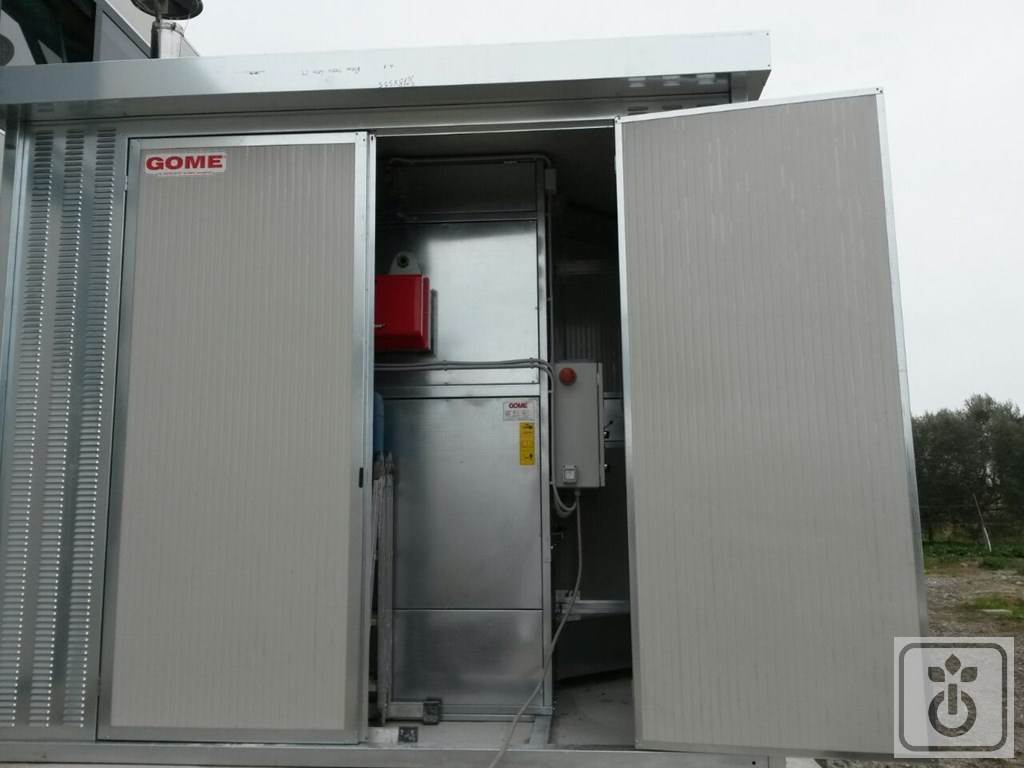

  • Hot air generator with high efficiency exchanger
  • Natural Gas, LPG or Diesel burner by primary national company with electronic flame control
  • 2 gravitional valves for the moisture expulsion

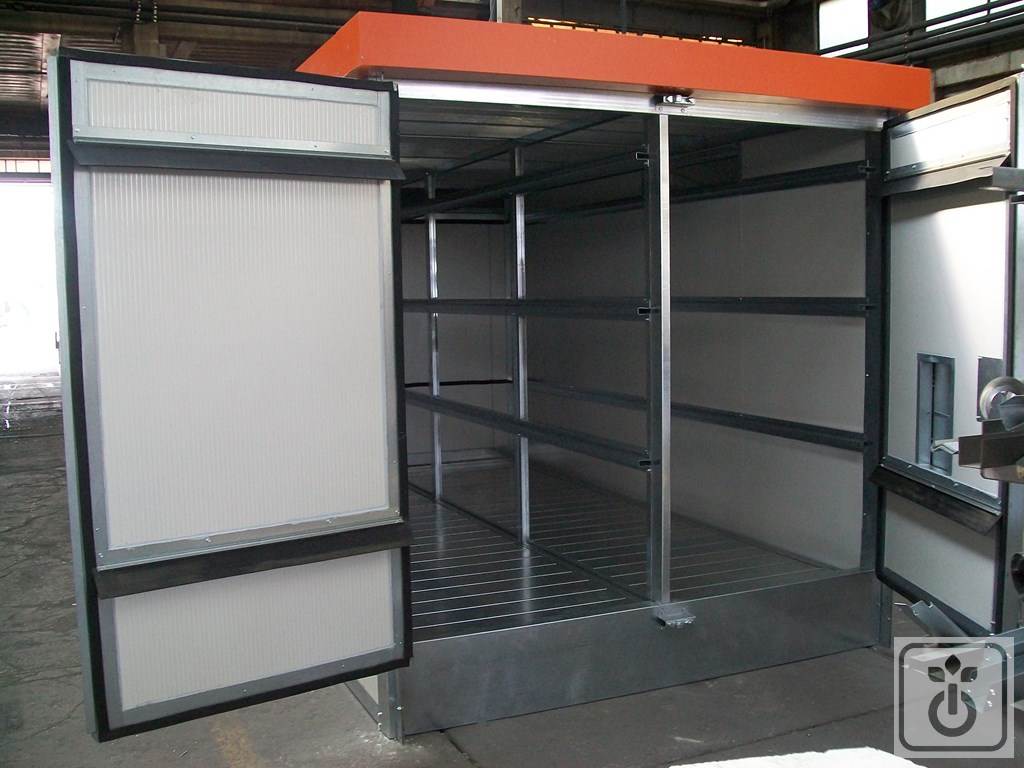

  • Bearing structure made of profiles of Sendzimir galvanized sheet
  • Galvanized thermo-walls and prepainted on the entire perimeter (50 mm thick)
  • Channel of rainwater drainage in galvanized sheet

The dryer STN TABACCO is available in “mounting kit” and is easy to assemble with the instruction manual that comes attached.

Hi Tech Resource manifactures also big PLANTS FOR DRYING TOBACCO powered by WOOD BIOMASS. Look at the relevant page.

Accessories

Tobacco Containers

Tobacco Frames

Electronic Thermostat

Safety bithermostat

Smoke exhaust pipe

Steel Curve


Hi Tech Resource manifactures customized dryers for the tobacco curing
