Dryers - Tobacco - Equipment

Hi Tech re source supports its customers at all stages of the treatment of tobacco supplying machinery for the whole processing chain of tobacco with functioning both manual and automatic.

High performance boiler for tobacco dryers



Request Information




Send
* denotes mandatory field



TAG

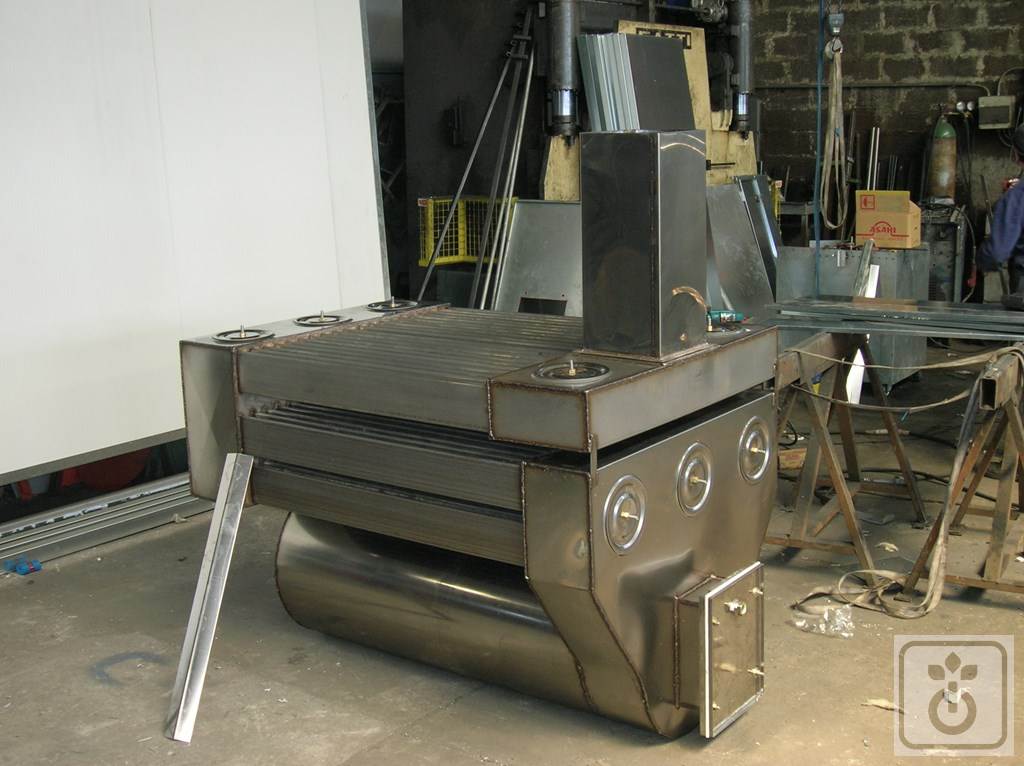

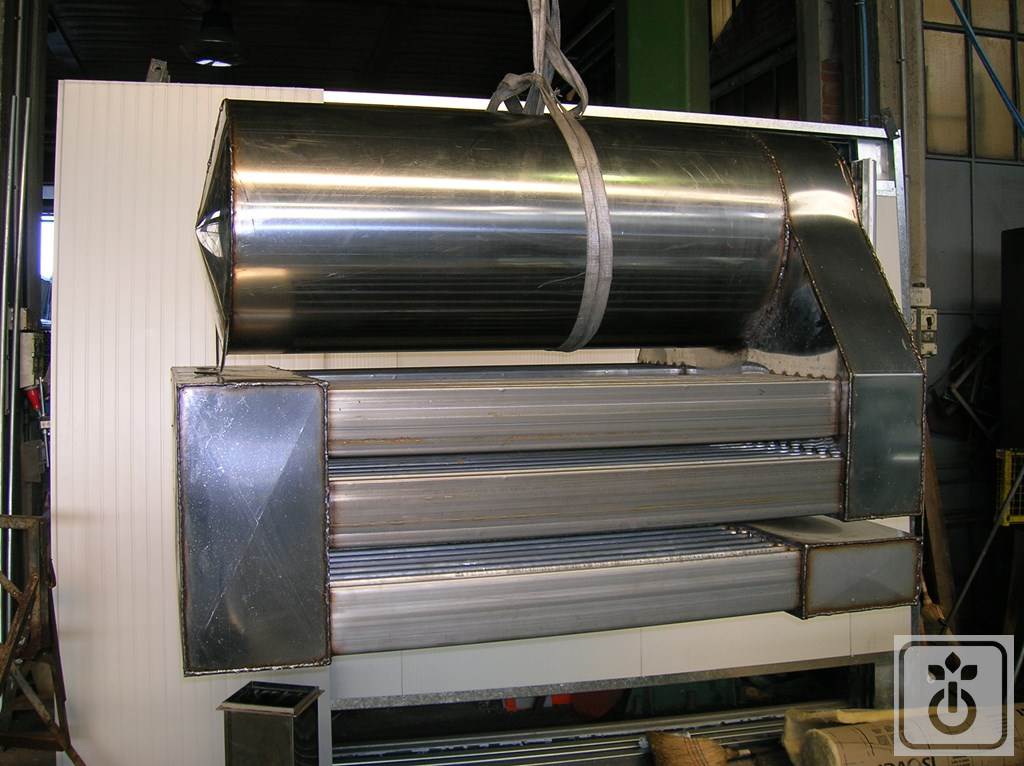

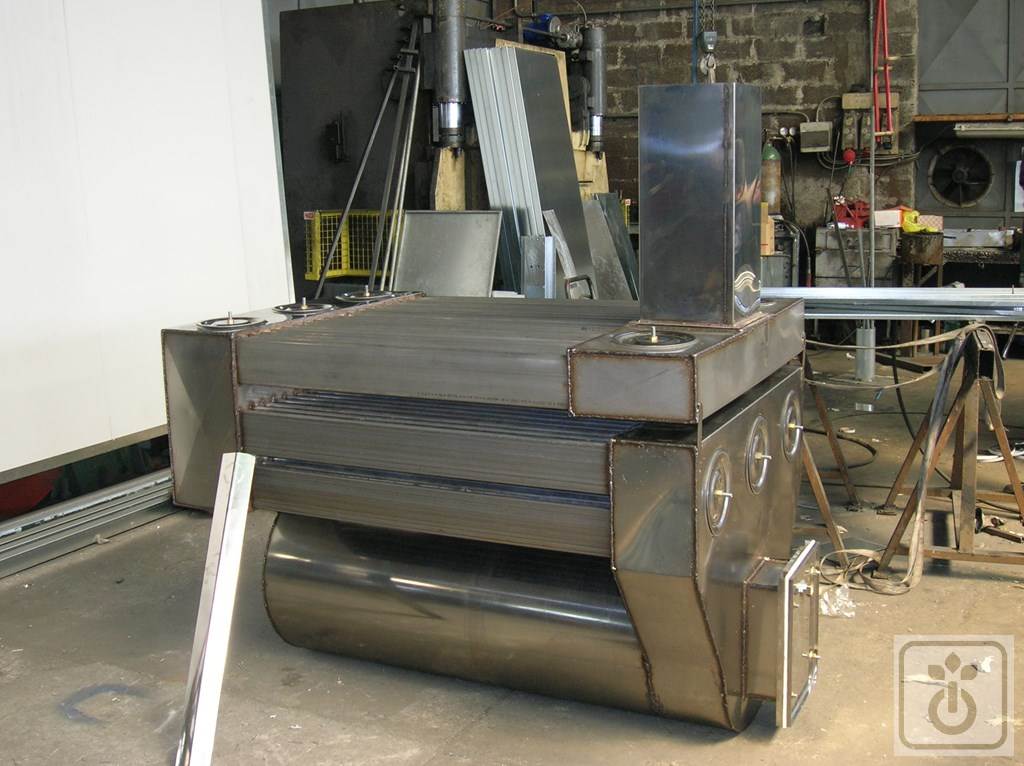

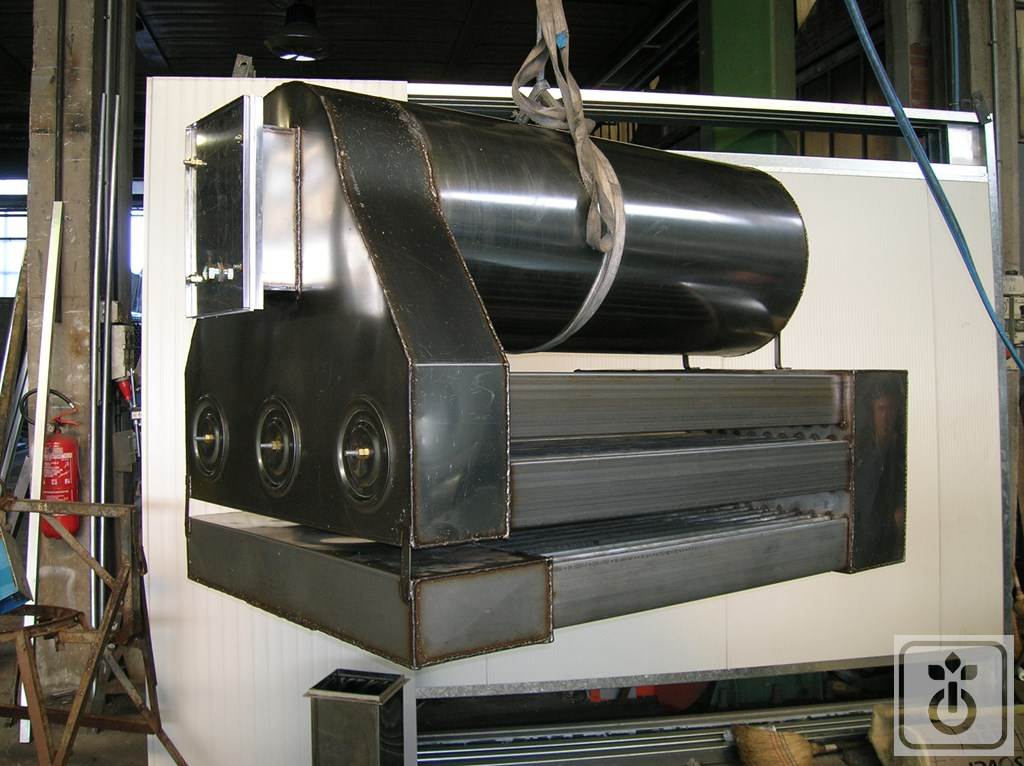

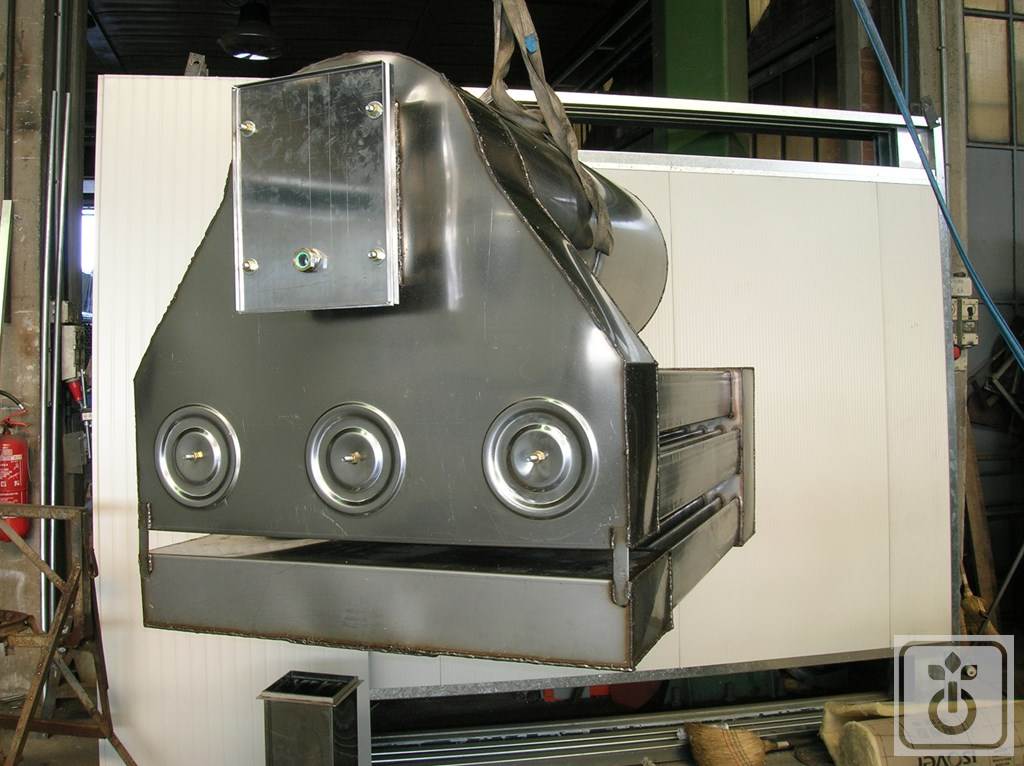

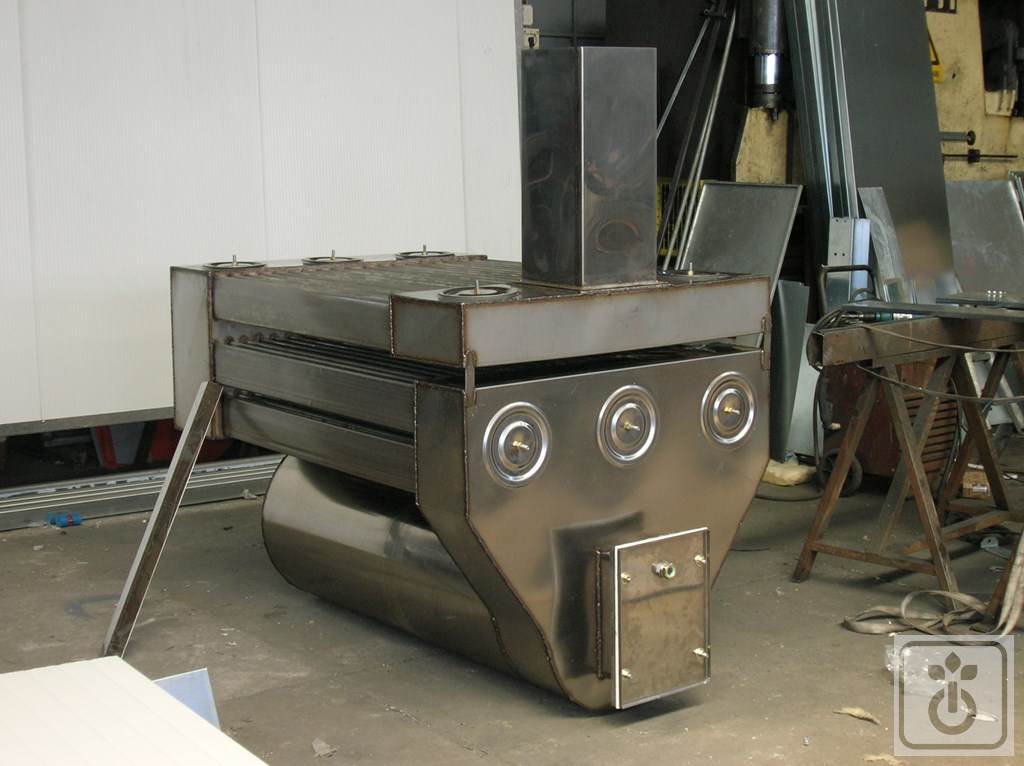

It’s a special boiler with flue gas condensation for tobacco dryers.


  • Product description
  • Specifications

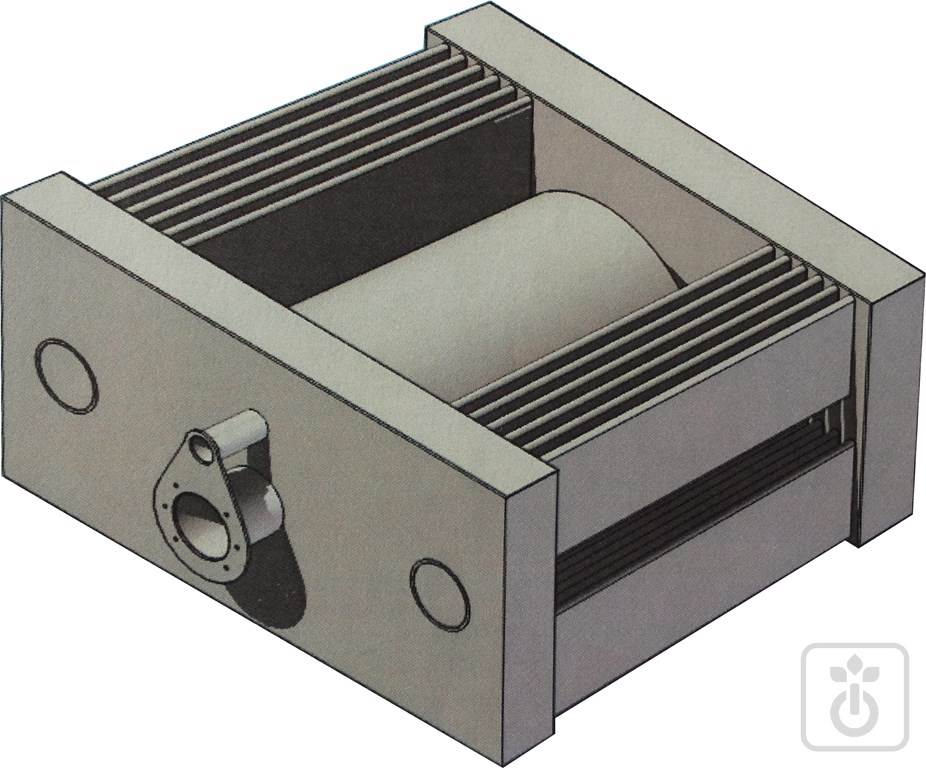

It’s a special boiler with flue gas condensation (according to Directive 92/42 EEC of 21/05/1992 on efficiency requirements for boilers powered by liquid or gaseous fuels) for tobacco dryers. It consists of a tube bundle with rounded very close and significantly higher than the version currently in circulation.

This allows a greater fragmentation of the exhaust gas and a cooling time of 3-4 times higher than the previous version of the boiler made from Hi Tech Resource, thus obtain a saving of fuel estimated between 30 and 40%. On working with gas dryers with indirect flame the verified consumption is equal or even better than those functioning in direct flame. The high efficiency of the new boiler provides the use of special stainless steel, since the temperature of exhaust smoke in output is so low as to cause the condensation of the same and the use of steels so far employed would limit their duration.



  • Combustion chamber in stainless steel, special and with high efficiency, 5 years warranty
  • Fumes collection box with window for cleanings and inspection in stainless steel
  • Radiator core stainless steel AISI 430, consists of N° 26 oval section tubes in stainless steel AISI 430.
  • Supply of the front of the hot air generator in bended galvanized steel insulated with fiberglass complete with door for access and cleaning of the tube bundle
  • Support kit of boiler on the generator in bended galvanized steel
  • Supply of gigler for the burner reduced from the current
  • Stainless steel door for the connection of the burner complete of window for inspection of the flame
