Hi Tech re source supports its customers at all stages of the treatment of tobacco supplying machinery for the whole processing chain of tobacco with functioning both manual and automatic.
Request Information
TAG

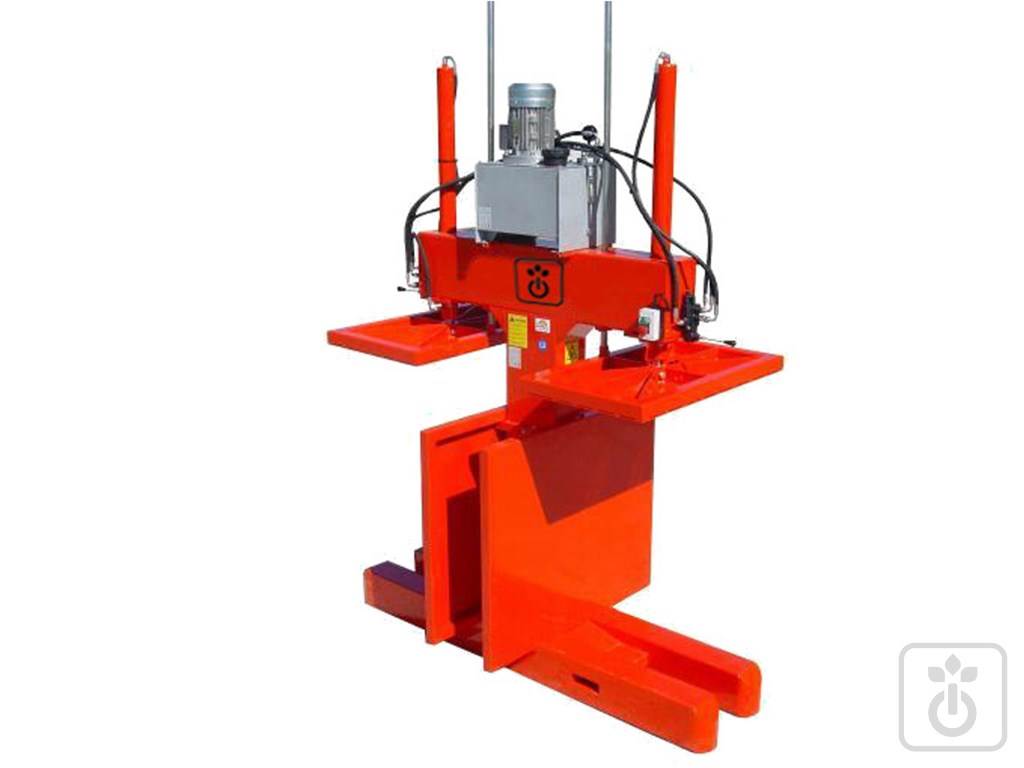

Automatic press for the compression for the dry tobacco inside the cartons at 1 or 2 workstations.
The tobacco leaves after having been selected are deposited in suitable cartons for the packaging. The press is a machine which serves to compress the leaves inside the carton so as to reduce the volume and to increase the amount. This process allows to reduce the number of cartons to be packaged and therefore, the shipping costs.
The press has one or two independent workstations, and its operational functions are electrically controlled and are hydraulically actuated. Use at the same time two workstations significantly reduces packaging time.
The press for dry tobacco consists of the following major components:
1. Pressing trays
2. Control levers
3. Electric motor
4. Idraulic tank
5. Control panel
The technical data are summarized in the following table:
Dati tecnici
PT001 (1 postazione lavoro)
PT002 (2 postazioni lavoro)
Dimensione(lun. x lar. x alt.) (cm)
110x120x270
190x120x270
Alimentazione elettrica (volt)
Trifase 380
Trifase 680
Motore elettrico (kw)
3
Serbatoio idraulico (lt)
40
Peso (kg)
350
600
Accessories
Tobacco Containers
Tobacco Frames
The implant provides the necessary heat to the dryers by means of a thermal power plant with wood chip boiler to fulfill the cure of tobacco leaves.
The dryer ETN TABACCO by traditional fuel is of multiple type, useful for those who have to dry large quantities of tobacco.
The dryer ATSS BIO TABACCO is powered woody biomass and is characterized by the functioning with input hot air in the cell with double flow.
The tape loader for green tobacco is a valuable accessory for automating the upload of green tobacco in the containers.
The seedbed has been designed specifically for the cultivating of seedlings of tobacco.
Machinery for automation of the attachment of green tobacco inside the containers
Special pump on wheels for tempering the tobacco
The sorting belt for the dried tobacco is employed after the drying process of the tobacco.
It’s a special boiler with flue gas condensation for tobacco dryers.
