Dryers - Tobacco - Equipment

Hi Tech re source supports its customers at all stages of the treatment of tobacco supplying machinery for the whole processing chain of tobacco with functioning both manual and automatic.

Special high pressure pump on wheels



Request Information




Send
* denotes mandatory field



TAG

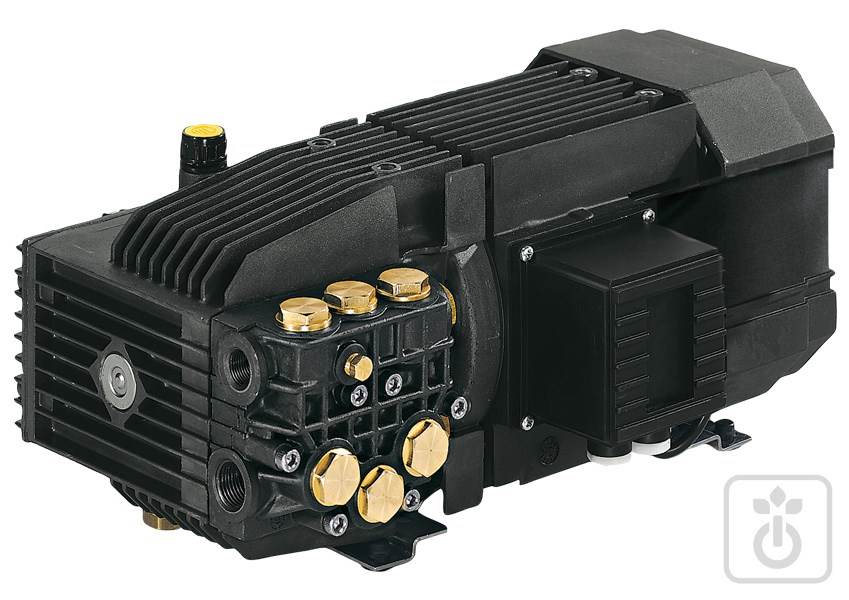

Special pump on wheels for tempering the tobacco


  • Product description
  • Specifications

Special pump on wheels for tempering the tobacco with a capacity of 10-12 lt per minute and with adjustable pressure from 40-50 up to a maximum of 130 atmosphere and accompanied by 10 mt of rubber hose to be connected by quick coupling to the drier.

Details

Value

Family-IT

Special pump with high pressure

Series

126-HPE

Pump Type

HPE 8.12 A

Versioning

ET

ARCode

8608

Output (lt/min)

8

Output (gpm)

2.11

Pressione (bar)

120

Pressione (psi)

1740

Potenza (hp)

2.5

Potenza (kw)

1.8

RPM (giri/min)

1450

Peso (kg)

19.2
